Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
159ZAFIXED IND 300MH 1A 6OHM CHAS MNT Hammond Manufacturing |
11 |
|
Datasheet
|
159 | Nonstandard | Bulk | Active | - | - | 300 mH | ±15% | 1 A | - | Unshielded | 6Ohm | - | - | - | - | - | - | Chassis Mount | - | 4.030" L x 2.250" W (102.36mm x 57.15mm) | 2.630" (66.80mm) |
|
193TFIXED IND 50MH 2A 700 MOHM CHASS Hammond Manufacturing |
11 |
|
Datasheet
|
193 | Nonstandard, 2 Lead | Bulk | Active | Wirewound | - | 50 mH | ±15% | 2 A | - | Unshielded | 700mOhm | - | - | - | -40°C ~ 65°C | - | - | Chassis Mount | - | 2.750" L x 2.500" W (69.85mm x 63.50mm) | 3.125" (79.38mm) |
|
|
193DFIXED IND 8H 150MA 75 OHM CHASS Hammond Manufacturing |
4 |
|
Datasheet
|
193 | Nonstandard, 2 Lead | Bulk | Active | Wirewound | - | 8 H | ±15% | 150 mA | - | Unshielded | 75Ohm | - | - | - | -40°C ~ 65°C | - | - | Chassis Mount | - | 3.250" L x 2.500" W (82.55mm x 63.50mm) | 3.125" (79.38mm) |
|

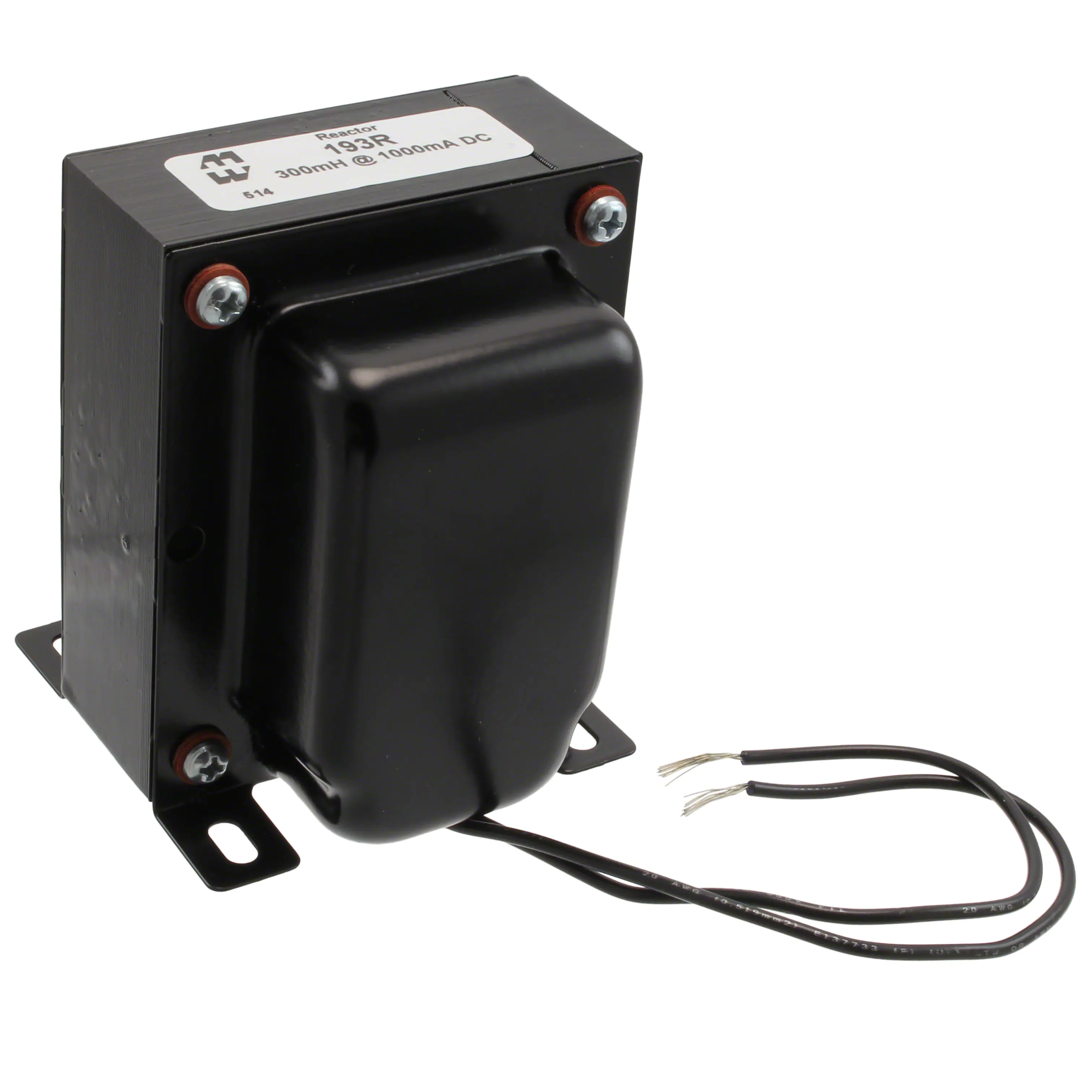

193RFIXED IND 300MH 1A 3.5 OHM CHASS Hammond Manufacturing |
6 |
|
Datasheet
|
193 | Nonstandard, 2 Lead | Bulk | Active | Wirewound | - | 300 mH | ±15% | 1 A | - | Unshielded | 3.5Ohm | - | - | - | -40°C ~ 65°C | - | - | Chassis Mount | - | 3.500" L x 3.130" W (88.90mm x 79.50mm) | 3.810" (96.77mm) |
|

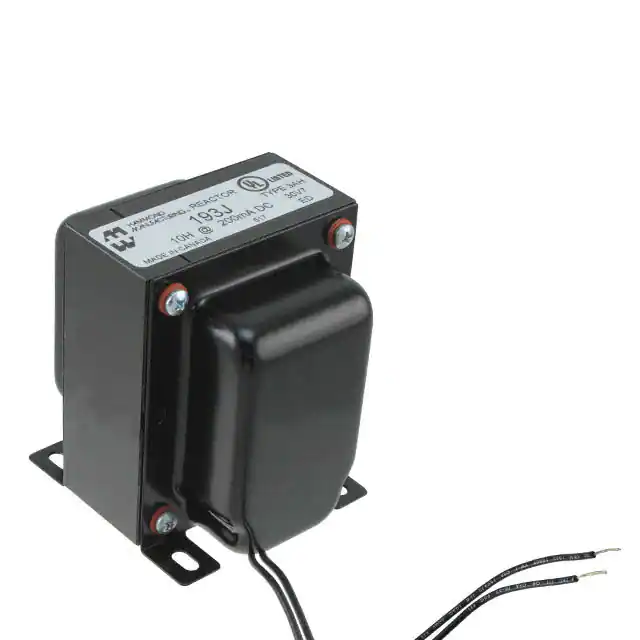

193JFIXED IND 10H 200MA 82 OHM CHASS Hammond Manufacturing |
6 |
|
Datasheet
|
193 | Nonstandard, 2 Lead | Bulk | Active | Wirewound | - | 10 H | ±15% | 200 mA | - | Unshielded | 82Ohm | - | - | - | -40°C ~ 65°C | - | - | Chassis Mount | - | 3.750" L x 3.130" W (95.25mm x 79.50mm) | 3.810" (96.77mm) |
|
195C30FIXED IND 1MH 30A 9MOHM CHAS MNT Hammond Manufacturing |
18 |
|
Datasheet
|
195 | Nonstandard | Bulk | Active | - | - | 1 mH | ±15% | 30 A | - | Unshielded | 9mOhm | - | - | - | - | - | - | Chassis Mount | - | 3.750" L x 3.850" W (95.25mm x 97.79mm) | 3.130" (79.50mm) |
|
|
193SFIXED IND 1H 1A 5.75OHM CHAS MNT Hammond Manufacturing |
4 |
|
Datasheet
|
193 | Nonstandard, 2 Lead | Bulk | Active | Wirewound | - | 1 H | ±15% | 1 A | - | Unshielded | 5.75Ohm | - | - | - | -40°C ~ 65°C | - | - | Chassis Mount | - | 4.000" L x 3.750" W (101.60mm x 95.25mm) | 4.560" (115.82mm) |
|
|
195M10FIXED IND 20MH 10A 13 MOHM CHASS Hammond Manufacturing |
8 |
|
Datasheet
|
195 | Nonstandard | Bulk | Active | - | - | 20 mH | ±15% | 10 A | - | Unshielded | 13mOhm | - | - | - | - | - | - | Chassis Mount | - | 4.500" L x 4.750" W (114.30mm x 120.65mm) | 3.750" (95.25mm) |
|
|
195P10FIXED IND 30MH 10A 170 MOHM CHAS Hammond Manufacturing |
7 |
|
Datasheet
|
195 | Nonstandard | Bulk | Active | - | - | 30 mH | ±15% | 10 A | - | Unshielded | 170mOhm | - | - | - | - | - | - | Chassis Mount | - | 4.500" L x 5.250" W (114.30mm x 133.35mm) | 3.750" (95.25mm) |
|
|
193QFIXED IND 10H 500MA 53 OHM CHASS Hammond Manufacturing |
5 |
|
Datasheet
|
193 | Nonstandard, 2 Lead | Bulk | Active | Wirewound | - | 10 H | ±15% | 500 mA | - | Unshielded | 53Ohm | - | - | - | -40°C ~ 65°C | - | - | Chassis Mount | - | 5.500" L x 3.750" W (139.70mm x 95.25mm) | 4.560" (115.82mm) |
