Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1536WFIXED IND 125UH 3.5A 80 MOHM TH Hammond Manufacturing |
427 |
|
Datasheet
|
1536 | Axial | Bulk | Active | Drum Core, Wirewound | Iron Powder | 125 µH | ±20% | 3.5 A | - | Unshielded | 80mOhm | - | 2.65MHz | - | - | 1 kHz | - | Through Hole | - | 0.500" Dia x 1.250" L (12.70mm x 31.75mm) | - |
|
1532CFIXED IND 24UH 800MA 340 MOHM TH Hammond Manufacturing |
119 |
|
Datasheet
|
1532 | Axial | Bulk | Active | Wirewound | - | 24 µH | ±10% | 800 mA | - | Unshielded | 340mOhm Max | 65 @ 2.5MHz | 25MHz | - | - | 2.5 MHz | - | Through Hole | - | 0.290" Dia x 0.875" L (7.37mm x 22.22mm) | - |
|
|
1536XFIXED IND 250UH 2.5A 170 MOHM TH Hammond Manufacturing |
2,704 |
|
Datasheet
|
1536 | Axial | Bulk | Active | Drum Core, Wirewound | Iron Powder | 250 µH | ±20% | 2.5 A | - | Unshielded | 170mOhm | - | 1.5MHz | - | - | 1 kHz | - | Through Hole | - | 0.430" Dia x 1.250" L (10.92mm x 31.75mm) | - |
|

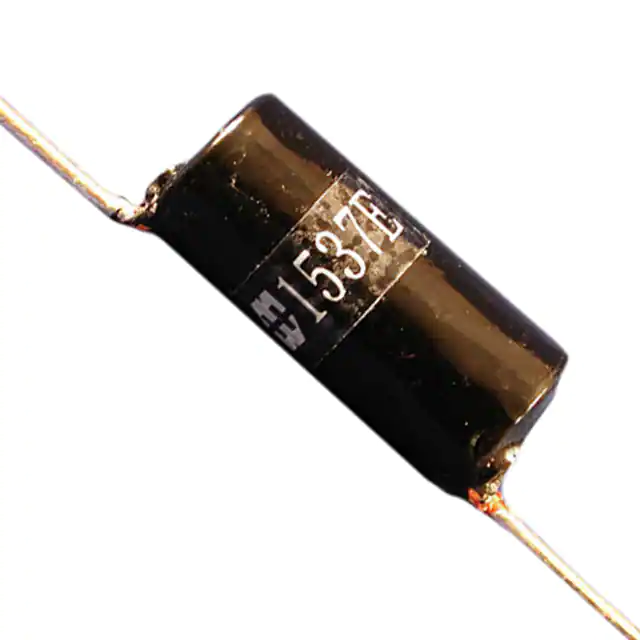

1537EFIXED IND 10UH 20A 6 MOHM TH Hammond Manufacturing |
587 |
|
Datasheet
|
1537 | Axial | Bulk | Active | Molded | Ferrite | 10 µH | ±5% | 20 A | - | Unshielded | 6mOhm | - | - | - | - | 1 kHz | - | Through Hole | - | 0.630" Dia x 1.250" L (16.00mm x 31.75mm) | - |
|

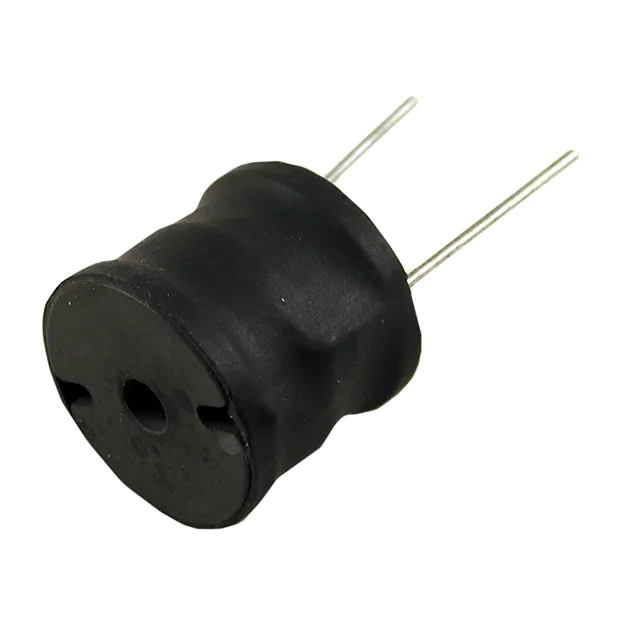

1539M03FIXED IND 25UH 8A 23 MOHM TH Hammond Manufacturing |
490 |
|
Datasheet
|
1539 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 25 µH | ±10% | 8 A | - | Unshielded | 23mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.830" Dia (21.08mm) | 0.910" (23.11mm) |
|

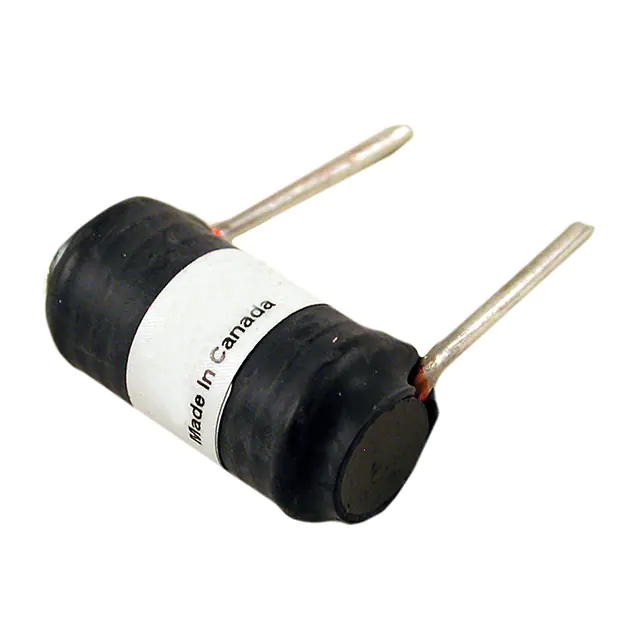

1538M11FIXED IND 50UH 8A 28 MOHM TH Hammond Manufacturing |
152 |
|
Datasheet
|
1538 | Radial, Horizontal Cylinder | Bulk | Active | Wirewound | - | 50 µH | ±10% | 8 A | - | Unshielded | 28mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.880" Dia x 1.120" L (22.35mm x 28.45mm) | - |
|
|
1538M02FIXED IND 10UH 9A 17 MOHM TH Hammond Manufacturing |
141 |
|
Datasheet
|
1538 | Radial, Horizontal Cylinder | Bulk | Active | Wirewound | - | 10 µH | ±10% | 9 A | - | Unshielded | 17mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.630" Dia x 1.120" L (16.00mm x 28.45mm) | - |
|
159YFIXED IND 600MH 750MA 11 OHM Hammond Manufacturing |
28 |
|
Datasheet
|
159 | Nonstandard | Bulk | Active | - | - | 600 mH | ±15% | 750 mA | - | Unshielded | 11Ohm | - | - | - | - | - | - | Chassis Mount | - | 4.030" L x 2.250" W (102.36mm x 57.15mm) | 2.630" (66.80mm) |
|
|
159ZLFIXED IND 2.5MH 10A 44 MOHM CHAS Hammond Manufacturing |
48 |
|
Datasheet
|
159 | Nonstandard | Bulk | Active | - | - | 2.5 mH | ±15% | 10 A | - | Unshielded | 44mOhm | - | - | - | - | - | - | Chassis Mount | - | 4.030" L x 2.250" W (102.36mm x 57.15mm) | 2.630" (66.80mm) |
|

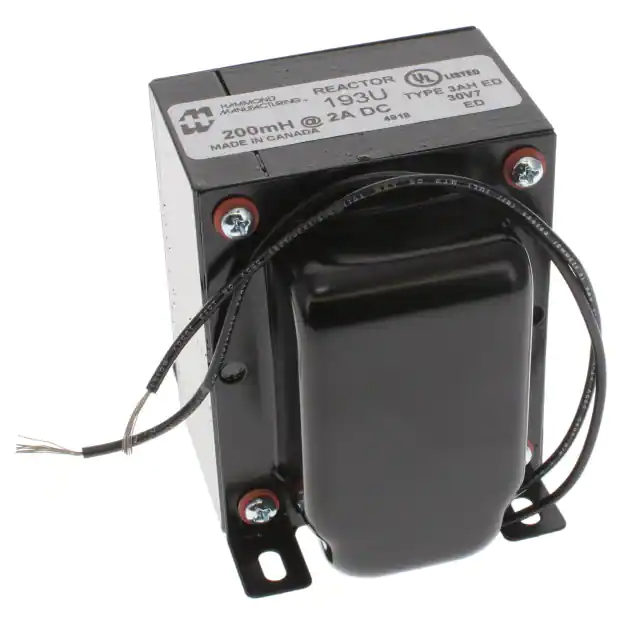

193UFIXED IND 200MH 2A 1.7 OHM CHASS Hammond Manufacturing |
20 |
|
Datasheet
|
193 | Nonstandard, 2 Lead | Bulk | Active | Wirewound | - | 200 mH | ±15% | 2 A | - | Unshielded | 1.7Ohm | - | - | - | -40°C ~ 65°C | - | - | Chassis Mount | - | 4.250" L x 3.130" W (107.95mm x 79.50mm) | 3.810" (96.77mm) |
