Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AEDR-8712-102ROTARY ENCODER OPTICAL PROG Broadcom Limited |
1,126 |
|
Datasheet
|
AEDR | Tape & Reel (TR) | Active | Not Verified | Optical | Digital | Programmable | 3.3V, 5V | Codewheel Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | - | - |
|

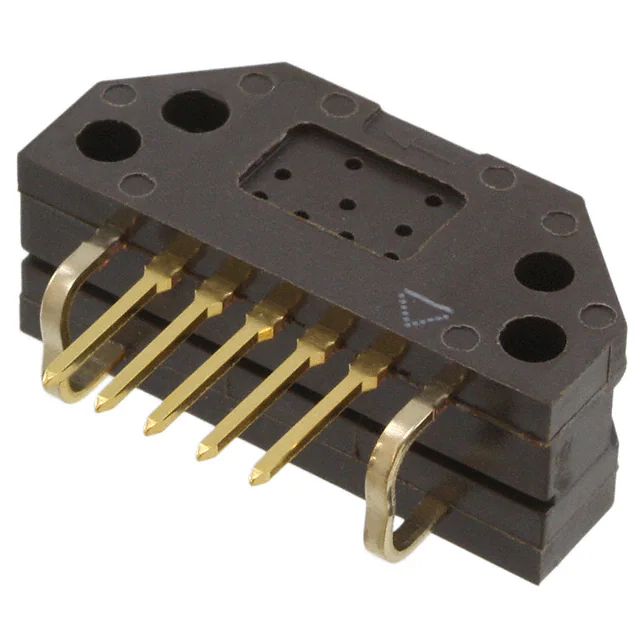

HEDS-9100#F00ROTARY ENCODER OPTICAL 256PPR Broadcom Limited |
218 |
|
Datasheet
|
HEDS | Tube | Active | Not Verified | Optical | Quadrature (Incremental) | 256 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|

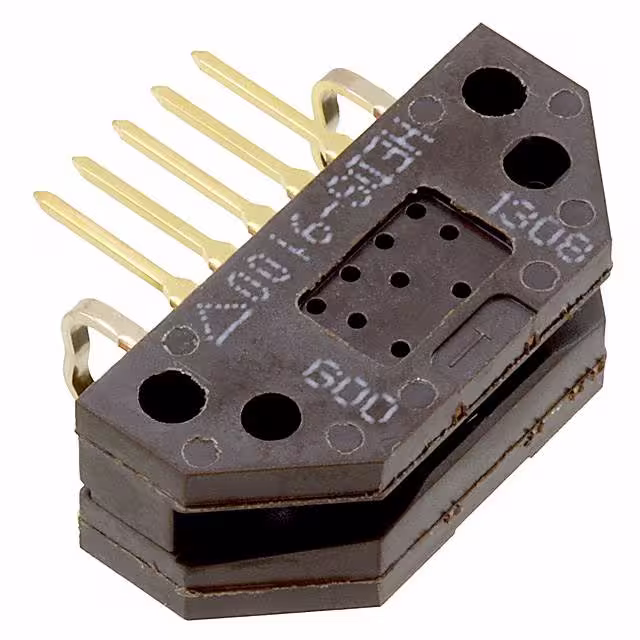

HEDS-9100#G00ROTARY ENCODER OPTICAL 360PPR Broadcom Limited |
199 |
|
Datasheet
|
HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 360 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|

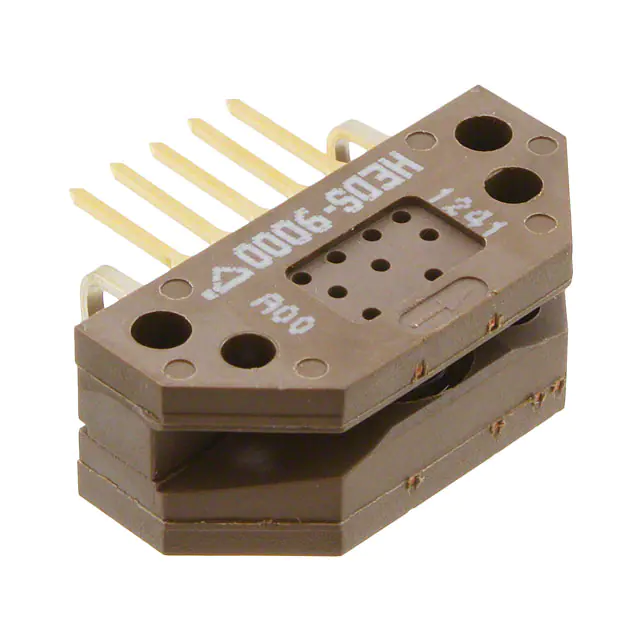

HEDS-9000#A00ROTARY ENCODER OPTICAL 500PPR Broadcom Limited |
198 |
|
Datasheet
|
HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 500 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|

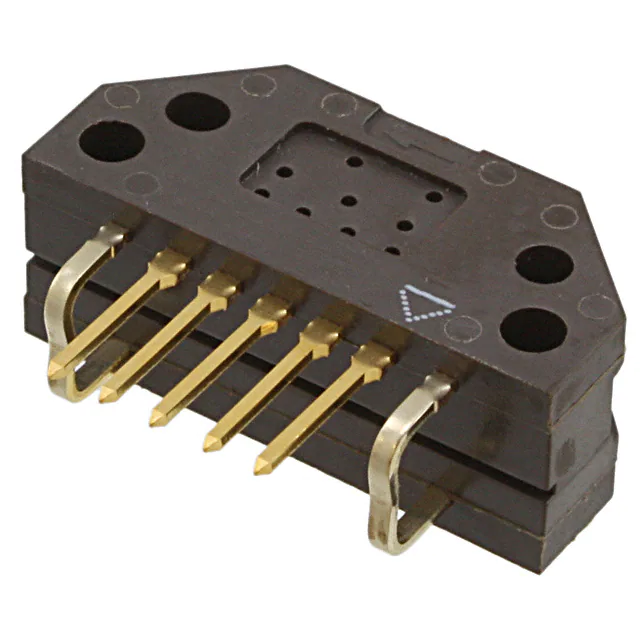

HEDS-9000#B00ROTARY ENCODER OPTICAL 1000PPR Broadcom Limited |
176 |
|
Datasheet
|
HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 1000 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|

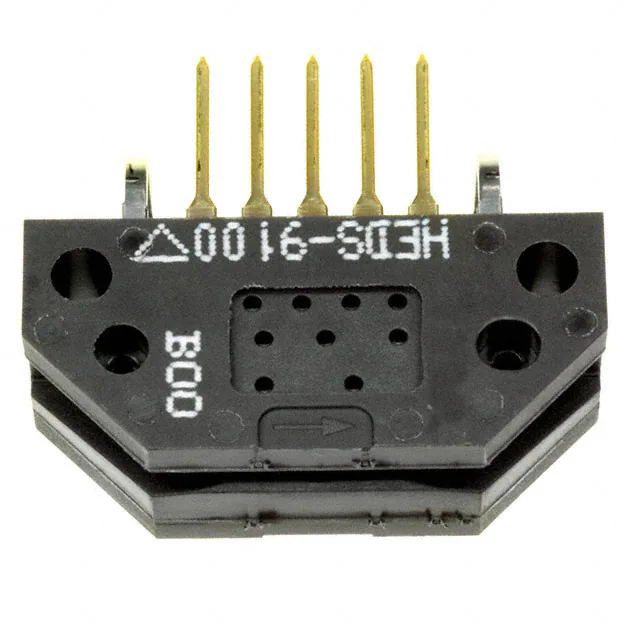

HEDS-9100#B00ROTARY ENCODER OPTICAL 1000PPR Broadcom Limited |
984 |
|
Datasheet
|
HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 1000 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|
HEDR-5421-EP111ROTARY ENCODER OPTICAL 200PPR Broadcom Limited |
1,178 |
|
Datasheet
|
HEDR | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 200 | 5V | 4mm Open Center | No | No | Chassis Mount, Motors | Right Angle | Terminal Pins | - | - | - |
|

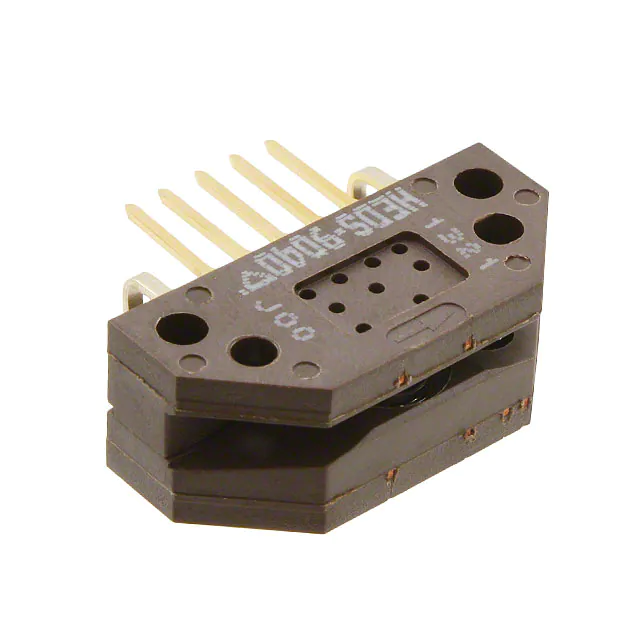

HEDS-9040#J00ROTARY ENCODER OPTICAL 1024PPR Broadcom Limited |
352 |
|
Datasheet
|
HEDS | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 1024 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|
AEAT-6010-A06ROTARY ENCODER MAGNETIC 1024PPR Broadcom Limited |
554 |
|
Datasheet
|
AEAT-60xx | Bulk | Active | Not Verified | Magnetic | Binary (Absolute) | 1024 | 5V | 6mm Dia Round End | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|
HEDS-5505#A14ROTARY ENCODER OPTICAL 500PPR Broadcom Limited |
319 |
|
Datasheet
|
HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 500 | 5V | 5mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
