Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AEDR-9820-102ENCODER 225LPI, REEL 100PC Broadcom Limited |
230 |
|
Datasheet
|
AEDR | Tape & Reel (TR) | Active | Not Verified | Optical | Digital | Programmable | 3.3V, 5V | Codewheel Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | - | - |
|

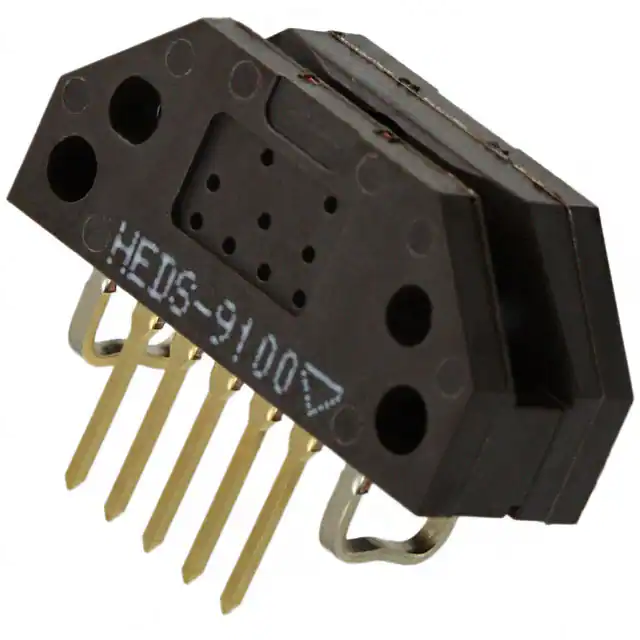

HEDS-9100#C00ROTARY ENCODER OPTICAL 100PPR Broadcom Limited |
363 |
|
Datasheet
|
HEDS | Tube | Active | Not Verified | Optical | Quadrature (Incremental) | 100 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|

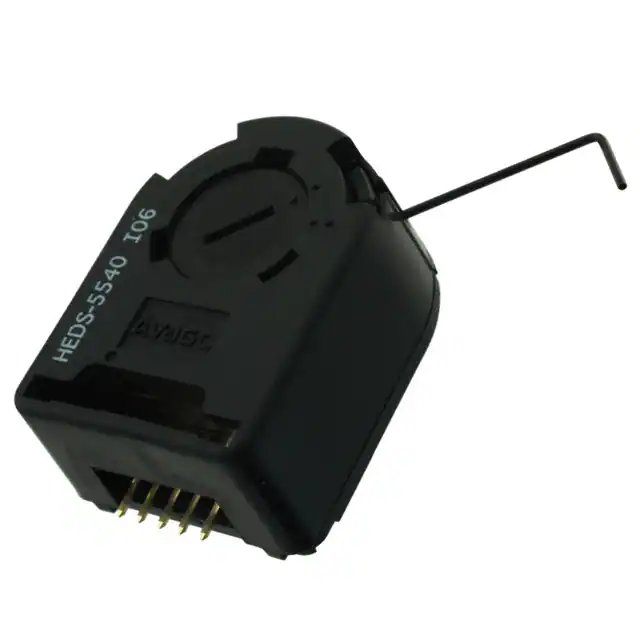

HEDS-5540#I06ROTARY ENCODER OPTICAL 512PPR Broadcom Limited |
47 |
|
Datasheet
|
HEDS | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 512 | 5V | 1/4" Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
HRPG-ASCA#19FROTARY ENCODER OPTICAL 120PPR Broadcom Limited |
110 |
|
Datasheet
|
HRPG | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 120 | 5V | 1/4" Dia Flatted End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|

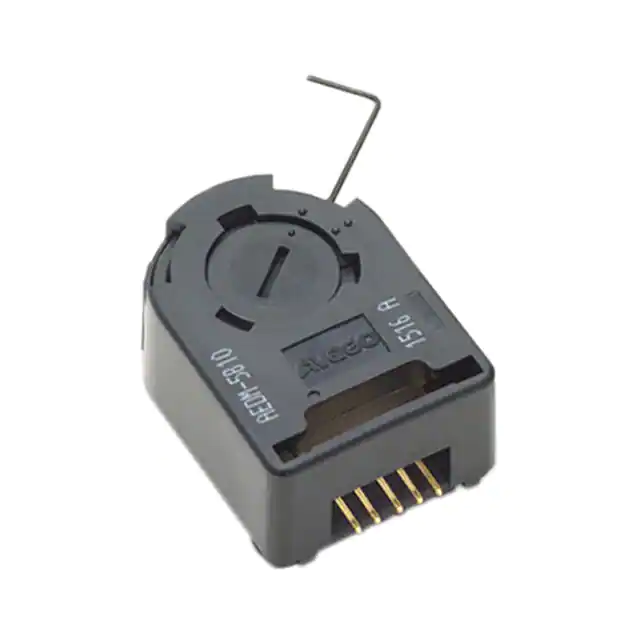

AEDM-5810-Z12ROTARY ENCODER OPTICAL 5000PPR Broadcom Limited |
153 |
|
Datasheet
|
- | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 5000 | 4.5V ~ 5.5V | Hole for Shaft | No | No | Chassis Mount, Motors | Right Angle | Terminal Pins | - | - | - |
|

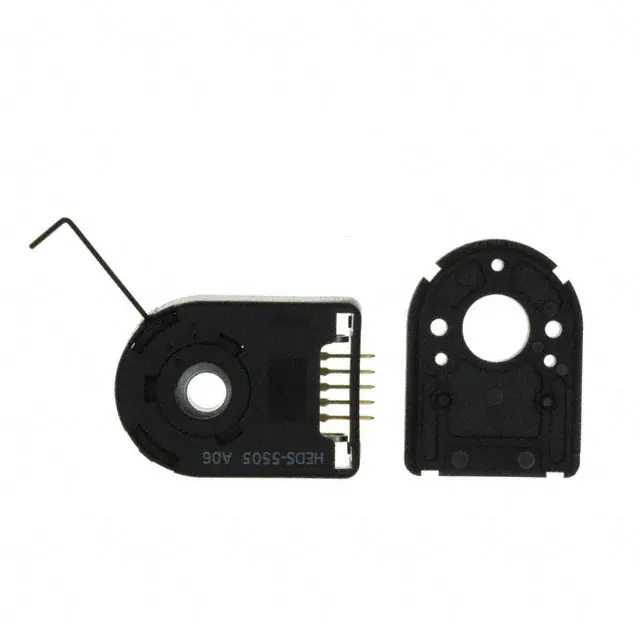

HEDS-5505#A06ROTARY ENCODER OPTICAL 500PPR Broadcom Limited |
119 |
|
Datasheet
|
HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 500 | 5V | 1/4" Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
HEDS-5640#A06ROTARY ENCODER OPTICAL 500PPR Broadcom Limited |
94 |
|
Datasheet
|
HEDS | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 500 | 5V | 1/4" Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
|
AS20-M42M-P1120MM KITS 42B MT 5V 4MM SPI 4W Broadcom Limited |
105 |
|
Datasheet
|
AS20 | Bulk | Active | - | Absolute, Magnetic | - | - | 4.5V ~ 5.5V | Hole for Shaft | No | Yes | Chassis Mount | Vertical | Connector | - | - | - |
|
|
AS20-M42M-S1120MM KITS 42B MT 5V 4MM SSI 2W Broadcom Limited |
94 |
|
Datasheet
|
AS20 | Bulk | Active | - | Absolute, Magnetic | - | - | 4.5V ~ 5.5V | Hole for Shaft | No | Yes | Chassis Mount | Vertical | Connector | - | - | - |
|

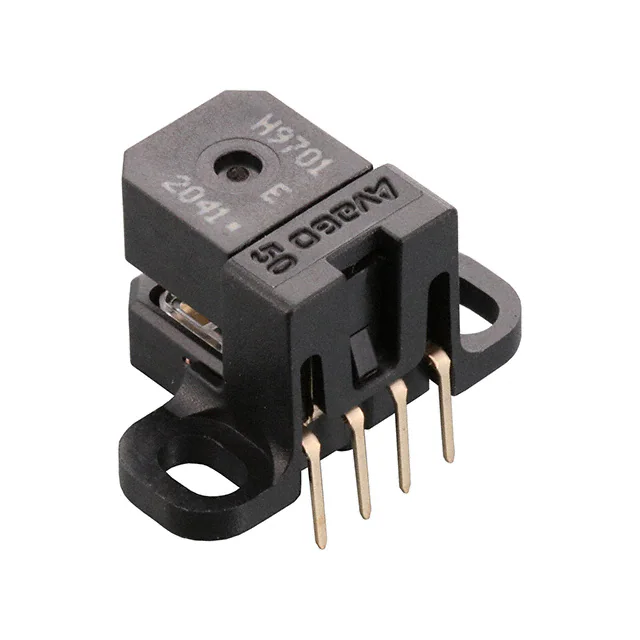

HEDS-9701-E50SMALL EN,2CH,200CPR,BT LDS,STD Broadcom Limited |
963 |
|
Datasheet
|
HEDS | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 200 | 4.5V ~ 5.5V | Codewheel Not Included | No | No | Chassis Mount, Motors | Right Angle | Terminal Pins | - | - | - |
