Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AEDR-8723-102ROTARY ENCODER OPTICAL Broadcom Limited |
4,149 |
|
Datasheet
|
AEDR | Tape & Reel (TR) | Active | Not Verified | Optical | Differential Voltage | - | 4.5V ~ 5.5V | Codewheel Not Included | No | No | Surface Mount | - | Surface Mount (SMD,SMT) | - | - | - |
|
HEDS-9140#A00ROTARY ENCODER OPTICAL 500PPR Broadcom Limited |
244 |
|
Datasheet
|
HEDS | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 500 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|
HEDS-9140#G00ROTARY ENCODER OPTICAL 360PPR Broadcom Limited |
576 |
|
Datasheet
|
HEDS | Tube | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 360 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|
AEAT-9012-S06ROTARY ENCODER MAGNETIC 4096PPR Broadcom Limited |
455 |
|
- |
- | Bulk | Active | - | Absolute | Digital | - | - | 6mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
HRPG-ASCA#14RROTARY ENCODER OPTICAL 120PPR Broadcom Limited |
436 |
|
Datasheet
|
HRPG | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 120 | 5V | 1/4" Dia Round End | No | No | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|

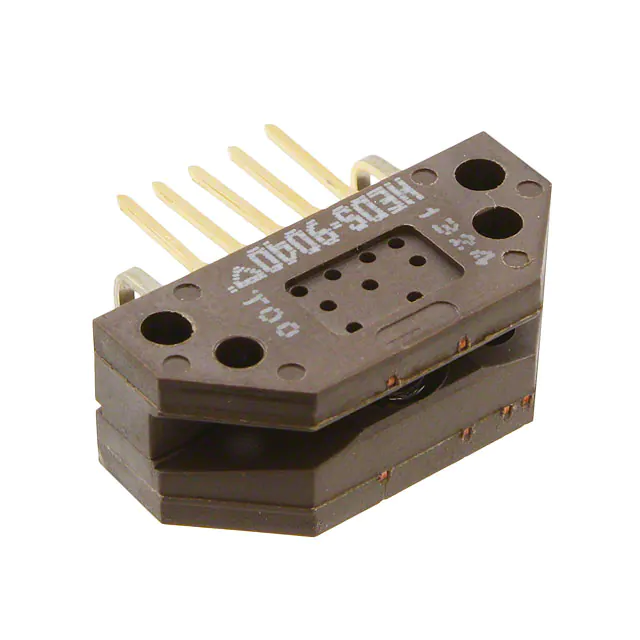

HEDS-9040#T00ROTARY ENCODER OPTICAL 2000PPR Broadcom Limited |
447 |
|
Datasheet
|
HEDS | Tray | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 2000 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|
HRPG-ASCA#16RROTARY ENCODER OPTICAL 120PPR Broadcom Limited |
527 |
|
Datasheet
|
HRPG | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 120 | 5V | 1/4" Dia Flatted End | No | No | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|
HEDS-5600#C06ROTARY ENCODER OPTICAL 100PPR Broadcom Limited |
140 |
|
Datasheet
|
HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 100 | 5V | 1/4" Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|

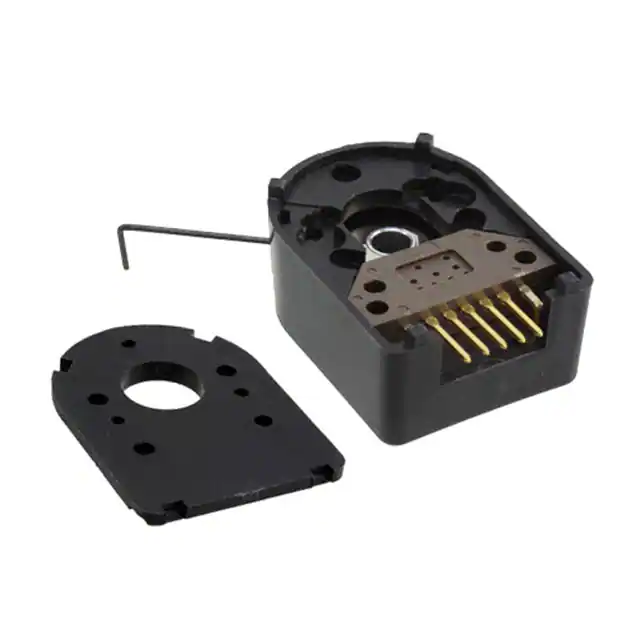

HEDS-5500#A14ROTARY ENCODER OPTICAL 500PPR Broadcom Limited |
129 |
|
Datasheet
|
HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 500 | 5V | 5mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
HEDS-5600#A13ROTARY ENCODER OPTICAL 500PPR Broadcom Limited |
102 |
|
Datasheet
|
HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 500 | 5V | 8mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
