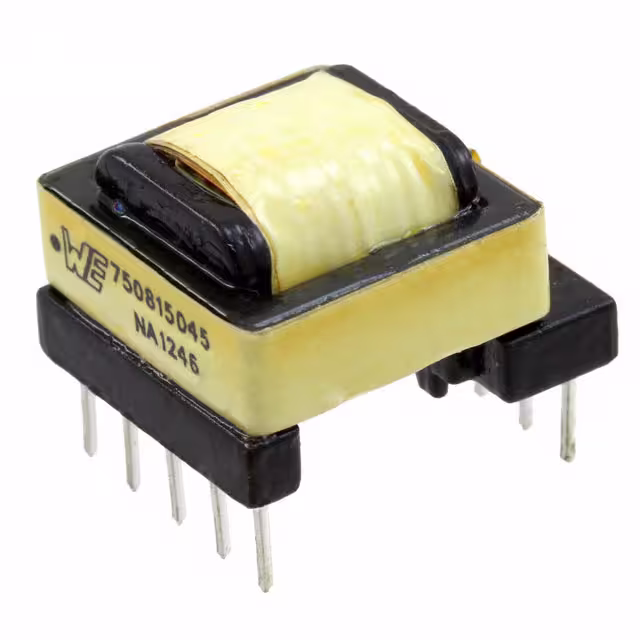

Würth Elektronik 750815045
- Part No.:
- 750815045
- Manufacturer:
- Würth Elektronik
- Category:
- Switching Converter, SMPS Transformers
- Package:
- Description:
- XFMR LED DR AC/DC CONV 3.45MH TH
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
750815045 Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Würth Elektronik
- Series:
- WE-UNIT
- Packaging:
- Tray
- Product Status:
- Obsolete
- Type:
- For AC/DC Converters
- Applications:
- LED Drivers, AC/DC SMPS
- Intended Chipset:
- LM3448
- Chipset Manufacturer:
- Texas Instruments
- Voltage - Primary:
- 250 ~ 375V
- Voltage - Auxiliary:
- -
- Voltage - Isolation:
- 4500Vrms
- Inductance @ Frequency:
- 3.45mH @ 10kHz
- Frequency:
- 72kHz
- Operating Temperature:
- -
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Through Hole
- Size / Dimension:
- 0.665" L x 0.740" W (16.90mm x 18.80mm)
- Height - Seated (Max):
- 0.529" (13.44mm)
- Footprint:
- 0.665" L x 0.740" W (16.90mm x 18.80mm)
- Style:
- -
| Image |  |
| Part Number | 750815045 |
| Manufacturer | Würth Elektronik |
| Series | WE-UNIT |
| Packaging | Tray |
| Product Status | Obsolete |
| Type | For AC/DC Converters |
| Applications | LED Drivers, AC/DC SMPS |
| Intended Chipset | LM3448 |
| Chipset Manufacturer | Texas Instruments |
| Voltage - Primary | 250 ~ 375V |
| Voltage - Auxiliary | - |
| Voltage - Isolation | 4500Vrms |
| Inductance @ Frequency | 3.45mH @ 10kHz |
| Frequency | 72kHz |
| Operating Temperature | - |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Size / Dimension | 0.665" L x 0.740" W (16.90mm x 18.80mm) |
| Height - Seated (Max) | 0.529" (13.44mm) |
| Footprint | 0.665" L x 0.740" W (16.90mm x 18.80mm) |
| Style | - |
