Vishay General Semiconductor - Diodes Division 70TPS16
- Part No.:
- 70TPS16
- Manufacturer:
- Vishay General Semiconductor - Diodes Division
- Category:
- SCRs
- Package:
- TO-274AA
- Datasheet:
-
70TPS16.pdf
- Description:
- SCR 1.6KV 75A SUPER-247
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
70TPS16 Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Vishay General Semiconductor - Diodes Division
- Series:
- -
- Package/Case:
- TO-274AA
- Packaging:
- Tube
- Product Status:
- Obsolete
- Voltage - Off State:
- 1.6 kV
- Voltage - Gate Trigger (Vgt) (Max):
- 1.5 V
- Current - Gate Trigger (Igt) (Max):
- 100 mA
- Voltage - On State (Vtm) (Max):
- 1.4 V
- Current - On State (It (AV)) (Max):
- 70 A
- Current - On State (It (RMS)) (Max):
- 75 A
- Current - Hold (Ih) (Max):
- 200 mA
- Current - Off State (Max):
- 1 mA
- Current - Non Rep. Surge 50, 60Hz (Itsm):
- 1400A @ 50Hz
- SCR Type:
- Standard Recovery
- Operating Temperature:
- -40°C ~ 125°C
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Through Hole
- Supplier Device Package:
- SUPER-247™ (TO-274AA)
- Datasheet:
-
70TPS16.pdf

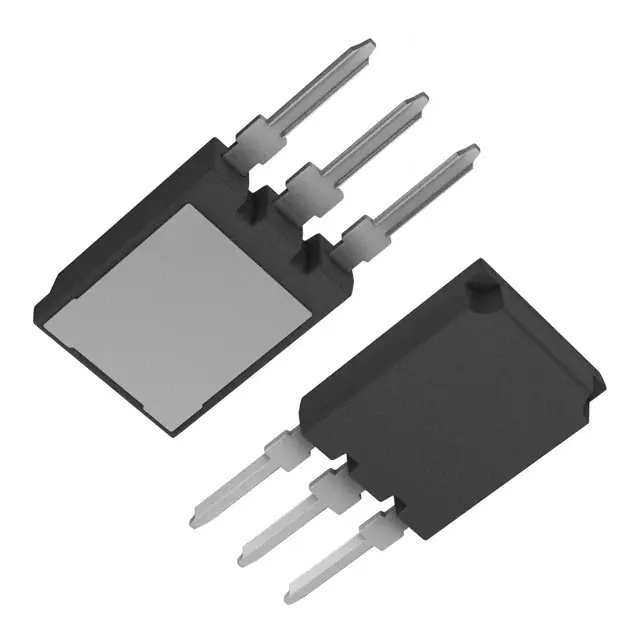

| Image |  |
| Part Number | 70TPS16 |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Series | - |
| Package/Case | TO-274AA |
| Packaging | Tube |
| Product Status | Obsolete |
| Voltage - Off State | 1.6 kV |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5 V |
| Current - Gate Trigger (Igt) (Max) | 100 mA |
| Voltage - On State (Vtm) (Max) | 1.4 V |
| Current - On State (It (AV)) (Max) | 70 A |
| Current - On State (It (RMS)) (Max) | 75 A |
| Current - Hold (Ih) (Max) | 200 mA |
| Current - Off State (Max) | 1 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 1400A @ 50Hz |
| SCR Type | Standard Recovery |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Supplier Device Package | SUPER-247™ (TO-274AA) |
