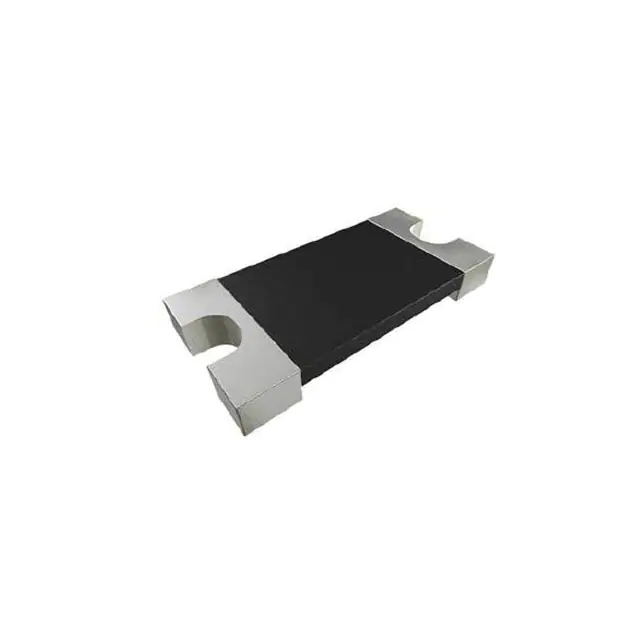

Vishay Dale WSK1206R0120FEA
- Part No.:
- WSK1206R0120FEA
- Manufacturer:
- Vishay Dale
- Category:
- Chip Resistor - Surface Mount
- Package:
- 1206 (3216 Metric), Concave
- Datasheet:
-
WSK1206R0120FEA.pdf
- Description:
- RES 0.012 OHM 1% 1/4W 1206
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
WSK1206R0120FEA Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Vishay Dale
- Series:
- WSK
- Package/Case:
- 1206 (3216 Metric), Concave
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Resistance:
- 12 mOhms
- Tolerance:
- ±1%
- Power (Watts):
- 0.25W, 1/4W
- Composition:
- Metal Element
- Features:
- Current Sense, Moisture Resistant, Pulse Withstanding
- Temperature Coefficient:
- ±35ppm/°C
- Operating Temperature:
- -65°C ~ 170°C
- Supplier Device Package:
- -
- Ratings:
- 1206
- Size / Dimension:
- 0.126" L x 0.063" W (3.20mm x 1.60mm)
- Height - Seated (Max):
- 0.035" (0.89mm)
- Number of Terminations:
- 4
- Failure Rate:
- -
- Datasheet:
-
WSK1206R0120FEA.pdf

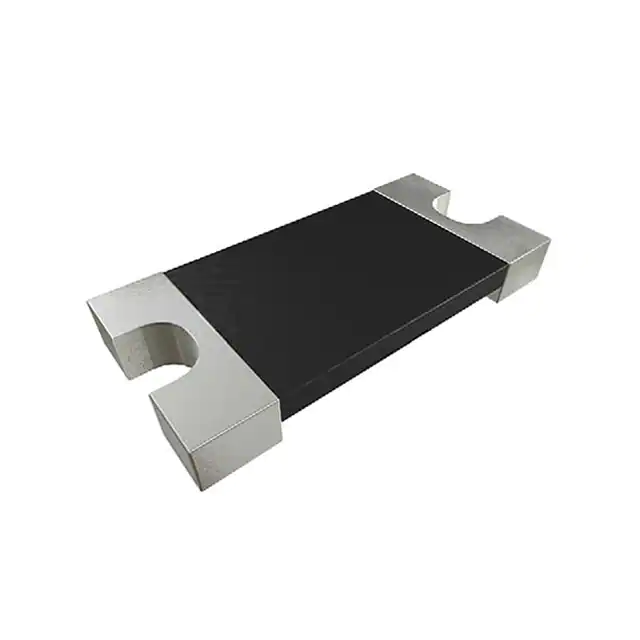

| Image |  |
 |
| Part Number | WSK1206R0120FEA18 | WSK1206R0120FEA |
| Manufacturer | Vishay Dale | Vishay Dale |
| Series | WSK-HP | WSK |
| Package/Case | 1206 (3216 Metric) | 1206 (3216 Metric), Concave |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active |
| Resistance | 12 mOhms | 12 mOhms |
| Tolerance | ±1% | ±1% |
| Power (Watts) | 0.5W, 1/2W | 0.25W, 1/4W |
| Composition | Metal Element | Metal Element |
| Features | Current Sense, Moisture Resistant, Pulse Withstanding | Current Sense, Moisture Resistant, Pulse Withstanding |
| Temperature Coefficient | ±35ppm/°C | ±35ppm/°C |
| Operating Temperature | -65°C ~ 170°C | -65°C ~ 170°C |
| Supplier Device Package | - | - |
| Ratings | 1206 | 1206 |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height - Seated (Max) | 0.035" (0.89mm) | 0.035" (0.89mm) |
| Number of Terminations | 4 | 4 |
| Failure Rate | - | - |
