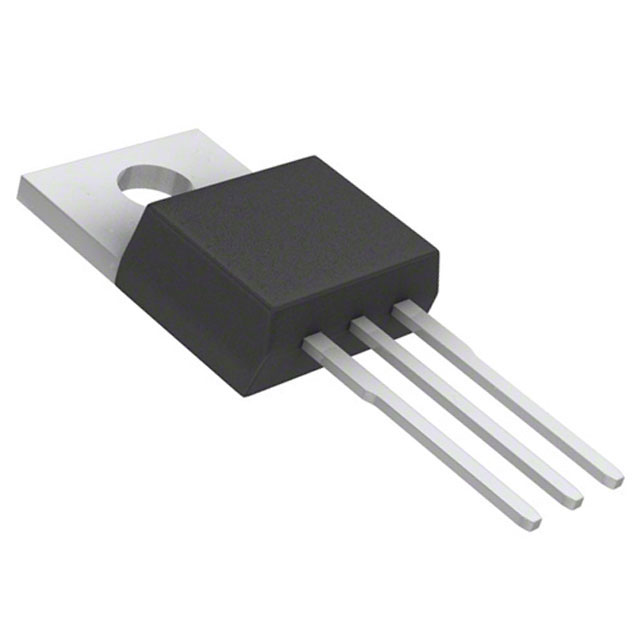

Texas Instruments UA7805CKC
- Part No.:
- UA7805CKC
- Manufacturer:
- Texas Instruments
- Package:
- TO-220-3
- Datasheet:
-
UA7805CKC.pdf
- Description:
- IC REG LINEAR 5V 1.5A TO220-3
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
UA7805CKC Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Texas Instruments
- Series:
- -
- Package/Case:
- TO-220-3
- Packaging:
- Tube
- Product Status:
- Obsolete
- Output Configuration:
- Positive
- Output Type:
- Fixed
- Number of Regulators:
- 1
- Voltage - Input (Max):
- 25V
- Voltage - Output (Min/Fixed):
- 5V
- Voltage - Output (Max):
- -
- Voltage Dropout (Max):
- 2V @ 1A
- Current - Output:
- 1.5A
- Current - Quiescent (Iq):
- -
- Current - Supply (Max):
- -
- PSRR:
- 78dB ~ 68dB (120Hz)
- Control Features:
- -
- Protection Features:
- Over Temperature, Reverse Polarity
- Operating Temperature:
- 0°C ~ 125°C
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Through Hole
- Supplier Device Package:
- TO-220-3
- Datasheet:
-
UA7805CKC.pdf
| Image |  |
.JPG) |
 |
 |
|
| Part Number | UA7805CKCT | UA7805CKC | UA7805CKCE3 | UA7805CKCSE3 | UA7805CKCS |
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Series | - | - | - | - | - |
| Package/Case | TO-220-3 | TO-220-3 | TO-220-3 | TO-220-3 | TO-220-3 |
| Packaging | Bulk | Tube | Tube | Tube | Tube |
| Product Status | Obsolete | Obsolete | Active | Active | Active |
| Output Configuration | Positive | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 25V | 25V | 25V | 25V | 25V |
| Voltage - Output (Min/Fixed) | 5V | 5V | 5V | 5V | 5V |
| Voltage - Output (Max) | - | - | - | - | - |
| Voltage Dropout (Max) | 2V @ 1A | 2V @ 1A | 2V @ 1A | 2V @ 1A | 2V @ 1A |
| Current - Output | 1.5A | 1.5A | 1.5A | 1.5A | 1.5A |
| Current - Quiescent (Iq) | - | - | 8 mA | - | - |
| Current - Supply (Max) | - | - | - | - | - |
| PSRR | 78dB ~ 68dB (120Hz) | 78dB ~ 68dB (120Hz) | 68dB (120Hz) | 78dB ~ 68dB (120Hz) | 78dB ~ 68dB (120Hz) |
| Control Features | - | - | - | - | - |
| Protection Features | Over Temperature, Reverse Polarity | Over Temperature, Reverse Polarity | Over Current, Over Temperature, Reverse Polarity, Short Circuit | Over Temperature, Reverse Polarity | Over Temperature, Reverse Polarity |
| Operating Temperature | 0°C ~ 125°C | 0°C ~ 125°C | 0°C ~ 125°C (TJ) | 0°C ~ 125°C | 0°C ~ 125°C |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | TO-220-3 | TO-220-3 | TO-220-3 | TO-220-3 | TO-220-3 |
