Texas Instruments TCAN1042HGVDR
- Part No.:
- TCAN1042HGVDR
- Manufacturer:
- Texas Instruments
- Category:
- Drivers, Receivers, Transceivers
- Package:
- 8-SOIC (0.154", 3.90mm Width)
- Datasheet:
-
TCAN1042HGVDR.pdf
- Description:
- IC TRANSCEIVER 1/1 8SOIC
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
TCAN1042HGVDR Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Texas Instruments
- Series:
- -
- Package/Case:
- 8-SOIC (0.154", 3.90mm Width)
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Type:
- Transceiver
- Protocol:
- CANbus
- Number of Drivers/Receivers:
- 1/1
- Duplex:
- -
- Receiver Hysteresis:
- 120 mV
- Data Rate:
- 5Mbps
- Voltage - Supply:
- 4.5V ~ 5.5V
- Operating Temperature:
- -55°C ~ 125°C
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 8-SOIC
- Datasheet:
-
TCAN1042HGVDR.pdf
| Image |  |
|
 |
 |
| Part Number | TCAN1042HGVDRQ1 | TCAN1042HGVDR | TCAN1042HGVDRBRQ1 | TCAN1042HGVDRBTQ1 |
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Series | - | - | - | - |

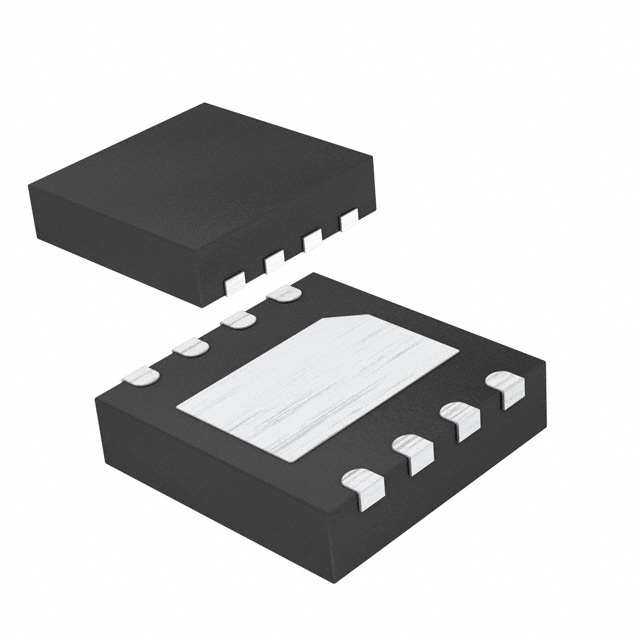

| Package/Case | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-VDFN Exposed Pad | 8-VDFN Exposed Pad |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active |
| Type | Transceiver | Transceiver | Transceiver | Transceiver |
| Protocol | CANbus | CANbus | CANbus | CANbus |
| Number of Drivers/Receivers | 1/1 | 1/1 | 1/1 | 1/1 |
| Duplex | - | - | - | - |
| Receiver Hysteresis | 120 mV | 120 mV | - | 120 mV |
| Data Rate | 5Mbps | 5Mbps | 5Mbps | 5Mbps |
| Voltage - Supply | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Grade | Automotive | - | Automotive | Automotive |
| Qualification | AEC-Q100 | - | AEC-Q100 | AEC-Q100 |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank |
| Supplier Device Package | 8-SOIC | 8-SOIC | 8-VSON (3x3) | 8-VSON (3x3) |
