Taoglas Limited G21.B.301111
- Part No.:
- G21.B.301111
- Manufacturer:
- Taoglas Limited
- Category:
- RF Antennas
- Package:
- Datasheet:
-
G21.B.301111.pdf
- Description:
- RF ANT 892MHZ/1.9GHZ DOME SMA ML
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
G21.B.301111 Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Taoglas Limited
- Series:
- -
- Packaging:
- Bag
- Product Status:
- Not For New Designs
- RF Family/Standard:
- Cellular
- Frequency Group:
- UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz)
- Frequency (Center/Band):
- 892MHz, 1.9GHz
- Frequency Range:
- 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz
- Antenna Type:
- Dome
- Number of Bands:
- 2
- VSWR:
- 3.5
- Return Loss:
- -13.6dB, -19.5dB
- Gain:
- 1.8dBi, 1.5dBi
- Power - Max:
- 10 W
- Features:
- -
- Termination:
- SMA Male
- Ingress Protection:
- IP65
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Panel Mount
- Height (Max):
- 1.142" (29.00mm)
- Applications:
- GSM, UMTS, WCDMA
- Datasheet:
-
G21.B.301111.pdf

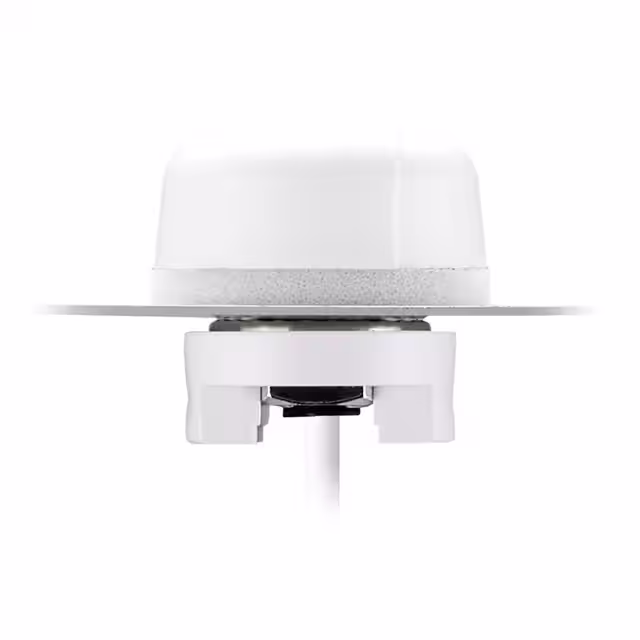

| Image |  |
 |
| Part Number | G21.B.301111 | G21.B.W.301111 |
| Manufacturer | Taoglas Limited | Taoglas Limited |
| Series | - | Hercules |
| Packaging | Bag | Bag |
| Product Status | Not For New Designs | Not For New Designs |
| RF Family/Standard | Cellular | Cellular |
| Frequency Group | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | Wide Band |
| Frequency (Center/Band) | 892MHz, 1.9GHz | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz |
| Frequency Range | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz |
| Antenna Type | Dome | Dome |
| Number of Bands | 2 | 5 |
| VSWR | 3.5 | 3.5 |
| Return Loss | -13.6dB, -19.5dB | -11dB, -12.4dB, -17.5dB, -18.3dB, -18.1dB |
| Gain | 1.8dBi, 1.5dBi | 1dBi, 1dBi, -0.9dBi, -1.1dBi, -1.1dBi |
| Power - Max | 10 W | 10 W |
| Features | - | Cable - 3m |
| Termination | SMA Male | SMA Male |
| Ingress Protection | IP65 | IP67, IP69K |
| Grade | - | - |
| Qualification | - | - |
| Mounting Type | Panel Mount | Panel Mount |
| Height (Max) | 1.142" (29.00mm) | 1.122" (28.50mm) |
| Applications | GSM, UMTS, WCDMA | CDMA, EVDO, GPRS, GSM, HSPA, UMTS, WCDMA |
