Tamura 3FL16-150
- Part No.:
- 3FL16-150
- Manufacturer:
- Tamura
- Category:
- Power Transformers
- Package:
- Datasheet:
-
3FL16-150.pdf
- Description:
- PWR XFMR LAMINATED 2.5VA TH
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
3FL16-150 Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Tamura
- Series:
- 3FL
- Packaging:
- Bulk
- Product Status:
- Active
- Type:
- Laminated Core
- Voltage - Primary:
- 115V, 230V
- Voltage - Secondary (Full Load):
- Parallel 8V, Series 16V
- Current - Output (Max):
- Parallel 300mA, Series 150mA
- Primary Winding(s):
- Dual
- Secondary Winding(s):
- Dual
- Center Tap:
- No
- Power - Max:
- 2.5VA
- Mounting Type:
- Through Hole
- Termination Style:
- PC Pin
- Size / Dimension:
- 63.50mm L x 50.80mm W
- Height - Seated (Max):
- 27.05mm
- Voltage - Isolation:
- 1500Vrms
- Weight:
- -
- Datasheet:
-
3FL16-150.pdf

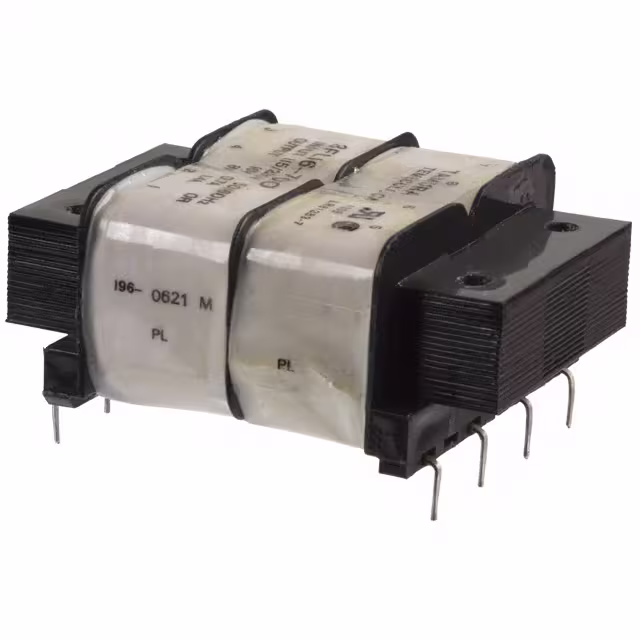

| Image |  |
 |
|
| Part Number | 3FL16-150 | 3FL16-700 | 3FL16-350 |
| Manufacturer | Tamura | Tamura | Tamura |
| Series | 3FL | 3FL | 3FL |
| Packaging | Bulk | Tray | Bulk |
| Product Status | Active | Active | Active |
| Type | Laminated Core | Laminated Core | Laminated Core |
| Voltage - Primary | 115V, 230V | 115V, 230V | 115V, 230V |
| Voltage - Secondary (Full Load) | Parallel 8V, Series 16V | Parallel 8V, Series 16V | Parallel 8V, Series 16V |
| Current - Output (Max) | Parallel 300mA, Series 150mA | Parallel 1.4A, Series 700mA | Parallel 700mA, Series 350mA |
| Primary Winding(s) | Dual | Dual | Dual |
| Secondary Winding(s) | Dual | Dual | Dual |
| Center Tap | No | No | No |
| Power - Max | 2.5VA | 12VA | 6VA |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Termination Style | PC Pin | PC Pin | PC Pin |
| Size / Dimension | 63.50mm L x 50.80mm W | 63.50mm L x 50.80mm W | 47.60mm L x 39.60mm W |
| Height - Seated (Max) | 27.05mm | 27.05mm | 21.60mm |
| Voltage - Isolation | 1500Vrms | 1500Vrms | 1500Vrms |
| Weight | - | - | - |
