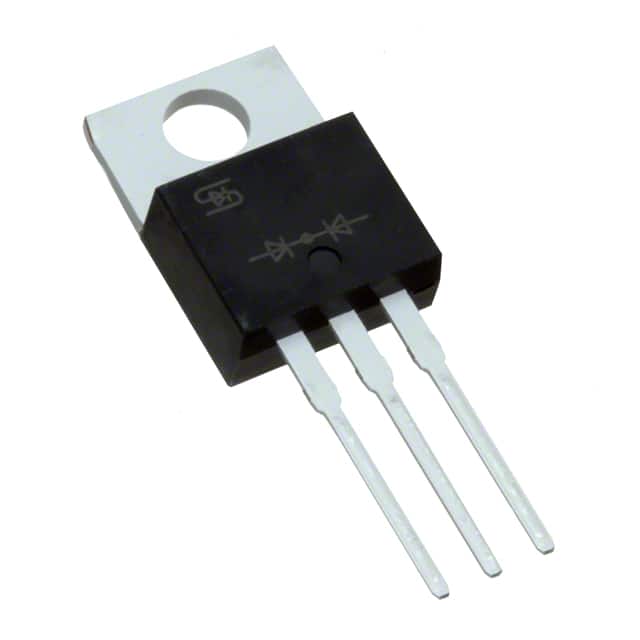

Taiwan Semiconductor Corporation TS7824CZ C0
- Part No.:
- TS7824CZ C0
- Manufacturer:
- Taiwan Semiconductor Corporation
- Package:
- TO-220-3
- Description:
- IC REG LINEAR 24V 1A TO-220
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
TS7824CZ C0 Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Taiwan Semiconductor Corporation
- Series:
- TS7800
- Package/Case:
- TO-220-3
- Packaging:
- Tube
- Product Status:
- Obsolete
- Output Configuration:
- Positive
- Output Type:
- Fixed
- Number of Regulators:
- 1
- Voltage - Input (Max):
- 40V
- Voltage - Output (Min/Fixed):
- 24V
- Voltage - Output (Max):
- -
- Voltage Dropout (Max):
- 2V @ 1A
- Current - Output:
- 1A
- Current - Quiescent (Iq):
- 8 mA
- Current - Supply (Max):
- -
- PSRR:
- 70dB (120Hz)
- Control Features:
- -
- Protection Features:
- Over Temperature, Short Circuit
- Operating Temperature:
- 0°C ~ 125°C (TJ)
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Through Hole
- Supplier Device Package:
- TO-220
| Image |  |
 |
| Part Number | TS7824CZ C0G | TS7824CZ C0 |
| Manufacturer | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation |
| Series | - | TS7800 |
| Package/Case | TO-220-3 | TO-220-3 |
| Packaging | Tube | Tube |
| Product Status | Obsolete | Obsolete |
| Output Configuration | Positive | Positive |
| Output Type | Fixed | Fixed |
| Number of Regulators | 1 | 1 |
| Voltage - Input (Max) | 40V | 40V |
| Voltage - Output (Min/Fixed) | 24V | 24V |
| Voltage - Output (Max) | - | - |
| Voltage Dropout (Max) | 2V @ 1A (Typ) | 2V @ 1A |
| Current - Output | 1A | 1A |
| Current - Quiescent (Iq) | 8 mA | 8 mA |
| Current - Supply (Max) | 500 µA | - |
| PSRR | 70dB (120Hz) | 70dB (120Hz) |
| Control Features | Current Limit | - |
| Protection Features | Over Temperature | Over Temperature, Short Circuit |
| Operating Temperature | 0°C ~ 125°C (TJ) | 0°C ~ 125°C (TJ) |
| Grade | - | - |
| Qualification | - | - |
| Mounting Type | Through Hole | Through Hole |
| Supplier Device Package | TO-220 | TO-220 |
