STMicroelectronics ESDAXLC6-1BT2Y
- Part No.:
- ESDAXLC6-1BT2Y
- Manufacturer:
- STMicroelectronics
- Category:
- TVS Diodes
- Package:
- SOD-882
- Datasheet:
-
ESDAXLC6-1BT2Y.pdf
- Description:
- TVS DIODE 3VWM 37VC SOD882T
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
ESDAXLC6-1BT2Y Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- STMicroelectronics
- Package/Case:
- SOD-882
- Series:
- ESDAY, TRANSIL™
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Type:
- Zener
- Unidirectional Channels:
- -
- Bidirectional Channels:
- 1
- Voltage - Reverse Standoff (Typ):
- 3V
- Voltage - Breakdown (Min):
- 6V
- Voltage - Clamping (Max) @ Ipp:
- 37V (Typ)
- Current - Peak Pulse (10/1000µs):
- 1.3A (8/20µs)
- Power - Peak Pulse:
- 40W
- Power Line Protection:
- No
- Applications:
- -
- Capacitance @ Frequency:
- 0.4pF @ 200MHz ~ 3GHz
- Operating Temperature:
- -55°C ~ 150°C (TJ)
- Grade:
- Automotive
- Qualification:
- AEC-Q101
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- SOD-882T
- Datasheet:
-
ESDAXLC6-1BT2Y.pdf
| Image | .jpg) |
 |
|
|
 |

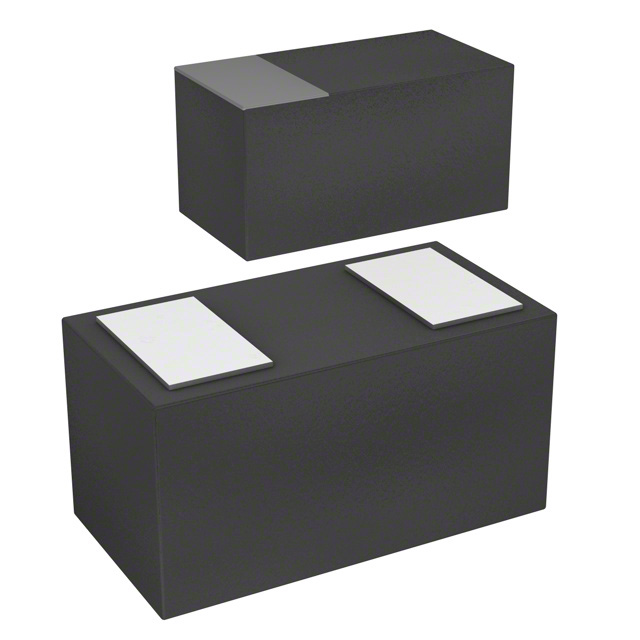

| Part Number | ESDAXLC6-1BU2 | ESDAXLC6-1BT2Y | ESDAXLC6-1BT2 | ESDAXLC6-1MY2 | ESDAXLC6-1BU2K |
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Package/Case | 0201 (0603 Metric) | SOD-882 | SOD-882 | 0402 (1006 Metric) | 0201 (0603 Metric) |
| Series | ESDA | ESDAY, TRANSIL™ | ESDA | ESDA, TRANSIL™ | ESDA |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Obsolete |
| Type | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | - | - | - | 1 | - |
| Bidirectional Channels | 1 | 1 | 1 | - | 1 |
| Voltage - Reverse Standoff (Typ) | 3V | 3V | 3V | 3V | 3V |
| Voltage - Breakdown (Min) | 6V | 6V | 6V | 6V | 6V |
| Voltage - Clamping (Max) @ Ipp | 17V | 37V (Typ) | 17V | - | 19V |
| Current - Peak Pulse (10/1000µs) | 1A (8/20µs) | 1.3A (8/20µs) | 1A (8/20µs) | - | 1A (8/20µs) |
| Power - Peak Pulse | 40W | 40W | 40W | 12W | 30W |
| Power Line Protection | No | No | No | No | No |
| Applications | General Purpose | - | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | 0.4pF @ 200MHz ~ 3GHz | 0.4pF @ 200MHz ~ 3GHz | 0.4pF @ 200MHz ~ 3GHz | 0.35pF @ 200MHz ~ 3GHz | 0.24pF @ 200MHz ~ 3GHz |
| Operating Temperature | -40°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 150°C (TJ) |
| Grade | - | Automotive | - | - | - |
| Qualification | - | AEC-Q101 | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 0201 | SOD-882T | SOD-882T | SOD882 (µQFN-2) | 0201 |
