SparkFun Electronics WRL-10534
- Part No.:
- WRL-10534
- Manufacturer:
- SparkFun Electronics
- Category:
- RF Transmitters
- Package:
- 4-SIP Module
- Datasheet:
-
WRL-10534.pdf
- Description:
- RF LINK TRANSMITTER - 434MHZ
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
WRL-10534 Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- SparkFun Electronics
- Series:
- -
- Package/Case:
- 4-SIP Module
- Packaging:
- Bulk
- Product Status:
- Active
- Programmable:
- Not Verified
- Frequency:
- 433.67MHz ~ 434.17MHz
- Applications:
- Remote Control, Remote Keyless Entry, RKE, Wireless Game Controllers
- Modulation or Protocol:
- ASK
- Data Rate (Max):
- 8kbps
- Power - Output:
- 14dBm
- Current - Transmitting:
- 8mA
- Data Interface:
- -
- Antenna Connector:
- -
- Memory Size:
- -
- Features:
- -
- Voltage - Supply:
- 1.5V ~ 12V
- Operating Temperature:
- -20°C ~ 85°C
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Through Hole
- Supplier Device Package:
- Module
- Datasheet:
-
WRL-10534.pdf

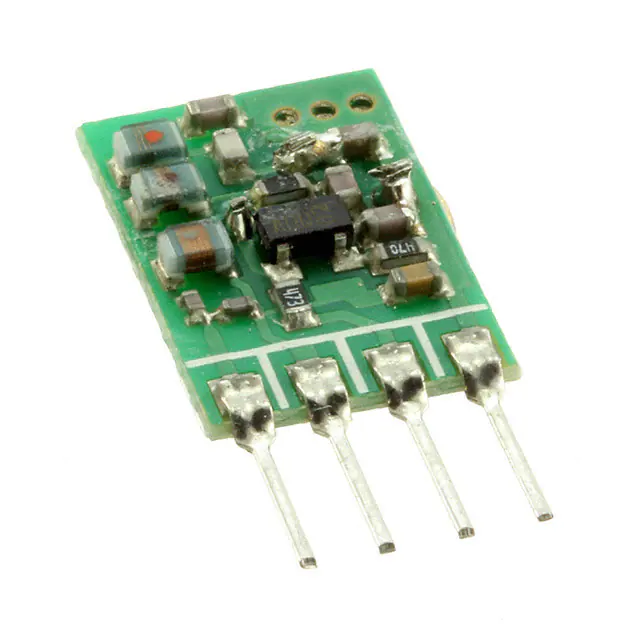

| Image |  |
 |
 |
| Part Number | WRL-10534 | WRL-10535 | WRL-14740 |
| Manufacturer | SparkFun Electronics | SparkFun Electronics | SparkFun Electronics |
| Series | - | - | - |
| Package/Case | 4-SIP Module | 4-SIP Module | 7-SIP Module |
| Packaging | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Obsolete |
| Programmable | Not Verified | Not Verified | Not Verified |
| Frequency | 433.67MHz ~ 434.17MHz | 314.75MHz ~ 315.25MHz | 144.39MHz |
| Applications | Remote Control, Remote Keyless Entry, RKE, Wireless Game Controllers | Remote Control, Remote Keyless Entry, Wireless Game Controllers | General Purpose |
| Modulation or Protocol | ASK | ASK | FM |
| Data Rate (Max) | 8kbps | 8kbps | 3kbps |
| Power - Output | 14dBm | 14dBm | 24.7dBm |
| Current - Transmitting | 8mA | 8mA | 140mA |
| Data Interface | - | - | PCB, Surface Mount |
| Antenna Connector | - | - | PCB, Surface Mount |
| Memory Size | - | - | - |
| Features | - | - | - |
| Voltage - Supply | 1.5V ~ 12V | 1.5V ~ 12V | 5V |
| Operating Temperature | -20°C ~ 85°C | -20°C ~ 85°C | - |
| Grade | - | - | - |
| Qualification | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | Module | Module | Module |
