Siretta Ltd ECHO1A/0.2M/IPEX/S/S/11
- Part No.:
- ECHO1A/0.2M/IPEX/S/S/11
- Manufacturer:
- Siretta Ltd
- Category:
- RF Antennas
- Package:
- Datasheet:
-
ECHO1A/0.2M/IPEX/S/S/11.pdf
- Description:
- RF ANT 850/868MHZ PCB TRACE IPEX
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
ECHO1A/0.2M/IPEX/S/S/11 Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Siretta Ltd
- Series:
- ECHO 1A
- Packaging:
- Bulk
- Product Status:
- Active
- RF Family/Standard:
- Cellular
- Frequency Group:
- UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz)
- Frequency (Center/Band):
- 850MHz, 868MHz, 900MHz, 915MHz, 1.8GHz, 1.9GHz, 2.1GHz
- Frequency Range:
- -
- Antenna Type:
- PCB Trace
- Number of Bands:
- 1
- VSWR:
- 2
- Return Loss:
- -
- Gain:
- 3.6dBi
- Power - Max:
- -
- Features:
- -
- Termination:
- U.FL (UMCC), I-PEX MHF1
- Ingress Protection:
- -
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Height (Max):
- 0.024" (0.60mm)
- Applications:
- GPRS, GSM, UMTS
- Datasheet:
-
ECHO1A/0.2M/IPEX/S/S/11.pdf

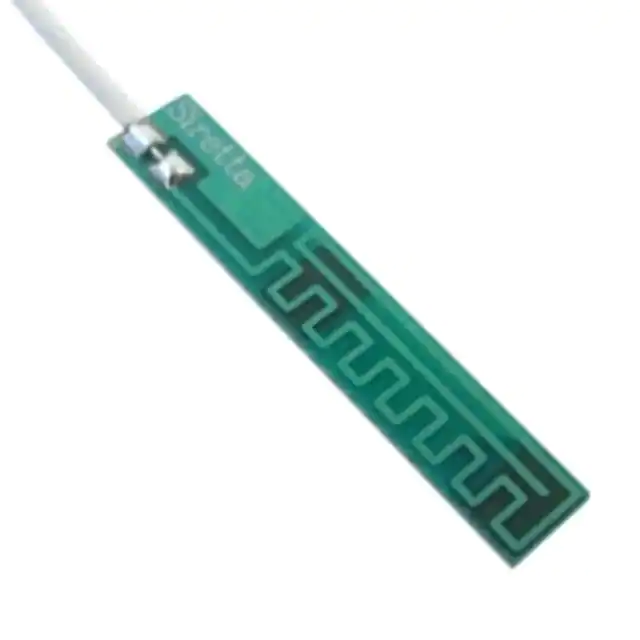

| Image |  |
 |
 |
 |
| Part Number | ECHO1A/0.1M/IPEX/S/S/11 | ECHO1A/0.2M/IPEX/S/S/11 | ECHO1A/0.2M/GSC/S/S/11 | ECHO1A/0.1M/SMAM/S/S/11 |
| Manufacturer | Siretta Ltd | Siretta Ltd | Siretta Ltd | Siretta Ltd |
| Series | ECHO 1A | ECHO 1A | ECHO 1A | ECHO 1 |
| Packaging | Bulk | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Obsolete | Active |
| RF Family/Standard | Cellular | Cellular | Cellular | Cellular |
| Frequency Group | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | Wide Band |
| Frequency (Center/Band) | 850MHz, 868MHz, 900MHz, 915MHz, 1.8GHz, 1.9GHz, 2.1GHz | 850MHz, 868MHz, 900MHz, 915MHz, 1.8GHz, 1.9GHz, 2.1GHz | 850MHz, 868MHz, 900MHz, 915MHz, 1.8GHz, 1.9GHz, 2.1GHz | 1.16GHz, 3.95GHz |
| Frequency Range | - | - | - | 410MHz ~ 1.9GHz, 2GHz ~ 5.9GHz |
| Antenna Type | PCB Trace | PCB Trace | PCB Trace | PCB Trace |
| Number of Bands | 1 | 1 | 1 | 2 |
| VSWR | 2 | 2 | 2 | 12.88 |
| Return Loss | - | - | - | - |
| Gain | 3.6dBi | 3.6dBi | 3.6dBi | 3.36dBi, 4.35dBi |
| Power - Max | - | - | - | 3 W |
| Features | - | - | - | Cable - 100mm |
| Termination | U.FL (UMCC), I-PEX MHF1 | U.FL (UMCC), I-PEX MHF1 | GSC | SMA Male |
| Ingress Protection | - | - | - | - |
| Grade | - | - | - | - |
| Qualification | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Height (Max) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) |
| Applications | GPRS, GSM, UMTS | GPRS, GSM, UMTS | GPRS, GSM, UMTS | 2G, 3G, 4G, 5G, GSM, ISM, LTE, LTE Cat M, LTE Cat NB, NR, UMTS, Wi-Fi |
