Signal Transformer SLT-600
- Part No.:
- SLT-600
- Manufacturer:
- Signal Transformer
- Category:
- Power Transformers
- Package:
- Datasheet:
-
SLT-600.pdf
- Description:
- PWR XFMR LAMINATED 600VA CHAS MT
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
SLT-600 Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Signal Transformer
- Series:
- SLT
- Packaging:
- Bulk
- Product Status:
- Active
- Type:
- Laminated Core
- Voltage - Primary:
- 277V
- Voltage - Secondary (Full Load):
- 120V
- Current - Output (Max):
- 5A
- Primary Winding(s):
- Single
- Secondary Winding(s):
- Single
- Center Tap:
- Yes
- Power - Max:
- 600VA
- Mounting Type:
- Chassis Mount
- Termination Style:
- Terminal Block
- Size / Dimension:
- 113.28mm L x 129.03mm W
- Height - Seated (Max):
- 114.30mm
- Voltage - Isolation:
- 4000Vrms
- Weight:
- 15 lbs (6.8 kg)
- Datasheet:
-
SLT-600.pdf

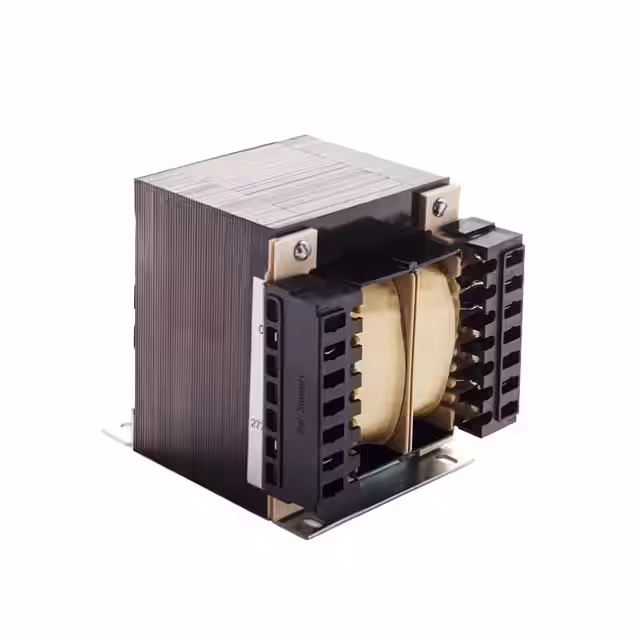

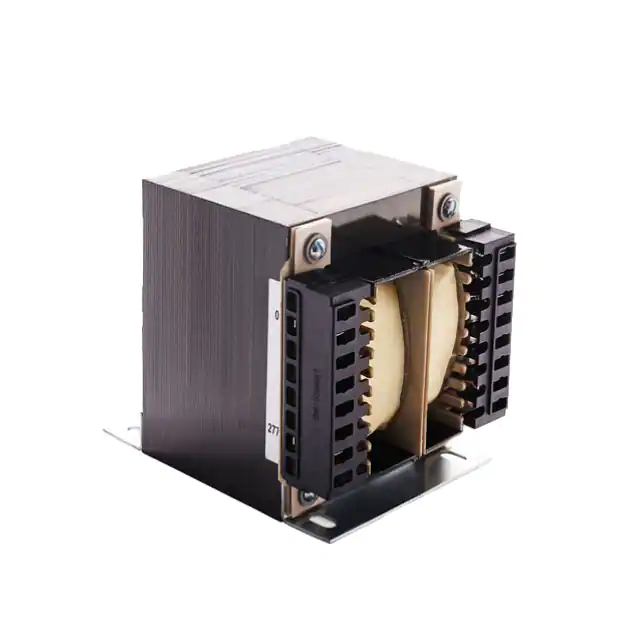

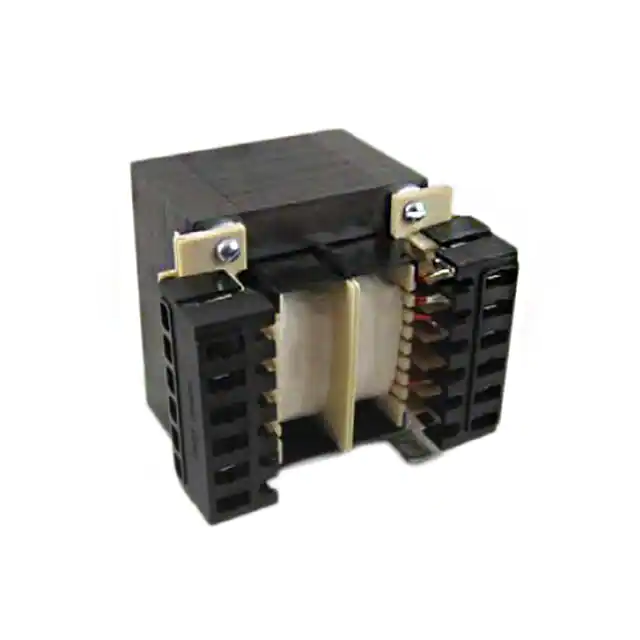

| Image |  |
 |
 |
 |
| Part Number | SLT-300 | SLT-1000 | SLT-450 | SLT-600 |
| Manufacturer | Signal Transformer | Signal Transformer | Signal Transformer | Signal Transformer |
| Series | SLT | SLT | SLT | SLT |
| Packaging | Bulk | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active | Active |
| Type | Laminated Core | Laminated Core | Laminated Core | Laminated Core |
| Voltage - Primary | 277V | 277V | 277V | 277V |
| Voltage - Secondary (Full Load) | 120V | 120V | 120V | 120V |
| Current - Output (Max) | 2.5A | 8.33A | 3.8A | 5A |
| Primary Winding(s) | Single | Single | Single | Single |
| Secondary Winding(s) | Single | Single | Single | Single |
| Center Tap | Yes | Yes | Yes | Yes |
| Power - Max | 300VA | 1000VA | 450VA | 600VA |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Termination Style | Terminal Block | Terminal Block | Terminal Block | Terminal Block |
| Size / Dimension | 106.68mm L x 103.51mm W | 142.20mm L x 144.78mm W | 113.28mm L x 110.00mm W | 113.28mm L x 129.03mm W |
| Height - Seated (Max) | 95.30mm | 133.40mm | 114.30mm | 114.30mm |
| Voltage - Isolation | 4000Vrms | 4000Vrms | 4000Vrms | 4000Vrms |
| Weight | 7 lbs (3.2 kg) | 22 lbs (10 kg) | 11 lbs (5 kg) | 15 lbs (6.8 kg) |
