Sensata-Crydom IDC5
- Part No.:
- IDC5
- Manufacturer:
- Sensata-Crydom
- Category:
- I/O Relay Modules
- Package:
- Datasheet:
-
IDC5.pdf
- Description:
- DC INPUT MODULE 24V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
IDC5 Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Sensata-Crydom
- Series:
- IDC
- Packaging:
- Tray
- Product Status:
- Active
- Type:
- DC Input Module
- Color:
- White
- Style:
- Standard
- Voltage - Input:
- 24VDC
- Current - Input:
- 34 mA
- Voltage - Output:
- 5VDC
- Current - Output:
- 16mA
- Turn On Time:
- 1ms
- Turn Off Time:
- 1ms
- Features:
- Hold Down Screw
- Datasheet:
-
IDC5.pdf

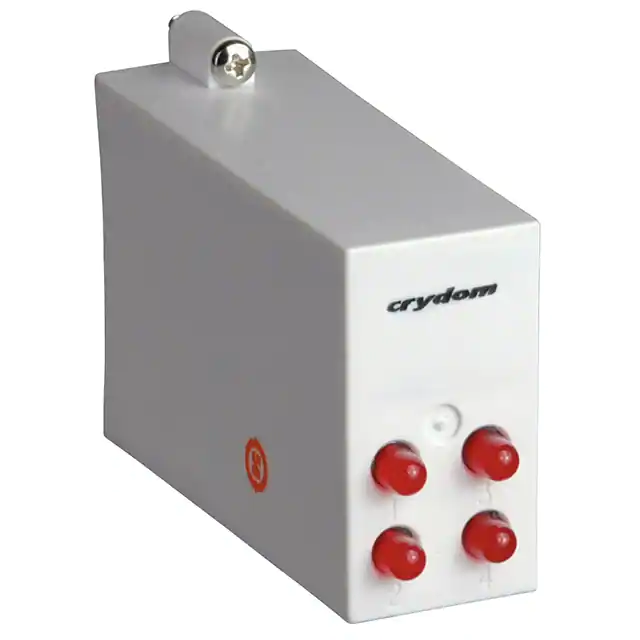

| Image |  |
|
 |
|
|
| Part Number | IDC5F | IDC5 | IDC5BQ | IDC5N | IDC5Q |
| Manufacturer | Sensata-Crydom | Sensata-Crydom | Sensata-Crydom | Sensata-Crydom | Sensata-Crydom |
| Series | IDC | IDC | QUAD | IDC | QUAD |
| Packaging | Bulk | Tray | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Obsolete | Obsolete | Obsolete |
| Type | DC Input Module | DC Input Module | DC Input Module | DC Input Module | DC Input Module |
| Color | White | White | White | White | White |
| Style | Standard | Standard | Quad | Standard | Quad |
| Voltage - Input | 4 ~ 32VDC | 24VDC | 5 ~ 32VDC | 10 ~ 48VDC | 12 ~ 60VDC |
| Current - Input | 68 mA | 34 mA | 68 mA | 34 mA | 34 mA |
| Voltage - Output | 5VDC | 5VDC | 5VDC | 5VDC | 5VDC |
| Current - Output | 16mA | 16mA | 16mA | 16mA | 16mA |
| Turn On Time | 0.05ms | 1ms | 0.05ms | 8ms | 1ms |
| Turn Off Time | 0.10ms | 1ms | 0.10ms | 7ms | 1ms |
| Features | Hold Down Screw | Hold Down Screw | Hold Down Screw, Status LED(s) | Hold Down Screw | Hold Down Screw, Status LED(s) |
