SCHURTER Inc. 8040.0001
- Part No.:
- 8040.0001
- Manufacturer:
- SCHURTER Inc.
- Category:
- Fuseholders
- Package:
- Datasheet:
-
8040.0001.pdf
- Description:
- FUSE CLIP CARTRIDGE 600V 32A PCB
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
8040.0001 Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- SCHURTER Inc.
- Series:
- CQP
- Packaging:
- Bulk
- Product Status:
- Active
- Mounting Type:
- Through Hole
- Fuse Size:
- 0.25" Dia (6.35mm)
- Current Rating (Amps):
- 32 A
- For Use With/Related Products:
- 1/4" Dia Fuses
- Fuse Type:
- Cartridge
- Fuseholder Type:
- Clip
- Number of Circuits:
- 1
- Voltage:
- 600V
- Orientation:
- Horizontal
- Termination Style:
- PC Pin
- Contact Material:
- Beryllium Copper
- Contact Finish:
- Tin
- Approval Agency:
- -
- Datasheet:
-
8040.0001.pdf
| Image |  |
 |
 |
 |
|

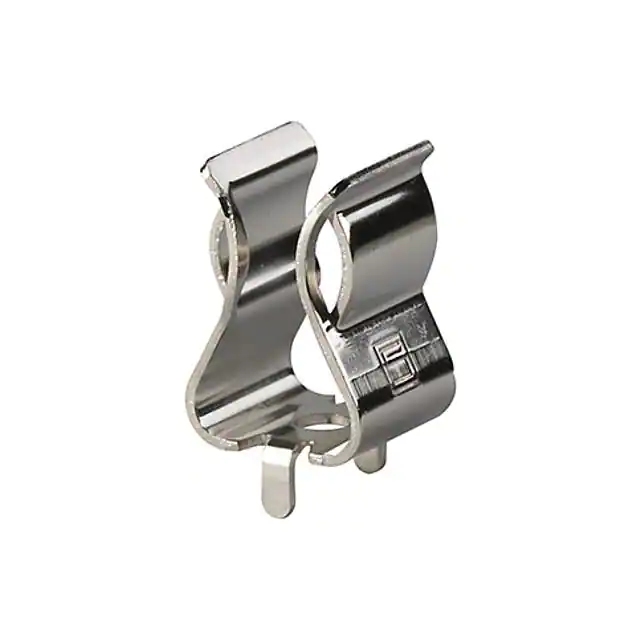

| Part Number | 8040.0001 | 8040.0003 | 8040.2012.01 | 8040.2002 | 8040.2005 |
| Manufacturer | SCHURTER Inc. | SCHURTER Inc. | SCHURTER Inc. | SCHURTER Inc. | SCHURTER Inc. |
| Series | CQP | CQP | CFO | CFO | CFO |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| Mounting Type | Through Hole | Through Hole | Through Hole | Chassis Mount | Chassis Mount |
| Fuse Size | 0.25" Dia (6.35mm) | 0.25" Dia (6.35mm) | 0.394" Dia (10mm) | 0.406" Dia x 1.496" L (10.3mm x 38mm) | 0.25" Dia (6.35mm) |
| Current Rating (Amps) | 32 A | 32 A | 15 A | 15 A | 15 A |
| For Use With/Related Products | 1/4" Dia Fuses | 1/4" Dia Fuses | 5AG, 10mm x 38mm (Midget) | ASO 10.3X38 | 1/4" Dia Fuses |
| Fuse Type | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge |
| Fuseholder Type | Clip | Clip | Clip | Clip | Clip |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 |
| Voltage | 600V | 600V | 1000V | 1000V | 1000V |
| Orientation | Horizontal | Horizontal | Horizontal | Horizontal | Horizontal |
| Termination Style | PC Pin | PC Pin | PC Pin | Screw Terminal | Screw Terminal |
| Contact Material | Beryllium Copper | Beryllium Copper | Brass | Brass | Brass |
| Contact Finish | Tin | Silver | Nickel | Nickel | Tin |
| Approval Agency | - | - | - | - | - |
