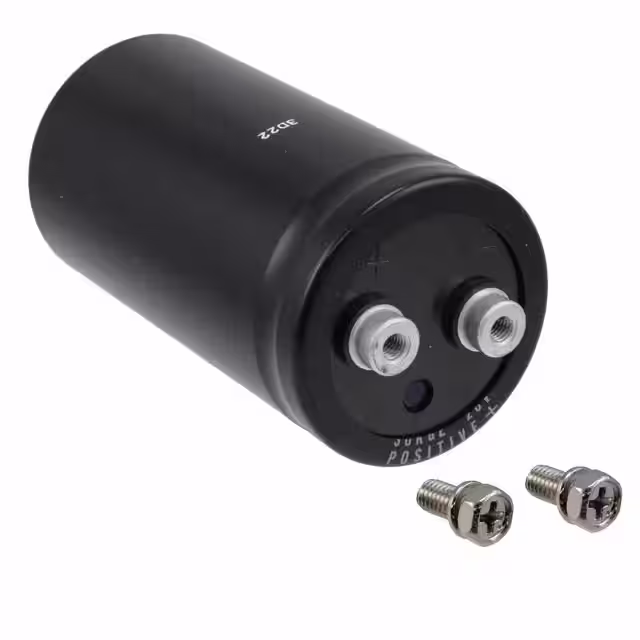

Rubycon 16LSW100000MNB51X98
- Part No.:
- 16LSW100000MNB51X98
- Manufacturer:
- Rubycon
- Category:
- Aluminum Electrolytic Capacitors
- Package:
- Datasheet:
-
16LSW100000MNB51X98.pdf
- Description:
- CAP ALUM 100000UF 20% 16V SCREW
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
16LSW100000MNB51X98 Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Rubycon
- Package/Case:
- Series:
- LSW
- Packaging:
- Bulk
- Product Status:
- Not For New Designs
- Capacitance:
- 100000 µF
- Tolerance:
- ±20%
- Voltage - Rated:
- 16 V
- ESR (Equivalent Series Resistance):
- -
- Lifetime @ Temp.:
- 3000 Hrs @ 105°C
- Operating Temperature:
- -40°C ~ 105°C
- Polarization:
- Polar
- Ratings:
- -
- Applications:
- General Purpose
- Ripple Current @ Low Frequency:
- 11.3 A @ 120 Hz
- Ripple Current @ High Frequency:
- 12.204 A @ 10 kHz
- Impedance:
- -
- Lead Spacing:
- 0.858" (21.80mm)
- Size / Dimension:
- 2.008" Dia (51.00mm)
- Height - Seated (Max):
- 4.016" (102.00mm)
- Surface Mount Land Size:
- -
- Mounting Type:
- Chassis Mount
- Datasheet:
-
16LSW100000MNB51X98.pdf
| Image |  |
| Part Number | 16LSW100000MNB51X98 |
| Manufacturer | Rubycon |
| Package/Case | |
| Series | LSW |
| Packaging | Bulk |
| Product Status | Not For New Designs |
| Capacitance | 100000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 11.3 A @ 120 Hz |
| Ripple Current @ High Frequency | 12.204 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.858" (21.80mm) |
| Size / Dimension | 2.008" Dia (51.00mm) |
| Height - Seated (Max) | 4.016" (102.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
