RF Solutions QAM-TX1-433
- Part No.:
- QAM-TX1-433
- Manufacturer:
- RF Solutions
- Category:
- RF Transmitters
- Package:
- Module
- Datasheet:
-
QAM-TX1-433.pdf
- Description:
- RF TX IC AM/ASK/ 433.92MHZ MOD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
QAM-TX1-433 Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- RF Solutions
- Series:
- -
- Package/Case:
- Module
- Packaging:
- Bulk
- Product Status:
- Obsolete
- Programmable:
- Not Verified
- Frequency:
- 433.92MHz
- Applications:
- -
- Modulation or Protocol:
- AM, ASK, OOK
- Data Rate (Max):
- -
- Power - Output:
- -
- Current - Transmitting:
- 22mA
- Data Interface:
- PCB, Through Hole
- Antenna Connector:
- Through Hole
- Memory Size:
- -
- Features:
- -
- Voltage - Supply:
- 1.5V ~ 5V
- Operating Temperature:
- -20°C ~ 60°C
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Through Hole
- Supplier Device Package:
- Module
- Datasheet:
-
QAM-TX1-433.pdf

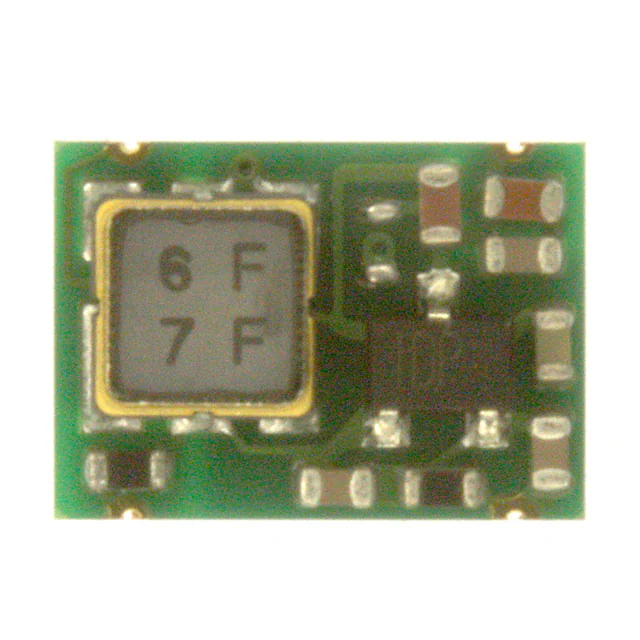

| Image |  |
 |
.JPG) |
| Part Number | QAM-TX2-433 | QAM-TX3-433 | QAM-TX1-433 |
| Manufacturer | RF Solutions | RF Solutions | RF Solutions |
| Series | - | - | - |
| Package/Case | 4-DIP Module | Module | Module |
| Packaging | Bulk | Strip | Bulk |
| Product Status | Active | Active | Obsolete |
| Programmable | Not Verified | Not Verified | Not Verified |
| Frequency | 433MHz | 433.92MHz | 433.92MHz |
| Applications | General Purpose | - | - |
| Modulation or Protocol | ASK | AM | AM, ASK, OOK |
| Data Rate (Max) | - | 3kbps | - |
| Power - Output | - | 10dBm | - |
| Current - Transmitting | - | 12.5mA | 22mA |
| Data Interface | Solder Pad | PCB, Through Hole | PCB, Through Hole |
| Antenna Connector | Castellation | Through Hole | Through Hole |
| Memory Size | - | - | - |
| Features | - | - | - |
| Voltage - Supply | 3V ~ 12V | 3V ~ 12V | 1.5V ~ 5V |
| Operating Temperature | - | -20°C ~ 85°C | -20°C ~ 60°C |
| Grade | - | - | - |
| Qualification | - | - | - |
| Mounting Type | Through Hole | Surface Mount | Through Hole |
| Supplier Device Package | Module | Module | Module |
