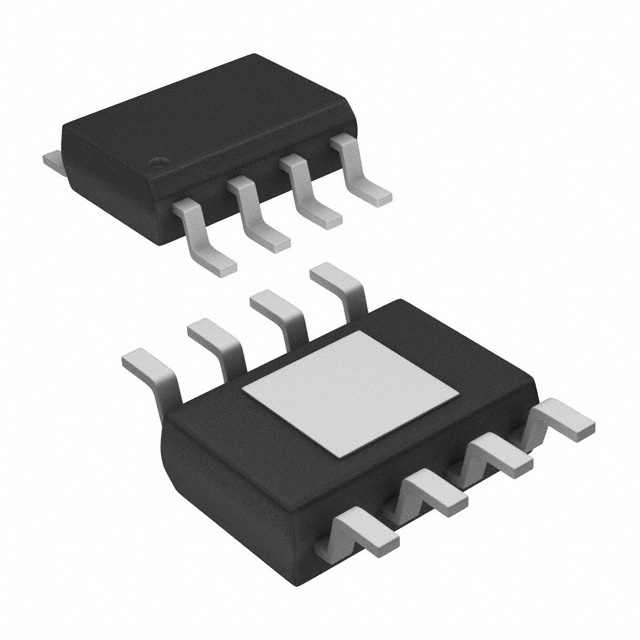

Renesas Electronics Corporation ISL78307FBEBZ-TR5506
- Part No.:
- ISL78307FBEBZ-TR5506
- Manufacturer:
- Renesas Electronics Corporation
- Package:
- 8-SOIC (0.154", 3.90mm Width) Exposed Pad
- Description:
- ISL78307FBEBZ-TR5506
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
ISL78307FBEBZ-TR5506 Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Renesas Electronics Corporation
- Series:
- -
- Package/Case:
- 8-SOIC (0.154", 3.90mm Width) Exposed Pad
- Packaging:
- Bulk
- Product Status:
- Obsolete
- Output Configuration:
- Positive
- Output Type:
- Fixed
- Number of Regulators:
- 1
- Voltage - Input (Max):
- 40V
- Voltage - Output (Min/Fixed):
- 5V
- Voltage - Output (Max):
- -
- Voltage Dropout (Max):
- 0.35V @ 50mA
- Current - Output:
- 50mA
- Current - Quiescent (Iq):
- 28 µA
- Current - Supply (Max):
- 90 µA
- PSRR:
- 58dB (100Hz)
- Control Features:
- Current Limit, Enable, Soft Start
- Protection Features:
- Over Current, Over Temperature, Short Circuit
- Operating Temperature:
- -40°C ~ 125°C (TA)
- Grade:
- Automotive
- Qualification:
- AEC-Q100
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 8-SOIC-EP
| Image |  |
|
|
 |
| Part Number | ISL78307FBEBZ-T7A | ISL78307FBEBZ-T | ISL78307FBEBZ | ISL78307FBEBZ-TR5506 |
| Manufacturer | Renesas Electronics Corporation | Renesas Electronics Corporation | Renesas Electronics Corporation | Renesas Electronics Corporation |
| Series | - | - | - | - |
| Package/Case | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | 8-SOIC (0.154", 3.90mm Width) Exposed Pad |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tray | Bulk |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Output Configuration | Positive | - | - | Positive |
| Output Type | Fixed | - | - | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 40V | - | - | 40V |
| Voltage - Output (Min/Fixed) | 5V | - | - | 5V |
| Voltage - Output (Max) | - | - | - | - |
| Voltage Dropout (Max) | 0.35V @ 50mA | - | - | 0.35V @ 50mA |
| Current - Output | 50mA | 50mA | 50mA | 50mA |
| Current - Quiescent (Iq) | 28 µA | - | - | 28 µA |
| Current - Supply (Max) | 90 µA | - | - | 90 µA |
| PSRR | 58dB (100Hz) | - | - | 58dB (100Hz) |
| Control Features | Enable | - | - | Current Limit, Enable, Soft Start |
| Protection Features | Over Current, Over Temperature | - | - | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C (TA) |
| Grade | Automotive | Automotive | Automotive | Automotive |
| Qualification | AEC-Q100 | AEC-Q100 | AEC-Q100 | AEC-Q100 |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 8-SOIC-EP | 8-SOIC-EP | 8-SOIC-EP | 8-SOIC-EP |
