Renesas Electronics Corporation DA14581-00AT2
- Part No.:
- DA14581-00AT2
- Manufacturer:
- Renesas Electronics Corporation
- Category:
- RF Transceiver ICs
- Package:
- 40-VFQFN Exposed Pad
- Datasheet:
-
DA14581-00AT2.pdf
- Description:
- IC RF TXRX+MCU BLE 40QFN
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
DA14581-00AT2 Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Renesas Electronics Corporation
- Series:
- -
- Package/Case:
- 40-VFQFN Exposed Pad
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Not For New Designs
- Programmable:
- Not Verified
- Type:
- TxRx + MCU
- RF Family/Standard:
- Bluetooth
- Protocol:
- Bluetooth v4.1
- Modulation:
- -
- Frequency:
- 2.4GHz
- Data Rate (Max):
- -
- Power - Output:
- -1dBm
- Sensitivity:
- -93dBm
- Memory Size:
- 32kB OTP, 84kB ROM, 50kB SRAM
- Serial Interfaces:
- I2C, SPI, UART
- GPIO:
- 24
- Voltage - Supply:
- 2.35V ~ 3.3V
- Current - Receiving:
- 3.7mA
- Current - Transmitting:
- 3.4mA
- Operating Temperature:
- -40°C ~ 85°C
- Grade:
- -
- Qualification:
- -
- Supplier Device Package:
- 40-QFN (5x5)
- Datasheet:
-
DA14581-00AT2.pdf
| Image |  |
 |
 |
|
| Part Number | DA14581-00AT2 | DA14581-00UNA | DA14581-00AT1 | DA14581-00000VRA |
| Manufacturer | Renesas Electronics Corporation | Renesas Electronics Corporation | Renesas Electronics Corporation | Renesas Electronics Corporation |
| Series | - | - | - | - |

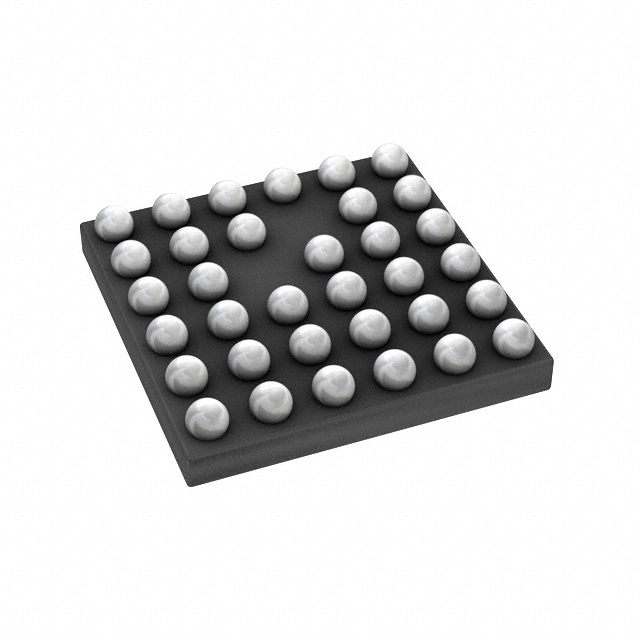

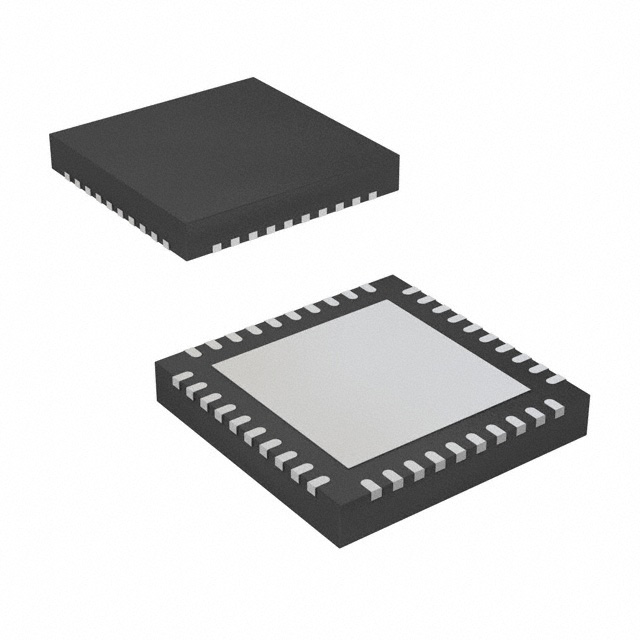

| Package/Case | 40-VFQFN Exposed Pad | 34-UFBGA, WLCSP | 40-VFQFN Exposed Pad | 34-XFBGA, WLCSP |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Bulk | Tape & Reel (TR) |
| Product Status | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs |
| Programmable | Not Verified | Not Verified | Not Verified | Not Verified |
| Type | TxRx + MCU | TxRx + MCU | TxRx + MCU | TxRx + MCU |
| RF Family/Standard | Bluetooth | Bluetooth | Bluetooth | Bluetooth |
| Protocol | Bluetooth v4.1 | Bluetooth v4.1 | Bluetooth v4.1 | Bluetooth v4.1 |
| Modulation | - | - | - | - |
| Frequency | 2.4GHz | 2.4GHz | 2.4GHz | 2.4GHz |
| Data Rate (Max) | - | - | - | - |
| Power - Output | -1dBm | -1dBm | -1dBm | -1dBm |
| Sensitivity | -93dBm | -93dBm | -93dBm | -93dBm |
| Memory Size | 32kB OTP, 84kB ROM, 50kB SRAM | 32kB OTP, 84kB ROM, 50kB SRAM | 32kB OTP, 84kB ROM, 50kB SRAM | 32kB OTP, 84kB ROM, 50kB SRAM |
| Serial Interfaces | I2C, SPI, UART | I2C, SPI, UART | I2C, SPI, UART | I2C, SPI, UART |
| GPIO | 24 | 14 | 24 | 24 |
| Voltage - Supply | 2.35V ~ 3.3V | 2.35V ~ 3.3V | 2.35V ~ 3.3V | 2.35V ~ 3.3V |
| Current - Receiving | 3.7mA | 3.7mA | 3.7mA | 3.7mA |
| Current - Transmitting | 3.4mA | 3.4mA | 3.4mA | 3.4mA |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Grade | - | - | - | - |
| Qualification | - | - | - | - |
| Supplier Device Package | 40-QFN (5x5) | 34-WLCSP (2.44x2.44) | 40-QFN (5x5) | 34-WLCSP (2.44x2.44) |
