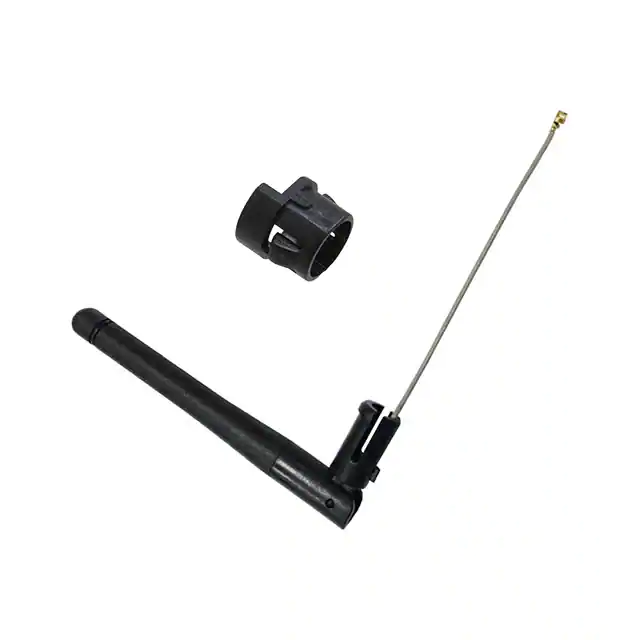

Pulse Electronics W1039B030
- Part No.:
- W1039B030
- Manufacturer:
- Pulse Electronics
- Category:
- RF Antennas
- Package:
- Datasheet:
-
W1039B030.pdf
- Description:
- ANT EXT 2.4-2.5GHZ 76MM U.FL
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
W1039B030 Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Pulse Electronics
- Series:
- Stick Antenna
- Packaging:
- Bag
- Product Status:
- Active
- RF Family/Standard:
- 802.15.4, Bluetooth, WiFi
- Frequency Group:
- UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
- Frequency (Center/Band):
- 2.45GHz, 5.4GHz
- Frequency Range:
- 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.925GHz
- Antenna Type:
- Whip, Tilt
- Number of Bands:
- 2
- VSWR:
- 2
- Return Loss:
- -
- Gain:
- 1dBi, 2dBi
- Power - Max:
- 2 W
- Features:
- Cable - 76mm
- Termination:
- U.FL (UMCC), I-PEX MHF1
- Ingress Protection:
- IP20
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Connector Mount
- Height (Max):
- 7.138" (181.30mm)
- Applications:
- Bluetooth, Wi-Fi, Zigbee™
- Datasheet:
-
W1039B030.pdf
| Image |  |
| Part Number | W1039B030 |
| Manufacturer | Pulse Electronics |
| Series | Stick Antenna |
| Packaging | Bag |
| Product Status | Active |
| RF Family/Standard | 802.15.4, Bluetooth, WiFi |
| Frequency Group | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) |
| Frequency (Center/Band) | 2.45GHz, 5.4GHz |
| Frequency Range | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.925GHz |
| Antenna Type | Whip, Tilt |
| Number of Bands | 2 |
| VSWR | 2 |
| Return Loss | - |
| Gain | 1dBi, 2dBi |
| Power - Max | 2 W |
| Features | Cable - 76mm |
| Termination | U.FL (UMCC), I-PEX MHF1 |
| Ingress Protection | IP20 |
| Grade | - |
| Qualification | - |
| Mounting Type | Connector Mount |
| Height (Max) | 7.138" (181.30mm) |
| Applications | Bluetooth, Wi-Fi, Zigbee™ |
