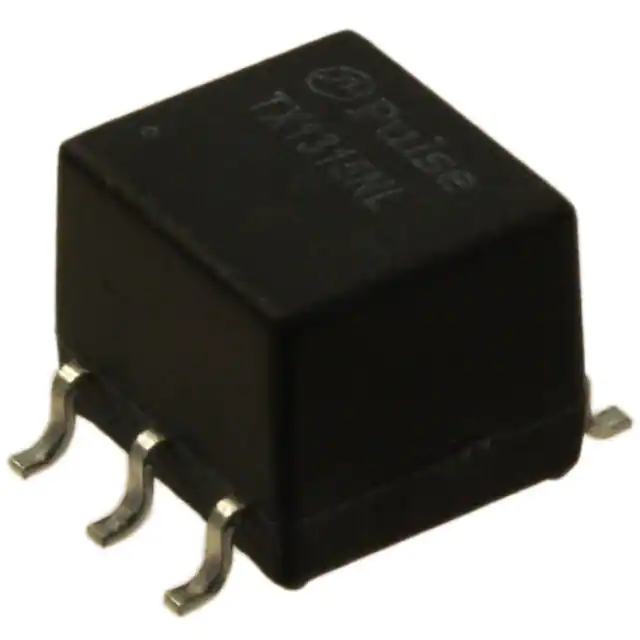

Pulse Electronics TX1315
- Part No.:
- TX1315
- Manufacturer:
- Pulse Electronics
- Category:
- Pulse Transformers
- Package:
- Datasheet:
-
TX1315.pdf
- Description:
- PULSE XFMR 1CT:1CT 1.2MH
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
TX1315 Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Pulse Electronics
- Series:
- -
- Packaging:
- Tube
- Product Status:
- Obsolete
- Transformer Type:
- -
- Inductance:
- 1.2mH
- ET (Volt-Time):
- -
- Turns Ratio - Primary:Secondary:
- 1CT:1CT
- Mounting Type:
- Surface Mount
- Size / Dimension:
- 0.300" L x 0.276" W (7.62mm x 7.00mm)
- Height - Seated (Max):
- 0.250" (6.35mm)
- Operating Temperature:
- -40°C ~ 85°C
- Grade:
- -
- Qualification:
- -
- Datasheet:
-
TX1315.pdf
| Image |  |
|
 |
|
| Part Number | TX1315NL | TX1315NLT | TX1315T | TX1315 |
| Manufacturer | Pulse Electronics | Pulse Electronics | Pulse Electronics | Pulse Electronics |
| Series | - | - | - | - |
| Packaging | Tube | Tape & Reel (TR) | Tape & Reel (TR) | Tube |
| Product Status | Active | Active | Obsolete | Obsolete |
| Transformer Type | T1/E1 (Single) | T1/E1 (Single) | - | - |
| Inductance | 1.2mH | 1.2mH | 1.2mH | 1.2mH |
| ET (Volt-Time) | - | - | - | - |
| Turns Ratio - Primary:Secondary | 1CT:1CT | 1CT:1CT | 1CT:1CT | 1CT:1CT |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Size / Dimension | 0.300" L x 0.276" W (7.62mm x 7.00mm) | 0.300" L x 0.276" W (7.62mm x 7.00mm) | 0.300" L x 0.276" W (7.62mm x 7.00mm) | 0.300" L x 0.276" W (7.62mm x 7.00mm) |
| Height - Seated (Max) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Grade | - | - | - | - |
| Qualification | - | - | - | - |
