Pulse Electronics SLPT2400/5900DMNW
- Part No.:
- SLPT2400/5900DMNW
- Manufacturer:
- Pulse Electronics
- Category:
- RF Antennas
- Package:
- Datasheet:
-
SLPT2400/5900DMNW.pdf
- Description:
- RF ANT 2.45/5.45GHZ DOME N FEM
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
SLPT2400/5900DMNW Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Pulse Electronics
- Series:
- Shadow
- Packaging:
- Bulk
- Product Status:
- Active
- RF Family/Standard:
- Cellular, General ISM, WiFi
- Frequency Group:
- UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
- Frequency (Center/Band):
- 2.45GHz, 5.45GHz
- Frequency Range:
- 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz
- Antenna Type:
- Dome
- Number of Bands:
- 2
- VSWR:
- 1.5, 2
- Return Loss:
- -
- Gain:
- 4.78dBi, 5.14dBi
- Power - Max:
- 10 W
- Features:
- -
- Termination:
- N Type Female
- Ingress Protection:
- IP67
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Connector Mount
- Height (Max):
- 2.624" (66.66mm)
- Applications:
- 3G, 4G, DSRC, LTE, ISM, Wi-Fi
- Datasheet:
-
SLPT2400/5900DMNW.pdf
| Image |  |
 |
 |
|
 |

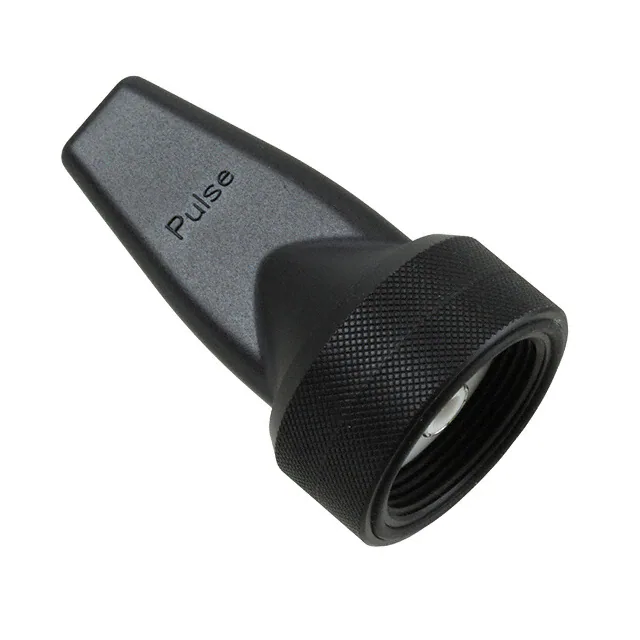

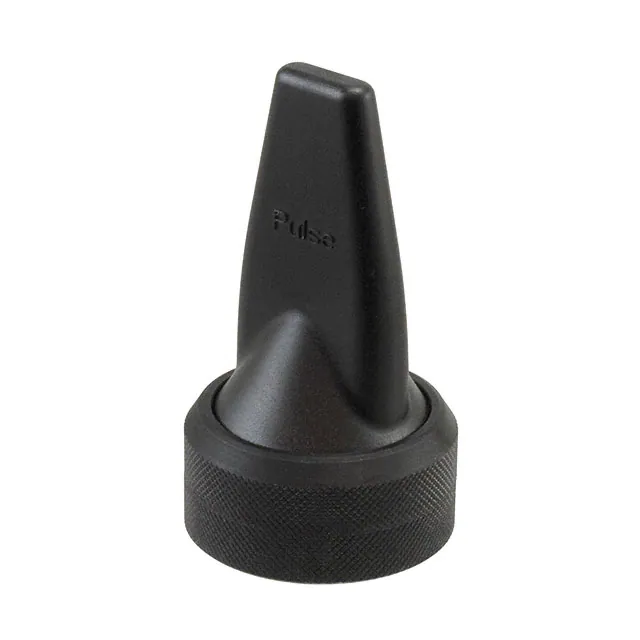

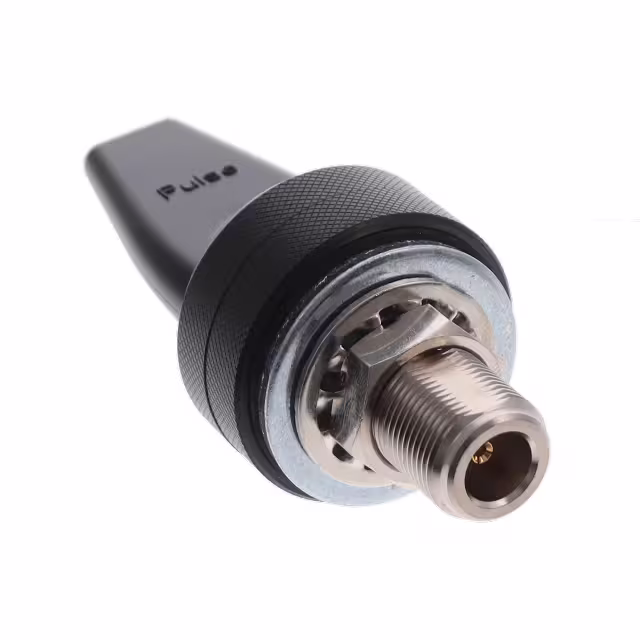

| Part Number | SLPT2400/5900DMNW | SLPT2400DMN | SLPT2400/5900NMOHF | SLPT2400DMNW | SLPT2400NMOHF |
| Manufacturer | Pulse Electronics | Pulse Electronics | Pulse Electronics | Pulse Electronics | Pulse Electronics |
| Series | Shadow | Shadow | Shadow | Shadow | Shadow |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| RF Family/Standard | Cellular, General ISM, WiFi | Cellular, General ISM, WiFi | Cellular, WiFi | Cellular, General ISM, WiFi | Cellular, WiFi |
| Frequency Group | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | UHF (2GHz ~ 3GHz) | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | UHF (2GHz ~ 3GHz) | UHF (2GHz ~ 3GHz) |
| Frequency (Center/Band) | 2.45GHz, 5.45GHz | 2.45GHz | 2.4GHz, 4.9GHz | 2.45GHz | 2.4GHz |
| Frequency Range | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz | 2.4GHz ~ 2.5GHz | 2.4GHz ~ 2.485GHz, 4.9GHz ~ 5.9GHz | 2.4GHz ~ 2.5GHz | 2.4GHz ~ 2.5GHz |
| Antenna Type | Dome | Dome | Dome | Dome | Dome |
| Number of Bands | 2 | 1 | 2 | 1 | 1 |
| VSWR | 1.5, 2 | 2 | 2 | 2 | 2 |
| Return Loss | - | - | - | - | - |
| Gain | 4.78dBi, 5.14dBi | 4.78dBi | 4.5dBi, 5.5dBi | 4.78dBi | 4.3dBi |
| Power - Max | 10 W | 10 W | 10 W | 10 W | 10 W |
| Features | - | - | - | - | - |
| Termination | N Type Female | N Type Female | NMO | N Type Female | NMO |
| Ingress Protection | IP67 | IP67 | IP67 | IP67 | IP67 |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Mounting Type | Connector Mount | Connector Mount | Base Mount | Connector Mount | Base Mount |
| Height (Max) | 2.624" (66.66mm) | 2.624" (66.66mm) | 2.500" (63.50mm) | 2.624" (66.66mm) | 2.500" (63.50mm) |
| Applications | 3G, 4G, DSRC, LTE, ISM, Wi-Fi | 3G, 4G, DSRC, LTE, ISM, Wi-Fi | LTE, WLAN | 3G, 4G, DSRC, LTE, ISM, Wi-Fi | LTE, WLAN |
