Home > Products > Transformers > Specialty Transformers

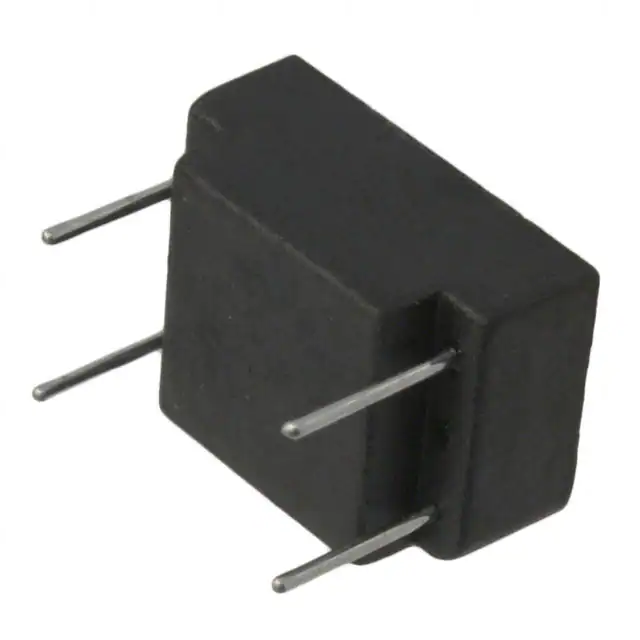

Pulse Electronics PE-8270NL

Compare

Part No.:: PE-8270NL

Manufacturer:: Pulse Electronics

Category:: Specialty Transformers

Package:

Datasheet:: PE-8270NL.pdf

Description:: TRANSFORMER 2MH TH

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

PE-8270NL Information

Specifications
Product Details
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: Pulse Electronics

Series:: -

Packaging:: Tube

Product Status:: Active

Inductance:: 2 mH

For Use With/Related Products:: -

Mounting Type:: Through Hole

Size / Dimension:: 0.500" L x 0.350" W (12.70mm x 8.89mm)

Height - Seated (Max):: 0.250" (6.35mm)

Datasheet:: PE-8270NL.pdf

Part Number	PE-65812NLT	PE-65612NL	PE-8271M	PE-65812NL	PE-8270NL
Manufacturer	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics
Series	-	-	-	-	-
Packaging	Tape & Reel (TR)	Tube	Tube	Tube	Tube
Product Status	Active	Active	Active	Active	Active
Inductance	2.5 mH	2.5 mH	500 µH	2.5 mH	2 mH
For Use With/Related Products	-	CS8401, CS8402, CS8403, CS8404 Audio Transmitters	-	-	-
Mounting Type	Surface Mount	Through Hole	Surface Mount	Surface Mount	Through Hole
Size / Dimension	0.475" L x 0.460" W (12.07mm x 11.68mm)	0.500" L x 0.350" W (12.70mm x 8.89mm)	0.300" L x 0.300" W (7.62mm x 7.62mm)	0.475" L x 0.460" W (12.07mm x 11.68mm)	0.500" L x 0.350" W (12.70mm x 8.89mm)
Height - Seated (Max)	0.340" (8.64mm)	0.250" (6.35mm)	0.215" (5.46mm)	0.340" (8.64mm)	0.250" (6.35mm)
