Pulse Electronics NMO150/450/758SF
- Part No.:
- NMO150/450/758SF
- Manufacturer:
- Pulse Electronics
- Category:
- RF Antennas
- Package:
- Datasheet:
-
NMO150/450/758SF.pdf
- Description:
- ANTENNA TRIBAND 150/450/758MHZ
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
NMO150/450/758SF Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Pulse Electronics
- Series:
- -
- Packaging:
- Bag
- Product Status:
- Active
- RF Family/Standard:
- Cellular
- Frequency Group:
- VHF (f < 300MHz), UHF (300MHz ~ 1GHz)
- Frequency (Center/Band):
- 162MHz, 475MHz, 810MHz
- Frequency Range:
- 150MHz ~ 174MHz, 430MHz ~ 520MHz, 750MHz ~ 870MHz
- Antenna Type:
- Whip, Straight
- Number of Bands:
- 3
- VSWR:
- 2, 2.5, 2
- Return Loss:
- -
- Gain:
- 5dBi, 4dBi
- Power - Max:
- -
- Features:
- -
- Termination:
- NMO
- Ingress Protection:
- IP67
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Connector Mount
- Height (Max):
- 17.470" (443.70mm)
- Applications:
- -
- Datasheet:
-
NMO150/450/758SF.pdf
| Image |  |
 |
 |
|
 |

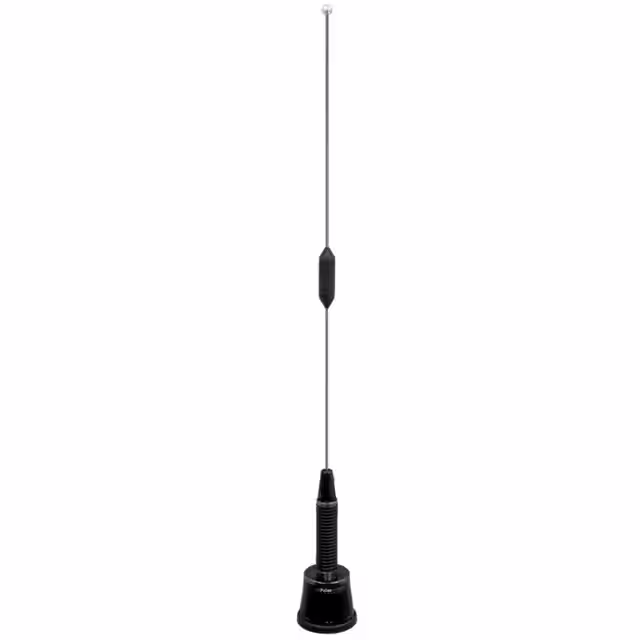

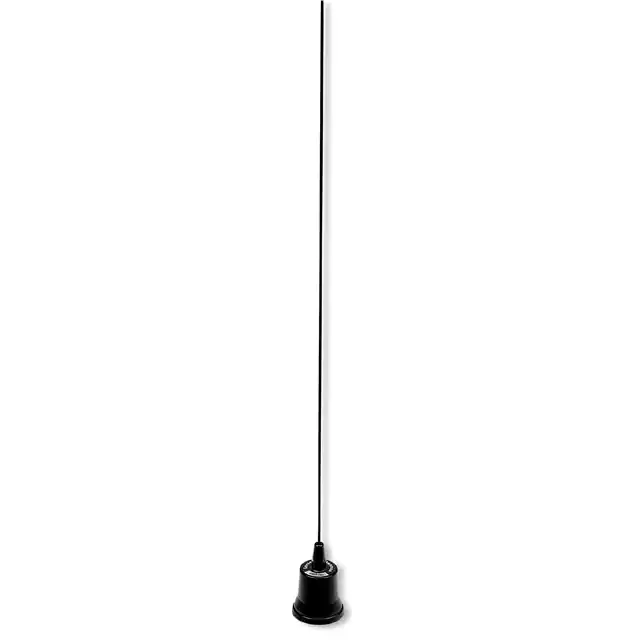

| Part Number | NMO150/450/758SF | NMO150/450/800 | NMO150/450/800SF | NMO150/450/758 | NMO150B |
| Manufacturer | Pulse Electronics | Pulse Electronics | Pulse Electronics | Pulse Electronics | Pulse Electronics |
| Series | - | - | - | - | - |
| Packaging | Bag | Bag | Bag | Bag | Bag |
| Product Status | Active | Active | Active | Active | Active |
| RF Family/Standard | Cellular | - | - | - | - |
| Frequency Group | VHF (f < 300MHz), UHF (300MHz ~ 1GHz) | Wide Band | UHF (300MHz ~ 1GHz) | Wide Band | VHF (f < 300MHz) |
| Frequency (Center/Band) | 162MHz, 475MHz, 810MHz | 157.5MHz, 460MHz, 873MHz | 157.5MHz, 460MHz, 873MHz | 162MHz, 475MHz, 810MHz | 159MHz |
| Frequency Range | 150MHz ~ 174MHz, 430MHz ~ 520MHz, 750MHz ~ 870MHz | 150MHz ~ 165MHz, 450MHz ~ 470MHz, 806MHz ~ 940MHz | 150MHz ~ 165MHz, 450MHz ~ 470MHz, 806MHz ~ 940MHz | 150MHz ~ 174MHz, 430MHz ~ 520MHz, 750MHz ~ 870MHz | 144MHz ~ 174MHz |
| Antenna Type | Whip, Straight | Whip, Straight | Whip, Straight | Whip, Straight | Whip, Straight |
| Number of Bands | 3 | 3 | 3 | 3 | 1 |
| VSWR | 2, 2.5, 2 | - | - | 2, 2.5 | - |
| Return Loss | - | - | - | - | - |
| Gain | 5dBi, 4dBi | 2.14dBi | 2.14dBi | 0dBi, 5dBi, 4dBi | 5.14dBi |
| Power - Max | - | 100 W | 100 W | 100 W | 200 W |
| Features | - | - | - | - | - |
| Termination | NMO | NMO | NMO | NMO | NMO |
| Ingress Protection | IP67 | - | - | IP67 | - |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Mounting Type | Connector Mount | Magnetic | Magnetic | Magnetic | Magnetic |
| Height (Max) | 17.470" (443.70mm) | 16.500" (419.10mm) | 16.500" (419.10mm) | 17.815" (452.50mm) | 51.496" (130.80cm) |
| Applications | - | - | General Purpose | - | - |
