Panasonic Electronic Components ECY-39RH104KV
- Part No.:
- ECY-39RH104KV
- Manufacturer:
- Panasonic Electronic Components
- Category:
- Ceramic Capacitors
- Package:
- Datasheet:
-
ECY-39RH104KV.pdf
- Description:
- CAP CER 0.1UF 50V X5R 0612
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
ECY-39RH104KV Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Panasonic Electronic Components
- Series:
- ECY
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Obsolete
- Capacitance:
- 0.1 µF
- Tolerance:
- ±10%
- Voltage - Rated:
- 50V
- Temperature Coefficient:
- X5R
- Operating Temperature:
- -55°C ~ 85°C
- Features:
- Low ESL (Reverse Geometry)
- Ratings:
- -
- Applications:
- Bypass, Decoupling
- Failure Rate:
- -
- Mounting Type:
- Surface Mount, MLCC
- Package / Case:
- 0612 (1632 Metric)
- Size / Dimension:
- 0.063" L x 0.126" W (1.60mm x 3.20mm)
- Height - Seated (Max):
- -
- Thickness (Max):
- 0.037" (0.95mm)
- Lead Spacing:
- -
- Lead Style:
- -
- Datasheet:
-
ECY-39RH104KV.pdf

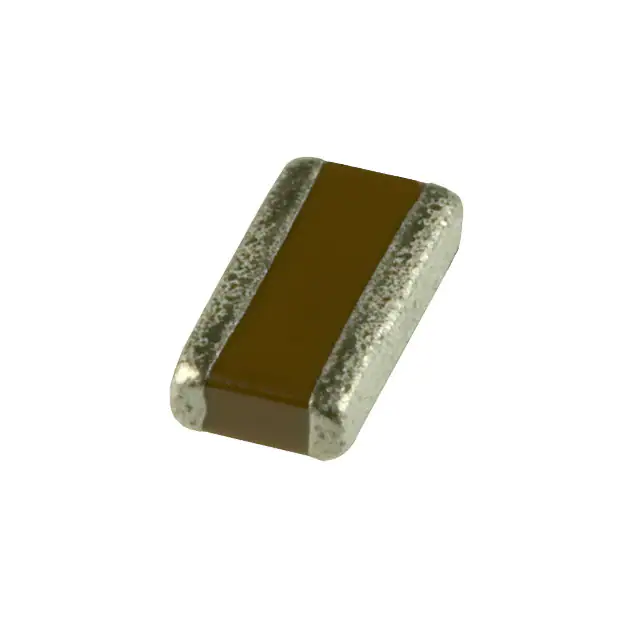

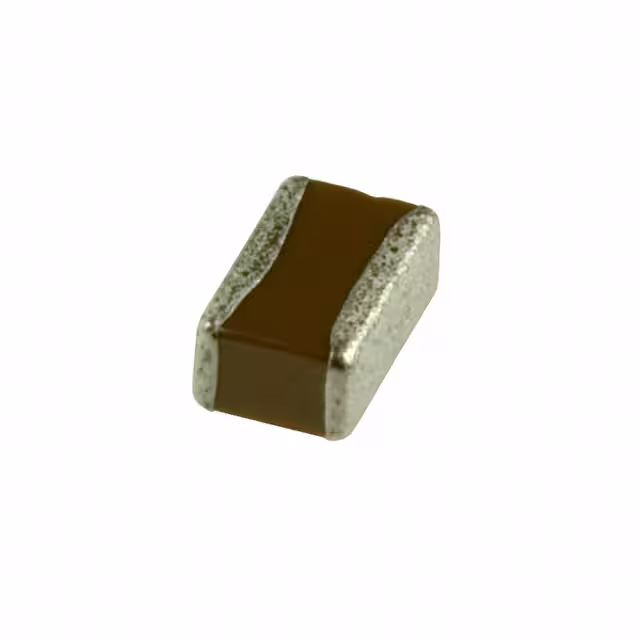

| Image | .jpg) |
|
|
|
.jpg) |
| Part Number | ECY-39RH104KV | ECY-39RH153KV | ECY-39RC334KV | ECY-39RC105KV | ECY-29RH103KV |
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Series | ECY | ECY | ECY | ECY | ECY |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 0.1 µF | 0.015 µF | 0.33 µF | 1 µF | 10000 pF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% |
| Voltage - Rated | 50V | 50V | 16V | 16V | 50V |
| Temperature Coefficient | X5R | X5R | X7R | X5R | X5R |
| Operating Temperature | -55°C ~ 85°C | -55°C ~ 85°C | -55°C ~ 125°C | -55°C ~ 85°C | -55°C ~ 85°C |
| Features | Low ESL (Reverse Geometry) | Low ESL (Reverse Geometry) | Low ESL (Reverse Geometry) | Low ESL (Reverse Geometry) | Low ESL (Reverse Geometry) |
| Ratings | - | - | - | - | - |
| Applications | Bypass, Decoupling | Bypass, Decoupling | Bypass, Decoupling | Bypass, Decoupling | Bypass, Decoupling |
| Failure Rate | - | - | - | - | - |
| Mounting Type | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC |
| Package / Case | 0612 (1632 Metric) | 0612 (1632 Metric) | 0612 (1632 Metric) | 0612 (1632 Metric) | 0508 (1220 Metric) |
| Size / Dimension | 0.063" L x 0.126" W (1.60mm x 3.20mm) | 0.063" L x 0.126" W (1.60mm x 3.20mm) | 0.063" L x 0.126" W (1.60mm x 3.20mm) | 0.063" L x 0.126" W (1.60mm x 3.20mm) | 0.049" L x 0.079" W (1.25mm x 2.00mm) |
| Height - Seated (Max) | - | - | - | - | - |
| Thickness (Max) | 0.037" (0.95mm) | 0.037" (0.95mm) | 0.037" (0.95mm) | 0.037" (0.95mm) | 0.037" (0.95mm) |
| Lead Spacing | - | - | - | - | - |
| Lead Style | - | - | - | - | - |
