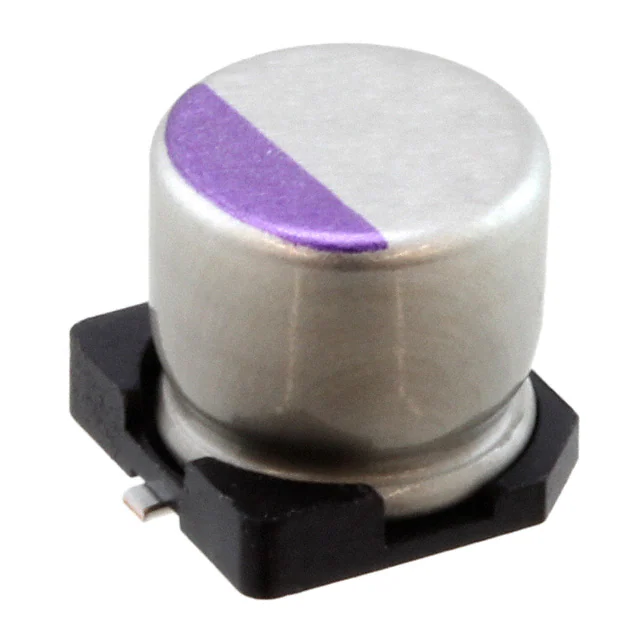

Panasonic Electronic Components 10SVPE220M
- Part No.:
- 10SVPE220M
- Manufacturer:
- Panasonic Electronic Components
- Category:
- Aluminum - Polymer Capacitors
- Package:
- Datasheet:
-
10SVPE220M.pdf
- Description:
- CAP ALUM POLY 220UF 20% 10V SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
10SVPE220M Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Panasonic Electronic Components
- Series:
- OS-CON™, SVPE
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Type:
- Polymer
- Capacitance:
- 220 µF
- Tolerance:
- ±20%
- Voltage - Rated:
- 10 V
- ESR (Equivalent Series Resistance):
- 20mOhm
- Lifetime @ Temp.:
- 2000 Hrs @ 105°C
- Operating Temperature:
- -55°C ~ 105°C
- Ratings:
- -
- Applications:
- General Purpose
- Features:
- -
- Ripple Current @ Low Frequency:
- 135 mA @ 120 Hz
- Ripple Current @ High Frequency:
- 2.7 A @ 100 kHz
- Impedance:
- -
- Lead Spacing:
- -
- Size / Dimension:
- 0.248" Dia (6.30mm)
- Height - Seated (Max):
- 0.236" (6.00mm)
- Surface Mount Land Size:
- 0.260" L x 0.260" W (6.60mm x 6.60mm)
- Mounting Type:
- Surface Mount
- Datasheet:
-
10SVPE220M.pdf
| Image |  |
| Part Number | 10SVPE220M |
| Manufacturer | Panasonic Electronic Components |
| Series | OS-CON™, SVPE |
| Packaging | Tape & Reel (TR) |
| Product Status | Active |
| Type | Polymer |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | 20mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 135 mA @ 120 Hz |
| Ripple Current @ High Frequency | 2.7 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
