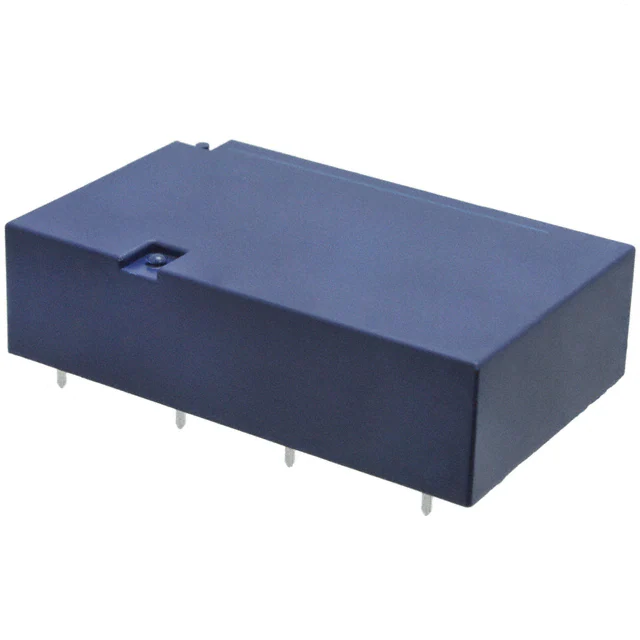

Panasonic Electric Works SFN4D-DC18V
- Part No.:
- SFN4D-DC18V
- Manufacturer:
- Panasonic Electric Works
- Category:
- Safety Relays
- Package:
- Description:
- SAFETY RELAY 6PST-4NO/2NC 8A
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
SFN4D-DC18V Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Panasonic Electric Works
- Series:
- SFN4D
- Packaging:
- Bulk
- Product Status:
- Active
- Mounting Type:
- Through Hole
- Coil Voltage:
- 18VDC
- Contact Form:
- 6PST-4NO/2NC (4 Form A, 2 Form B)
- Contact Rating (Current):
- 8 A
- Switching Voltage:
- 500VAC, 500VDC - Max
- Features:
- -
- Termination Style:
- PC Pin
- Must Operate Voltage:
- 13.5 VDC
- Must Release Voltage:
- 4.5 VDC
- Operating Temperature:
- 23 ms
- Contact Material:
- 23 ms
- Operate Time:
- -25°C ~ 92°C
- Release Time:
- Silver Tin Oxide (AgSnO), Gold (Au)
| Image |  |
|
 |
|
|
| Part Number | SFN4D-DC16V | SFN4D-DC5V | SFN4D-DC12V | SFN4D-DC24V | SFN4D-DC18V |
| Manufacturer | Panasonic Electric Works | Panasonic Electric Works | Panasonic Electric Works | Panasonic Electric Works | Panasonic Electric Works |
| Series | SFN4D | SFN4D | SFN4D | SFN4D | SFN4D |
| Packaging | Tube | Bulk | Tube | Tube | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Coil Voltage | 16VDC | 5VDC | 12VDC | 24VDC | 18VDC |
| Contact Form | 6PST-4NO/2NC (4 Form A, 2 Form B) | 6PST-4NO/2NC (4 Form A, 2 Form B) | 6PST-4NO/2NC (4 Form A, 2 Form B) | 6PST-4NO/2NC (4 Form A, 2 Form B) | 6PST-4NO/2NC (4 Form A, 2 Form B) |
| Contact Rating (Current) | 8 A | 8 A | 8 A | 8 A | 8 A |
| Switching Voltage | 500VAC, 500VDC - Max | 500VAC, 500VDC - Max | 500VAC, 500VDC - Max | 500VAC, 500VDC - Max | 500VAC, 500VDC - Max |
| Features | - | - | - | - | - |
| Termination Style | PC Pin | PC Pin | PC Pin | PC Pin | PC Pin |
| Must Operate Voltage | 3.75 VDC | 3.75 VDC | 9 VDC | 18 VDC | 13.5 VDC |
| Must Release Voltage | 4 VDC | 1.25 VDC | 3 VDC | 6 VDC | 4.5 VDC |
| Operating Temperature | 23 ms | 23 ms | 23 ms | 23 ms | 23 ms |
| Contact Material | 23 ms | 23 ms | 6 ms | 6 ms | 23 ms |
| Operate Time | -25°C ~ 92°C | -25°C ~ 92°C | -25°C ~ 92°C | -25°C ~ 92°C | -25°C ~ 92°C |
| Release Time | Silver Tin Oxide (AgSnO), Gold (Au) | Silver Tin Oxide (AgSnO), Gold (Au) | Silver Tin Oxide (AgSnO), Gold (Au) | Silver Tin Oxide (AgSnO), Gold (Au) | Silver Tin Oxide (AgSnO), Gold (Au) |
