Panasonic Electric Works AQS221FN2S
- Part No.:
- AQS221FN2S
- Manufacturer:
- Panasonic Electric Works
- Category:
- Solid State Relays (SSR)

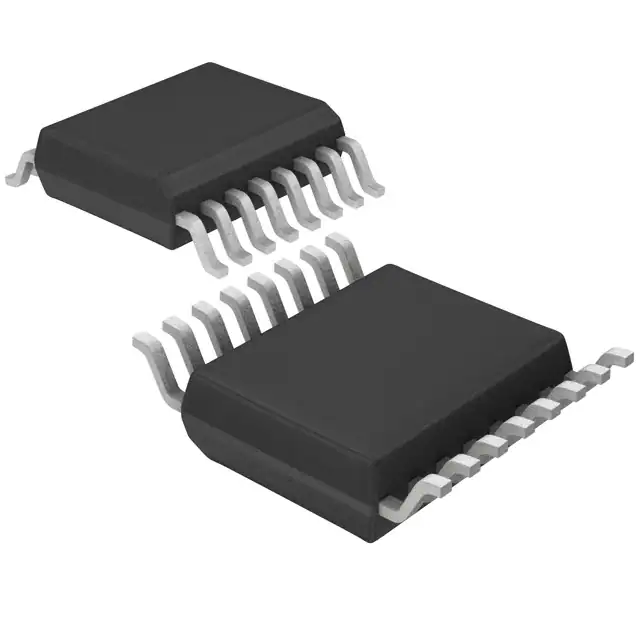

- Package:
- 16-SOIC (0.173", 4.40mm Width)
- Datasheet:
-
AQS221FN2S.pdf
- Description:
- SSR RELAY SPST-NO 60MA 0-40V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
AQS221FN2S Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Panasonic Electric Works
- Series:
- PhotoMOS™ AQS
- Packaging:
- Tube
- Product Status:
- Obsolete
- Mounting Type:
- Surface Mount
- Circuit:
- SPST-NO (1 Form A) x 4
- Output Type:
- AC, DC (RF)
- Voltage - Input:
- 1.3VDC
- Voltage - Load:
- 0 V ~ 40 V
- Load Current:
- 60 mA
- On-State Resistance (Max):
- 12.5 Ohms
- Termination Style:
- Gull Wing
- Operating Temperature:
- -40°C ~ 85°C
- Supplier Device Package:
- 16-SOP
- Approval Agency:
- BSI, CSA, TUV, UR
- Grade:
- -
- Qualification:
- -
- Datasheet:
-
AQS221FN2S.pdf
| Image |  |
 |
|
| Part Number | AQS221FN2S | AQS221FN2SX | AQS221FN2SZ |
| Manufacturer | Panasonic Electric Works | Panasonic Electric Works | Panasonic Electric Works |
| Series | PhotoMOS™ AQS | PhotoMOS™ AQS | PhotoMOS™ AQS |
| Packaging | Tube | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Obsolete | Obsolete | Obsolete |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Circuit | SPST-NO (1 Form A) x 4 | SPST-NO (1 Form A) x 4 | SPST-NO (1 Form A) x 4 |
| Output Type | AC, DC (RF) | AC, DC (RF) | AC, DC (RF) |
| Voltage - Input | 1.3VDC | 1.3VDC | 1.3VDC |
| Voltage - Load | 0 V ~ 40 V | 0 V ~ 40 V | 0 V ~ 40 V |
| Load Current | 60 mA | 60 mA | 60 mA |
| On-State Resistance (Max) | 12.5 Ohms | 12.5 Ohms | 12.5 Ohms |
| Termination Style | Gull Wing | Gull Wing | Gull Wing |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Supplier Device Package | 16-SOP | 16-SOP | 16-SOP |
| Approval Agency | BSI, CSA, TUV, UR | BSI, CSA, TUV, UR | BSI, CSA, TUV, UR |
| Grade | - | - | - |
| Qualification | - | - | - |
