Panasonic Electric Works AEV18012
- Part No.:
- AEV18012
- Manufacturer:
- Panasonic Electric Works
- Category:
- Automotive Relays
- Package:
- Datasheet:
-
AEV18012.pdf
- Description:
- RELAY AUTOMOTIVE SPST 80A 12V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
AEV18012 Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Panasonic Electric Works
- Series:
- AEV
- Packaging:
- Tray
- Product Status:
- Active
- Coil Type:
- Non Latching
- Coil Current:
- 353 mA
- Coil Voltage:
- 12VDC
- Contact Form:
- SPST-NO (1 Form A)
- Contact Rating (Current):
- 80 A
- Switching Voltage:
- 450VDC - Nom
- Must Operate Voltage:
- 9 VDC
- Must Release Voltage:
- 1 VDC
- Operate Time:
- 50 ms
- Release Time:
- 30 ms
- Features:
- -
- Mounting Type:
- Chassis Mount
- Termination Style:
- Stud
- Operating Temperature:
- -40°C ~ 80°C
- Datasheet:
-
AEV18012.pdf

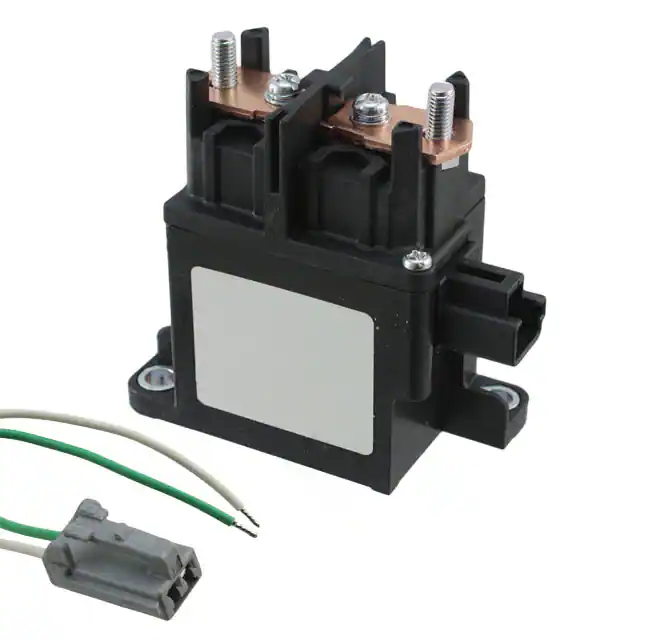

| Image |  |
 |
| Part Number | AEV18012 | AEV18012W |
| Manufacturer | Panasonic Electric Works | Panasonic Electric Works |
| Series | AEV | AEV |
| Packaging | Tray | Tray |
| Product Status | Active | Active |
| Coil Type | Non Latching | Non Latching |
| Coil Current | 353 mA | 353 mA |
| Coil Voltage | 12VDC | 12VDC |
| Contact Form | SPST-NO (1 Form A) | SPST-NO (1 Form A) |
| Contact Rating (Current) | 80 A | 80 A |
| Switching Voltage | 450VDC - Nom | 450VDC - Nom |
| Must Operate Voltage | 9 VDC | 9 VDC |
| Must Release Voltage | 1 VDC | 1 VDC |
| Operate Time | 50 ms | 50 ms |
| Release Time | 30 ms | 30 ms |
| Features | - | - |
| Mounting Type | Chassis Mount | Chassis Mount |
| Termination Style | Stud | Stud |
| Operating Temperature | -40°C ~ 80°C | -40°C ~ 80°C |
