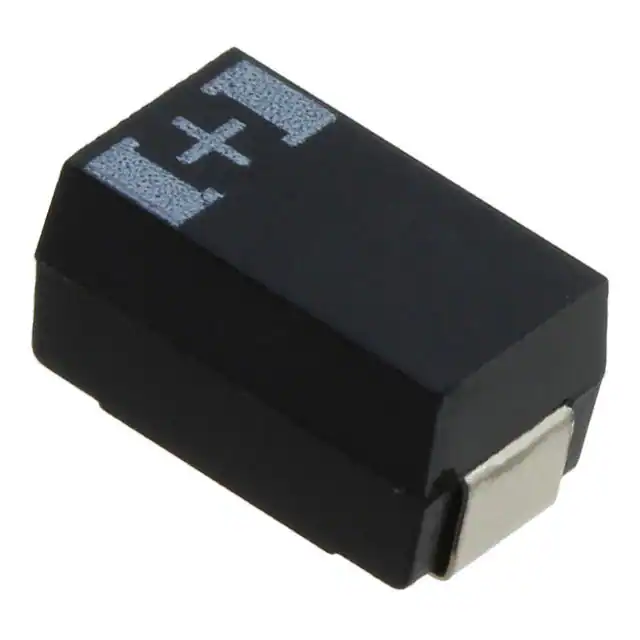

Panasonic Electronic Components 6TPE470M
- Part No.:
- 6TPE470M
- Manufacturer:
- Panasonic Electronic Components
- Category:
- Tantalum - Polymer Capacitors
- Package:
- 2917 (7343 Metric)
- Description:
- CAP TANT POLY 470UF 6.3V 2917
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
6TPE470M Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Panasonic Electronic Components
- Series:
- POSCAP™ TPE
- Package/Case:
- 2917 (7343 Metric)
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Capacitance:
- 470 µF
- Tolerance:
- ±20%
- Voltage - Rated:
- 6.3 V
- Type:
- Molded
- ESR (Equivalent Series Resistance):
- 25mOhm @ 100kHz
- Operating Temperature:
- -55°C ~ 105°C
- Lifetime @ Temp.:
- 2000 Hrs @ 105°C
- Mounting Type:
- Surface Mount
- Size / Dimension:
- 0.287" L x 0.169" W (7.30mm x 4.30mm)
- Height - Seated (Max):
- 0.157" (4.00mm)
- Lead Spacing:
- -
- Manufacturer Size Code:
- D4
- Ratings:
- -
- Features:
- General Purpose
| Image |  |
|
 |
|
|
| Part Number | 6TPE470M | 6TPE470MI | 6TPE470MZ | 6TPE470MW | 6TPE470MAZU |
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Series | POSCAP™ TPE | POSCAP™ TPE | POSCAP™ TPE | POSCAP™ TPE | POSCAP™ TPE |
| Package/Case | 2917 (7343 Metric) | 2917 (7343 Metric) | 2917 (7343 Metric) | 2917 (7343 Metric) | 2917 (7343 Metric) |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Obsolete |
| Capacitance | 470 µF | 470 µF | 470 µF | 470 µF | 470 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 6.3 V | 6.3 V | 6.3 V | 6.3 V | 6.3 V |
| Type | Molded | Molded | Molded | Molded | Molded |
| ESR (Equivalent Series Resistance) | 25mOhm @ 100kHz | 18mOhm @ 100kHz | 35mOhm @ 100kHz | 40mOhm @ 100kHz | 35mOhm @ 100kHz |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Size / Dimension | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Height - Seated (Max) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.063" (1.60mm) |
| Lead Spacing | - | - | - | - | - |
| Manufacturer Size Code | D4 | D4 | D4 | D4 | D15E |
| Ratings | - | - | - | - | - |
| Features | General Purpose | General Purpose | - | - | General Purpose |
