OSI Optoelectronics, Inc. SC-25D
- Part No.:
- SC-25D
- Manufacturer:
- OSI Optoelectronics, Inc.
- Category:
- Photodiodes
- Package:
- Radial
- Datasheet:
-
SC-25D.pdf
- Description:
- SENSOR PHOTODIODE 670NM RADIAL
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
SC-25D Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- OSI Optoelectronics, Inc.
- Series:
- -
- Package/Case:
- Radial
- Packaging:
- Canister
- Product Status:
- Active
- Wavelength:
- 670nm
- Color - Enhanced:
- -
- Spectral Range:
- -
- Diode Type:
- -
- Responsivity @ nm:
- 0.42 A/W @ 670nm
- Response Time:
- 5µs
- Voltage - DC Reverse (Vr) (Max):
- -
- Current - Dark (Typ):
- 100nA
- Active Area:
- 350mm²
- Viewing Angle:
- -
- Operating Temperature:
- 0°C ~ 70°C
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Through Hole
- Datasheet:
-
SC-25D.pdf

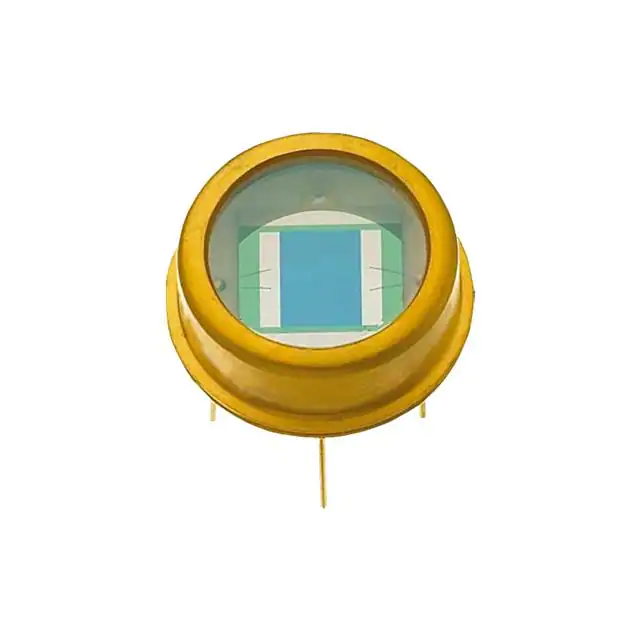

| Image |  |
 |
| Part Number | SC-25D | SC-10D |
| Manufacturer | OSI Optoelectronics, Inc. | OSI Optoelectronics, Inc. |
| Series | - | - |
| Package/Case | Radial | Radial |
| Packaging | Canister | Canister |
| Product Status | Active | Active |
| Wavelength | 670nm | 670nm |
| Color - Enhanced | - | - |
| Spectral Range | - | - |
| Diode Type | - | - |
| Responsivity @ nm | 0.42 A/W @ 670nm | 0.42 A/W @ 670nm |
| Response Time | 5µs | 1µs |
| Voltage - DC Reverse (Vr) (Max) | - | - |
| Current - Dark (Typ) | 100nA | 250nA |
| Active Area | 350mm² | 103mm² |
| Viewing Angle | - | - |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C |
| Grade | - | - |
| Qualification | - | - |
| Mounting Type | Through Hole | Through Hole |
