OptiFuse TSC-7A
- Part No.:
- TSC-7A
- Manufacturer:
- OptiFuse
- Category:
- Fuses
- Package:
- Datasheet:
-
TSC-7A.pdf
- Description:
- FUSE GLASS 7A 250VAC 5X20MM
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
TSC-7A Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- OptiFuse
- Package/Case:
- Series:
- TSC
- Packaging:
- Bulk
- Product Status:
- Active
- Mounting Type:
- Requires Holder
- Fuse Type:
- Cartridge, Glass
- Current Rating (Amps):
- 7 A
- Voltage Rating - AC:
- 250 V
- Voltage Rating - DC:
- -
- Response Time:
- Slow Blow
- Breaking Capacity @ Rated Voltage:
- 100A
- Melting I²t:
- 104.5
- Approval Agency:
- cULus, UL 248
- Operating Temperature:
- -55°C ~ 125°C
- Color:
- -
- Size / Dimension:
- 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
- Datasheet:
-
TSC-7A.pdf

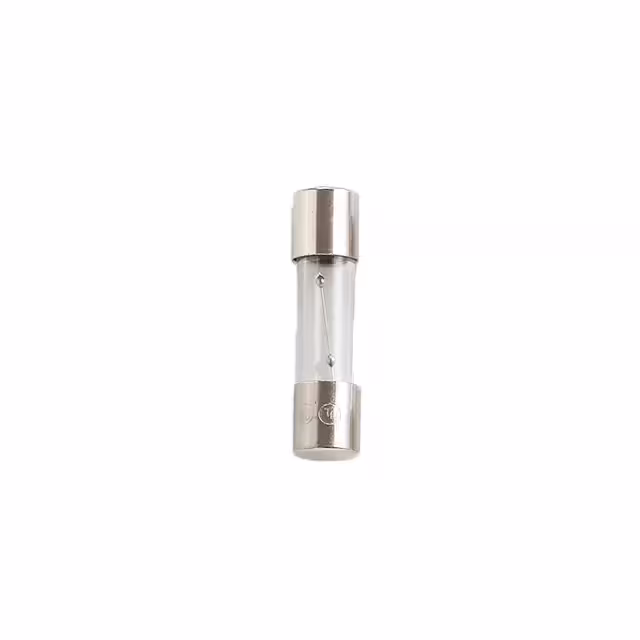

| Image |  |
 |
|
 |
 |
| Part Number | TSC-1A | TSC-4A | TSC-7A | TSC-3A | TSC-1.5A |
| Manufacturer | OptiFuse | OptiFuse | OptiFuse | OptiFuse | OptiFuse |
| Package/Case | |||||
| Series | TSC | TSC | TSC | TSC | TSC |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| Mounting Type | Requires Holder | Requires Holder | Requires Holder | Requires Holder | Requires Holder |
| Fuse Type | Cartridge, Glass | Cartridge, Glass | Cartridge, Glass | Cartridge, Glass | Cartridge, Glass |
| Current Rating (Amps) | 1 A | 4 A | 7 A | 3 A | 1.5 A |
| Voltage Rating - AC | 250 V | 250 V | 250 V | 250 V | 250 V |
| Voltage Rating - DC | - | - | - | - | - |
| Response Time | Slow Blow | Slow Blow | Slow Blow | Slow Blow | Slow Blow |
| Breaking Capacity @ Rated Voltage | 100A | 200A | 100A | 100A | 100A |
| Melting I²t | 2.242 | 30.8 | 104.5 | 14.15 | 8.44 |
| Approval Agency | cULus, UL 248 | cULus, UL 248 | cULus, UL 248 | cULus, UL 248 | cULus, UL 248 |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Color | - | - | - | - | - |
| Size / Dimension | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) |
