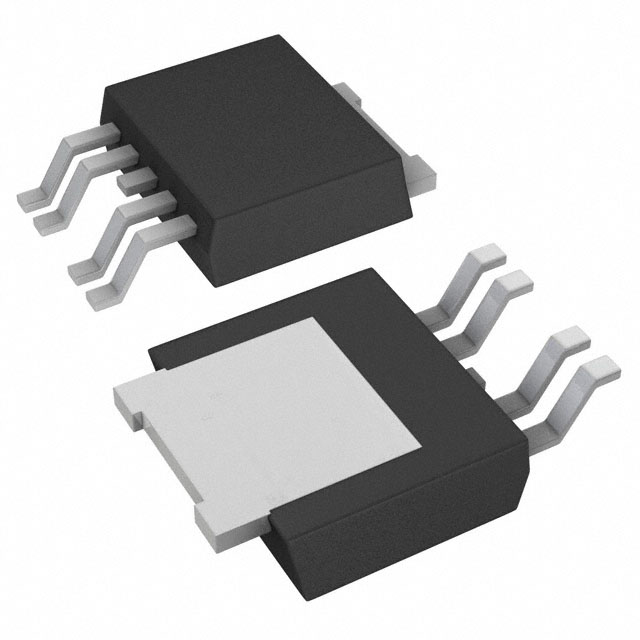

onsemi NCV5500DTADJRKG-IR01
- Part No.:
- NCV5500DTADJRKG-IR01
- Manufacturer:
- onsemi
- Package:
- TO-252-5, DPAK (4 Leads + Tab), TO-252AD
- Datasheet:
-
NCV5500DTADJRKG-IR01.pdf
- Description:
- LDO REGULATOR, 500 MA, LOW DROPO
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
NCV5500DTADJRKG-IR01 Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- onsemi
- Series:
- -
- Package/Case:
- TO-252-5, DPAK (4 Leads + Tab), TO-252AD
- Packaging:
- Bulk
- Product Status:
- Discontinued at Digi-Key
- Output Configuration:
- Positive
- Output Type:
- Adjustable
- Number of Regulators:
- 1
- Voltage - Input (Max):
- 16V
- Voltage - Output (Min/Fixed):
- 1.25V
- Voltage - Output (Max):
- 5V
- Voltage Dropout (Max):
- 0.7V @ 500mA
- Current - Output:
- 500mA
- Current - Quiescent (Iq):
- 500 µA
- Current - Supply (Max):
- 20 mA
- PSRR:
- 75dB ~ 70dB (120Hz)
- Control Features:
- Current Limit, Enable
- Protection Features:
- Over Current, Over Temperature, Reverse Polarity, Short Circuit
- Operating Temperature:
- -40°C ~ 125°C (TA)
- Grade:
- Automotive
- Qualification:
- AEC-Q100
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- DPAK-5
- Datasheet:
-
NCV5500DTADJRKG-IR01.pdf
| Image |  |
 |
| Part Number | NCV5500DTADJRKG | NCV5500DTADJRKG-IR01 |
| Manufacturer | onsemi | onsemi |
| Series | - | - |
| Package/Case | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | TO-252-5, DPAK (4 Leads + Tab), TO-252AD |
| Packaging | Tape & Reel (TR) | Bulk |
| Product Status | Active | Discontinued at Digi-Key |
| Output Configuration | Positive | Positive |
| Output Type | Adjustable | Adjustable |
| Number of Regulators | 1 | 1 |
| Voltage - Input (Max) | 16V | 16V |
| Voltage - Output (Min/Fixed) | 1.25V | 1.25V |
| Voltage - Output (Max) | 5V | 5V |
| Voltage Dropout (Max) | 0.7V @ 500mA | 0.7V @ 500mA |
| Current - Output | 500mA | 500mA |
| Current - Quiescent (Iq) | 500 µA | 500 µA |
| Current - Supply (Max) | 20 mA | 20 mA |
| PSRR | 75dB ~ 70dB (120hZ ~ 10kHz) | 75dB ~ 70dB (120Hz) |
| Control Features | Enable | Current Limit, Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity | Over Current, Over Temperature, Reverse Polarity, Short Circuit |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C (TA) |
| Grade | Automotive | Automotive |
| Qualification | AEC-Q100 | AEC-Q100 |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | DPAK-5 | DPAK-5 |
