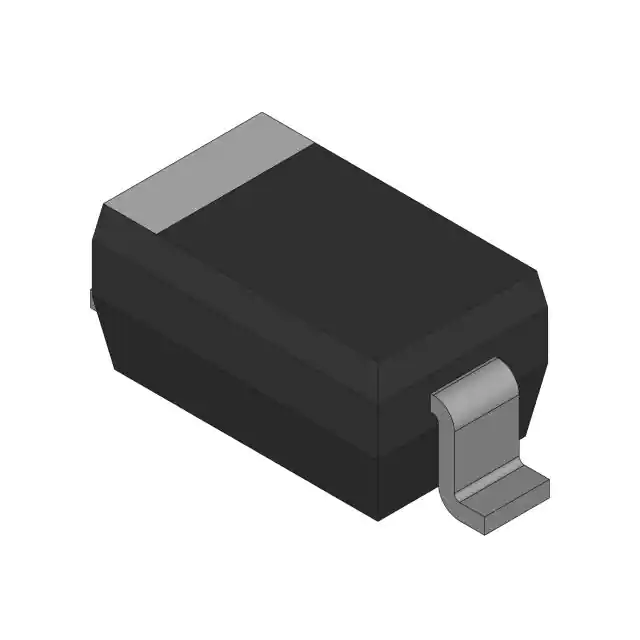

onsemi MMSZ5230B

Compare

Part No.:: MMSZ5230B

Manufacturer:: onsemi

Category:: Single Zener Diodes

Package:: SOD-123

Datasheet:: MMSZ5230B.pdf

Description:: DIODE ZENER 4.7V 500MW SOD123

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

MMSZ5230B Information

Specifications
Product Details
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: onsemi

Series:: -

Package/Case:: SOD-123

Packaging:: Tape & Reel (TR)

Product Status:: Obsolete

Voltage - Zener (Nom) (Vz):: 4.7 V

Tolerance:: ±5%

Power - Max:: 500 mW

Impedance (Max) (Zzt):: 19 Ohms

Current - Reverse Leakage @ Vr:: 5 µA @ 2 V

Voltage - Forward (Vf) (Max) @ If:: 900 mV @ 10 mA

Operating Temperature:: -55°C ~ 150°C

Grade:: -

Qualification:: -

Mounting Type:: Surface Mount

Supplier Device Package:: SOD-123

Datasheet:: MMSZ5230B.pdf

Part Number	MMSZ5230BT1G	MMSZ5230B	MMSZ5230BT1	MMSZ5230BT3
Manufacturer	onsemi	onsemi	onsemi	onsemi
Series	MMSZ52xxxT1G	-	-	-
Package/Case	SOD-123	SOD-123	SOD-123	SOD-123
Packaging	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)
Product Status	Active	Obsolete	Obsolete	Obsolete
Voltage - Zener (Nom) (Vz)	4.7 V	4.7 V	4.7 V	4.7 V
Tolerance	±5%	±5%	±5%	±5%
Power - Max	500 mW	500 mW	500 mW	500 mW
Impedance (Max) (Zzt)	19 Ohms	19 Ohms	19 Ohms	19 Ohms
Current - Reverse Leakage @ Vr	5 µA @ 2 V	5 µA @ 2 V	5 µA @ 2 V	5 µA @ 2 V
Voltage - Forward (Vf) (Max) @ If	900 mV @ 10 mA	900 mV @ 10 mA	900 mV @ 10 mA	900 mV @ 10 mA
Operating Temperature	-55°C ~ 150°C	-55°C ~ 150°C	-55°C ~ 150°C	-55°C ~ 150°C
Grade	-	-	-	-
Qualification	-	-	-	-
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Supplier Device Package	SOD-123	SOD-123	SOD-123	SOD-123
