Omron Electronics Inc-EMC Div G2RG-2A-X DC24
- Part No.:
- G2RG-2A-X DC24
- Manufacturer:
- Omron Electronics Inc-EMC Div
- Category:
- Power Relays, Over 2 Amps
- Package:
- Datasheet:
-
G2RG-2A-X DC24.pdf
- Description:
- RELAY GEN PURPOSE DPST 10A 24V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
G2RG-2A-X DC24 Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Omron Electronics Inc-EMC Div
- Series:
- G2RG-X
- Packaging:
- Tray
- Product Status:
- Active
- Mounting Type:
- Through Hole
- Coil Voltage:
- 24VDC
- Contact Form:
- DPST-NO (2 Form A)
- Contact Rating (Current):
- 10 A
- Switching Voltage:
- 500VDC - Max
- Load - Max Switching:
- 5000W
- Coil Current:
- 33.3 mA
- Coil Type:
- Non Latching
- Features:
- -
- Termination Style:
- PC Pin
- Seal Rating:
- Sealed - Flux Protection
- Coil Insulation:
- Class F
- Must Operate Voltage:
- 19.2 VDC
- Must Release Voltage:
- 2.4 VDC
- Operate Time:
- 15 ms
- Release Time:
- 5 ms
- Operating Temperature:
- -40°C ~ 85°C
- Contact Material:
- Silver Alloy, Cadmium Free
- Relay Type:
- General Purpose
- Grade:
- -
- Qualification:
- -
- Datasheet:
-
G2RG-2A-X DC24.pdf

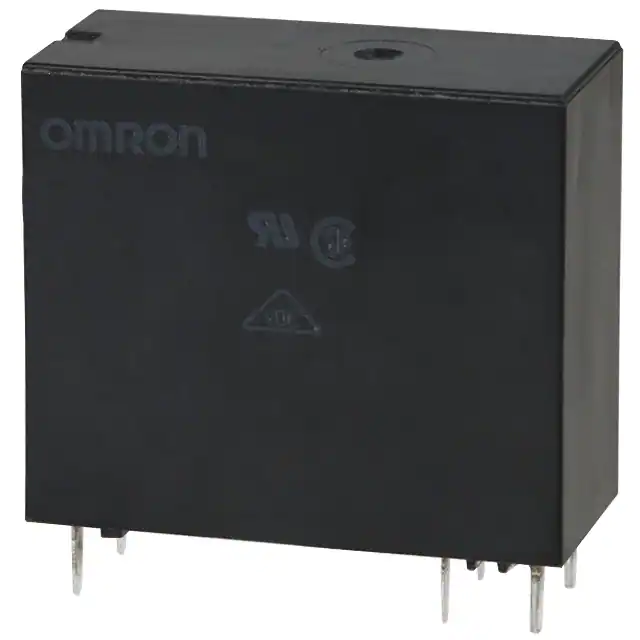

| Image |  |
 |
|
|
|
| Part Number | G2RG-2A-X DC24 | G2RG-2A4 DC24 | G2RG-2A-X DC12 | G2RG-2A4 DC12 | G2RG-2A4 DC5 |
| Manufacturer | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div |
| Series | G2RG-X | G2RG | G2RG-X | G2RG | G2RG |
| Packaging | Tray | Tray | Tray | Tray | Tube |
| Product Status | Active | Active | Active | Active | Active |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Coil Voltage | 24VDC | 24VDC | 12VDC | 12VDC | 5VDC |
| Contact Form | DPST-NO (2 Form A) | DPST-NO (2 Form A) | DPST-NO (2 Form A) | DPST-NO (2 Form A) | DPST-NO (2 Form A) |
| Contact Rating (Current) | 10 A | 8 A | 10 A | 8 A | 8 A |
| Switching Voltage | 500VDC - Max | 380VAC, 125VDC - Max | 500VDC - Max | 380VAC, 125VDC - Max | 380VAC, 125VDC - Max |
| Load - Max Switching | 5000W | 3040VA, 1000W | 5000W | 3040VA, 1000W | 3040VA, 1000W |
| Coil Current | 33.3 mA | 33.3 mA | 66.6 mA | 66.7 mA | 160 mA |
| Coil Type | Non Latching | Non Latching | Non Latching | Non Latching | Non Latching |
| Features | - | - | - | - | - |
| Termination Style | PC Pin | PC Pin | PC Pin | PC Pin | PC Pin |
| Seal Rating | Sealed - Flux Protection | Sealed - Fully | Sealed - Flux Protection | Sealed - Fully | Sealed - Fully |
| Coil Insulation | Class F | - | Class F | - | - |
| Must Operate Voltage | 19.2 VDC | 19.2 VDC | 9.6 VDC | 9.6 VDC | 4 VDC |
| Must Release Voltage | 2.4 VDC | 2.4 VDC | 1.2 VDC | 1.2 VDC | 0.5 VDC |
| Operate Time | 15 ms | 15 ms | 15 ms | 15 ms | 15 ms |
| Release Time | 5 ms | 5 ms | 5 ms | 5 ms | 5 ms |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 70°C | -40°C ~ 85°C | -40°C ~ 70°C | -40°C ~ 70°C |
| Contact Material | Silver Alloy, Cadmium Free | Silver Tin Oxide (AgSnO) | Silver Alloy, Cadmium Free | Silver Tin Oxide (AgSnO) | Silver Tin Oxide (AgSnO) |
| Relay Type | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
