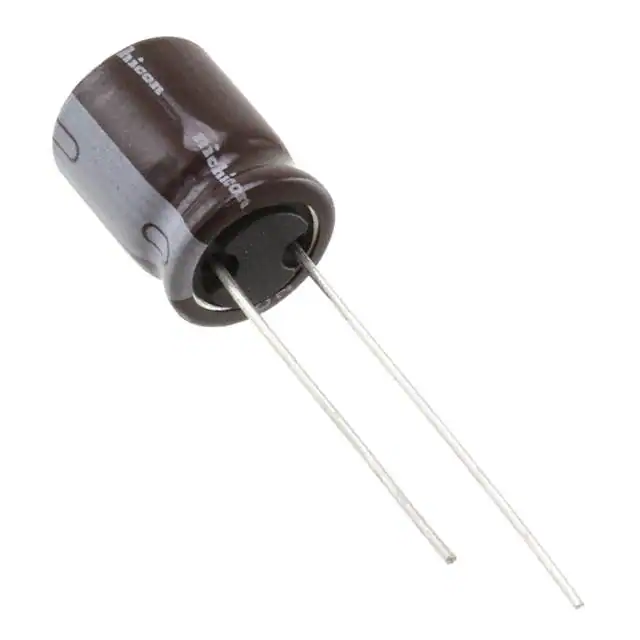

Nichicon UPA1A821MPD
- Part No.:
- UPA1A821MPD
- Manufacturer:
- Nichicon
- Category:
- Aluminum Electrolytic Capacitors
- Package:
- Datasheet:
-
UPA1A821MPD.pdf
- Description:
- CAP ALUM 820UF 20% 10V RADIAL TH
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
UPA1A821MPD Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Nichicon
- Package/Case:
- Series:
- UPA
- Packaging:
- Bulk
- Product Status:
- Active
- Capacitance:
- 820 µF
- Tolerance:
- ±20%
- Voltage - Rated:
- 10 V
- ESR (Equivalent Series Resistance):
- -
- Lifetime @ Temp.:
- 3000 Hrs @ 105°C
- Operating Temperature:
- -55°C ~ 105°C
- Polarization:
- Polar
- Ratings:
- -
- Applications:
- General Purpose
- Ripple Current @ Low Frequency:
- 645 mA @ 120 Hz
- Ripple Current @ High Frequency:
- 860 mA @ 100 kHz
- Impedance:
- 62 mOhms
- Lead Spacing:
- 0.138" (3.50mm)
- Size / Dimension:
- 0.315" Dia (8.00mm)
- Height - Seated (Max):
- 0.650" (16.50mm)
- Surface Mount Land Size:
- -
- Mounting Type:
- Through Hole
- Datasheet:
-
UPA1A821MPD.pdf
| Image |  |
 |
|
|
|
| Part Number | UPA1A821MPD | UPA1A821MPD6TD | UPA1A821MPD1TD | UPA1A821MPD1TA | UPA1A821MPD6 |
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Package/Case | |||||
| Series | UPA | UPA | UPA | UPA | UPA |
| Packaging | Bulk | Cut Tape (CT) | Cut Tape (CT) | Cut Tape (CT) | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 820 µF | 820 µF | 820 µF | 820 µF | 820 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 10 V | 10 V | 10 V | 10 V | 10 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C | 4000 Hrs @ 105°C | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C | 4000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 645 mA @ 120 Hz | 675 mA @ 120 Hz | 645 mA @ 120 Hz | 645 mA @ 120 Hz | 675 mA @ 120 Hz |
| Ripple Current @ High Frequency | 860 mA @ 100 kHz | 900 mA @ 100 kHz | 860 mA @ 100 kHz | 860 mA @ 100 kHz | 900 mA @ 100 kHz |
| Impedance | 62 mOhms | 63 mOhms | 62 mOhms | 62 mOhms | 63 mOhms |
| Lead Spacing | 0.138" (3.50mm) | 0.197" (5.00mm) | 0.138" (3.50mm) | 0.138" (3.50mm) | 0.197" (5.00mm) |
| Size / Dimension | 0.315" Dia (8.00mm) | 0.394" Dia (10.00mm) | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) | 0.551" (14.00mm) | 0.650" (16.50mm) | 0.650" (16.50mm) | 0.551" (14.00mm) |
| Surface Mount Land Size | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
