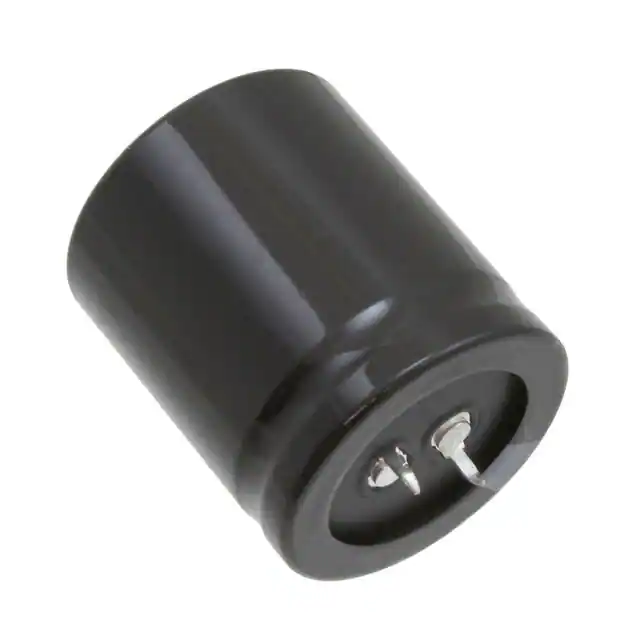

Nichicon LGUW6391MELC
- Part No.:
- LGUW6391MELC
- Manufacturer:
- Nichicon
- Category:
- Aluminum Electrolytic Capacitors
- Package:
- Datasheet:
-
LGUW6391MELC.pdf
- Description:
- CAP ALUM 390UF 20% 420V SNAP TH
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
LGUW6391MELC Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Nichicon
- Package/Case:
- Series:
- LGU
- Packaging:
- Bulk
- Product Status:
- Active
- Capacitance:
- 390 µF
- Tolerance:
- ±20%
- Voltage - Rated:
- 420 V
- ESR (Equivalent Series Resistance):
- -
- Lifetime @ Temp.:
- 3000 Hrs @ 105°C
- Operating Temperature:
- -25°C ~ 105°C
- Polarization:
- Polar
- Ratings:
- -
- Applications:
- General Purpose
- Ripple Current @ Low Frequency:
- 1.55 A @ 120 Hz
- Ripple Current @ High Frequency:
- 2.2165 A @ 50 kHz
- Impedance:
- -
- Lead Spacing:
- 0.394" (10.00mm)
- Size / Dimension:
- 1.378" Dia (35.00mm)
- Height - Seated (Max):
- 1.575" (40.00mm)
- Surface Mount Land Size:
- -
- Mounting Type:
- Through Hole
- Datasheet:
-
LGUW6391MELC.pdf
| Image |  |
| Part Number | LGUW6391MELC |
| Manufacturer | Nichicon |
| Package/Case | |
| Series | LGU |
| Packaging | Bulk |
| Product Status | Active |
| Capacitance | 390 µF |
| Tolerance | ±20% |
| Voltage - Rated | 420 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.55 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.2165 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
