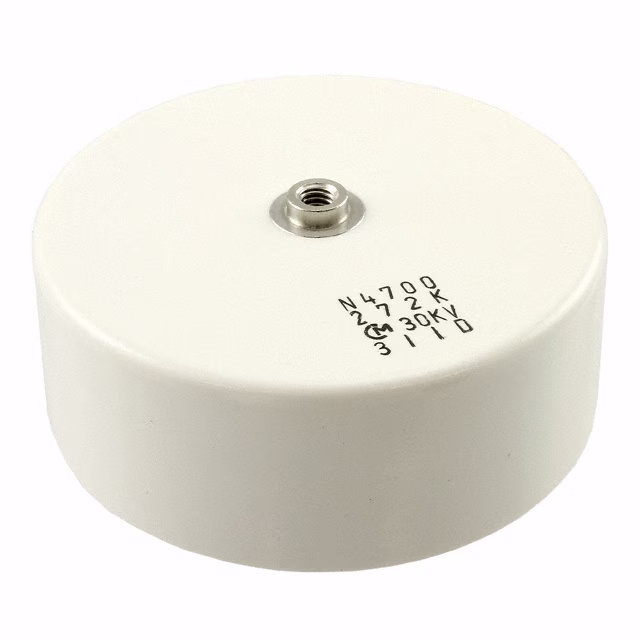

Murata Electronics DHS4E4F272MTXB
- Part No.:
- DHS4E4F272MTXB
- Manufacturer:
- Murata Electronics
- Category:
- Ceramic Capacitors
- Package:
- Datasheet:
-
DHS4E4F272MTXB.pdf
- Description:
- CAP CER 2700PF 30KV N4700 DISK
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
DHS4E4F272MTXB Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Murata Electronics
- Series:
- DHS
- Packaging:
- Bulk
- Product Status:
- Obsolete
- Capacitance:
- 2700 pF
- Tolerance:
- ±20%
- Voltage - Rated:
- 30000V (30kV)
- Temperature Coefficient:
- N4700
- Operating Temperature:
- 20°C ~ 85°C
- Features:
- High Voltage
- Ratings:
- -
- Applications:
- General Purpose
- Failure Rate:
- -
- Mounting Type:
- Requires Holder
- Package / Case:
- Disk, Metal Fitting - Threaded
- Size / Dimension:
- 2.362" Dia (60.00mm)
- Height - Seated (Max):
- 0.945" (24.00mm)
- Thickness (Max):
- -
- Lead Spacing:
- -
- Lead Style:
- -
- Datasheet:
-
DHS4E4F272MTXB.pdf
| Image |  |
| Part Number | DHS4E4F272MTXB |
| Manufacturer | Murata Electronics |
| Series | DHS |
| Packaging | Bulk |
| Product Status | Obsolete |
| Capacitance | 2700 pF |
| Tolerance | ±20% |
| Voltage - Rated | 30000V (30kV) |
| Temperature Coefficient | N4700 |
| Operating Temperature | 20°C ~ 85°C |
| Features | High Voltage |
| Ratings | - |
| Applications | General Purpose |
| Failure Rate | - |
| Mounting Type | Requires Holder |
| Package / Case | Disk, Metal Fitting - Threaded |
| Size / Dimension | 2.362" Dia (60.00mm) |
| Height - Seated (Max) | 0.945" (24.00mm) |
| Thickness (Max) | - |
| Lead Spacing | - |
| Lead Style | - |
