Microchip Technology 090-02984-008
- Part No.:
- 090-02984-008
- Manufacturer:
- Microchip Technology
- Category:
- Oscillators
- Package:
- 12-DIP Module, 9 Leads
- Description:
- CHIP SCALE ATOMIC CLOCK
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
090-02984-008 Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Microchip Technology
- Series:
- SA.45s CSAC
- Package/Case:
- 12-DIP Module, 9 Leads
- Packaging:
- Tray
- Product Status:
- Active
- Base Resonator:
- Crystal
- Type:
- Atomic
- Frequency:
- -
- Function:
- -
- Output:
- CMOS
- Voltage - Supply:
- 3.3V
- Frequency Stability:
- -
- Absolute Pull Range (APR):
- -
- Operating Temperature:
- -
- Spread Spectrum Bandwidth:
- -
- Current - Supply (Max):
- -
- Ratings:
- -
- Mounting Type:
- Through Hole
- Supplier Device Package:
- -
- Size / Dimension:
- 1.600" L x 1.390" W (40.64mm x 35.31mm)
- Height - Seated (Max):
- 0.460" (11.68mm)

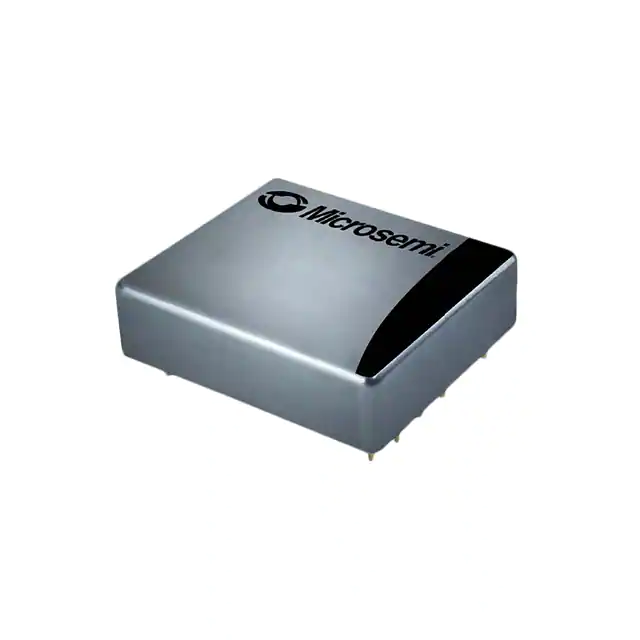

| Image |  |
 |
|
|
|
| Part Number | 090-02984-001 | 090-02789-001 | 090-02984-003 | 090-03054-000 | 090-02984-008 |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Series | SA.45s CSAC | SA.45s CSAC | SA.45s CSAC | Quantum™ LN CSAC | SA.45s CSAC |
| Package/Case | 12-DIP Module, 9 Leads | 12-DIP Module, 9 Leads | 12-DIP Module, 9 Leads | Module | 12-DIP Module, 9 Leads |
| Packaging | Bulk | Tray | Bulk | Bulk | Tray |
| Product Status | Active | Active | Active | Active | Active |
| Base Resonator | Crystal | Crystal | Crystal | Crystal | Crystal |
| Type | Atomic | Atomic | Atomic | Atomic | Atomic |
| Frequency | 10 MHz | 10 MHz | 16.384 MHz | 10 MHz | - |
| Function | - | - | - | - | - |
| Output | CMOS | CMOS | CMOS | Sine Wave | CMOS |
| Voltage - Supply | 3.3V ~ 10V | 3.3V | 3.3V | 3.3V | 3.3V |
| Frequency Stability | ±0.5ppb | ±500ppt | ±0.5ppb | ±5ppb | - |
| Absolute Pull Range (APR) | - | - | - | - | - |
| Operating Temperature | -10°C ~ 70°C | -10°C ~ 70°C | -10°C ~ 70°C | -10°C ~ 70°C | - |
| Spread Spectrum Bandwidth | - | - | - | - | - |
| Current - Supply (Max) | - | - | - | - | - |
| Ratings | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 1.600" L x 1.390" W (40.64mm x 35.31mm) | 1.600" L x 1.390" W (40.64mm x 35.31mm) | 1.600" L x 1.390" W (40.64mm x 35.31mm) | 2.00" L x 2.00" W (50.8mm x 50.8mm) | 1.600" L x 1.390" W (40.64mm x 35.31mm) |
| Height - Seated (Max) | 0.460" (11.68mm) | 0.460" (11.68mm) | 0.460" (11.68mm) | 0.715" (18.15mm) | 0.460" (11.68mm) |
