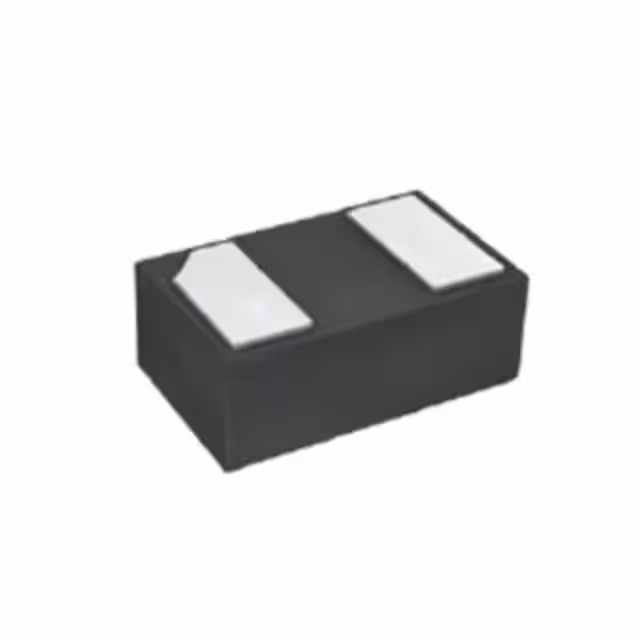

MDD ESD05D6BU
- Part No.:
- ESD05D6BU
- Manufacturer:
- MDD
- Category:
- TVS Diodes
- Package:
- 0201 (0603 Metric)
- Datasheet:
-
ESD05D6BU.pdf
- Description:
- TVS DIODE 5VWM 13VC DFN0603
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
ESD05D6BU Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- MDD
- Package/Case:
- 0201 (0603 Metric)
- Series:
- DFN0603
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Type:
- Zener
- Unidirectional Channels:
- -
- Bidirectional Channels:
- 1
- Voltage - Reverse Standoff (Typ):
- 5V (Max)
- Voltage - Breakdown (Min):
- 6V
- Voltage - Clamping (Max) @ Ipp:
- 13V
- Current - Peak Pulse (10/1000µs):
- 5A (8/20µs)
- Power - Peak Pulse:
- 100W
- Power Line Protection:
- No
- Applications:
- Telecom
- Capacitance @ Frequency:
- 0.25pF @ 1MHz
- Operating Temperature:
- -55°C ~ 125°C
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- DFN0603
- Datasheet:
-
ESD05D6BU.pdf
| Image |  |
| Part Number | ESD05D6BU |
| Manufacturer | MDD |
| Package/Case | 0201 (0603 Metric) |
| Series | DFN0603 |
| Packaging | Tape & Reel (TR) |
| Product Status | Active |
| Type | Zener |
| Unidirectional Channels | - |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | 13V |
| Current - Peak Pulse (10/1000µs) | 5A (8/20µs) |
| Power - Peak Pulse | 100W |
| Power Line Protection | No |
| Applications | Telecom |
| Capacitance @ Frequency | 0.25pF @ 1MHz |
| Operating Temperature | -55°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | DFN0603 |
