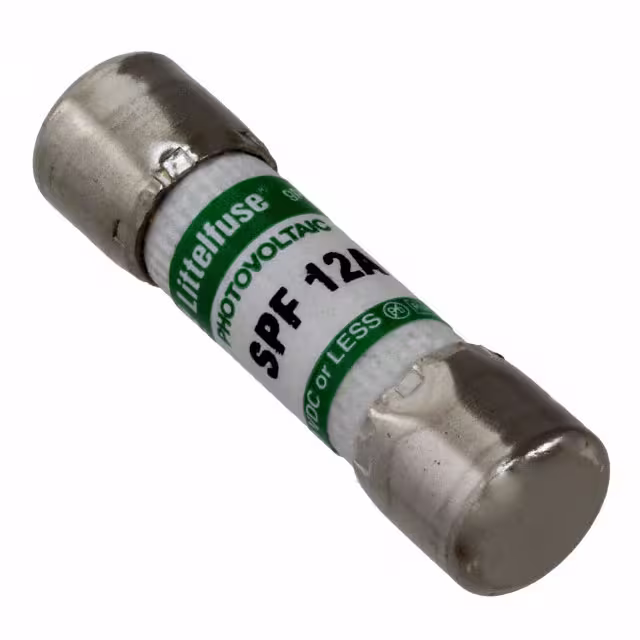

Littelfuse Inc. 0SPF012.HXR
- Part No.:
- 0SPF012.HXR
- Manufacturer:
- Littelfuse Inc.
- Category:
- Electrical, Specialty Fuses
- Package:
- 5AG, 10mm x 38mm (Midget)
- Datasheet:
-
0SPF012.HXR.pdf
- Description:
- FUSE CARTRIDGE 12A 1KVDC 5AG
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
0SPF012.HXR Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Littelfuse Inc.
- Series:
- POWR-GARD® SPF
- Package / Case:
- 5AG, 10mm x 38mm (Midget)
- Packaging:
- Bulk
- Product Status:
- Active
- Mounting Type:
- Through Hole
- Fuse Type:
- Cartridge
- Current Rating (Amps):
- 12A
- Voltage Rating - AC:
- -
- Voltage Rating - DC:
- 1 kVDC
- Response Time:
- Fast Blow
- Applications:
- Solar (Photovoltaic)
- Features:
- -
- Class:
- -
- Approval Agency:
- CE, CSA, UL
- Operating Temperature:
- -
- Breaking Capacity @ Rated Voltage:
- 20kA
- Size / Dimension:
- 0.406" Dia x 1.500" L (10.31mm x 38.10mm)
- Grade:
- -
- Qualification:
- -
- Datasheet:
-
0SPF012.HXR.pdf
| Image |  |
 |
 |
 |
| Part Number | 0SPF012.HXR | 0SPF012.T | 0SPF012.H | 0SPF012.TXS |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Series | POWR-GARD® SPF | POWR-GARD® SPF | POWR-GARD® SPF | POWR-GARD® SPF-S |
| Package / Case | 5AG, 10mm x 38mm (Midget) | 5AG, 10mm x 38mm (Midget) | 5AG, 10mm x 38mm (Midget) | 5AG, 10mm x 38mm (Midget) |
| Packaging | Bulk | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active | Active |
| Mounting Type | Through Hole | Requires Holder | Requires Holder | Requires Holder |
| Fuse Type | Cartridge | Cartridge | Cartridge | Cartridge |
| Current Rating (Amps) | 12A | 12A | 12A | 12A |
| Voltage Rating - AC | - | - | - | - |
| Voltage Rating - DC | 1 kVDC | 1 kVDC | 1 kVDC | 1 kVDC |
| Response Time | Fast Blow | Fast Blow | Fast Blow | Fast Blow |
| Applications | Solar (Photovoltaic) | Solar (Photovoltaic) | Solar (Photovoltaic) | Solar (Photovoltaic) |
| Features | - | - | - | - |
| Class | - | - | - | - |
| Approval Agency | CE, CSA, UL | CE, CSA, UL, VDE | CE, CSA, UL, VDE | CE, CSA, IEC, gPV, UL |
| Operating Temperature | - | - | - | - |
| Breaking Capacity @ Rated Voltage | 20kA | 20kA | 20kA | 20kA |
| Size / Dimension | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) |
| Grade | - | - | - | - |
| Qualification | - | - | - | - |
