Littelfuse Inc. 03453LS2H
- Part No.:
- 03453LS2H
- Manufacturer:
- Littelfuse Inc.
- Category:
- Fuseholders
- Package:
- Datasheet:
-
03453LS2H.pdf
- Description:
- FUSE HLDR CART 250V 20A PNL MNT
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
03453LS2H Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Littelfuse Inc.
- Series:
- 345
- Packaging:
- Bulk
- Product Status:
- Active
- Mounting Type:
- Panel Mount
- Fuse Size:
- 0.25" Dia x 1.26" L (6.35mm x 32mm)
- Current Rating (Amps):
- 20 A
- For Use With/Related Products:
- 3AG, 1/4" x 1-1/4" (SFE-20)
- Fuse Type:
- Cartridge
- Fuseholder Type:
- Holder
- Number of Circuits:
- 1
- Voltage:
- 250V
- Orientation:
- -
- Termination Style:
- Quick Connect - 0.187" (4.7mm)
- Contact Material:
- Copper Alloy
- Contact Finish:
- Tin
- Approval Agency:
- -
- Datasheet:
-
03453LS2H.pdf
| Image |  |
 |
 |
|
|

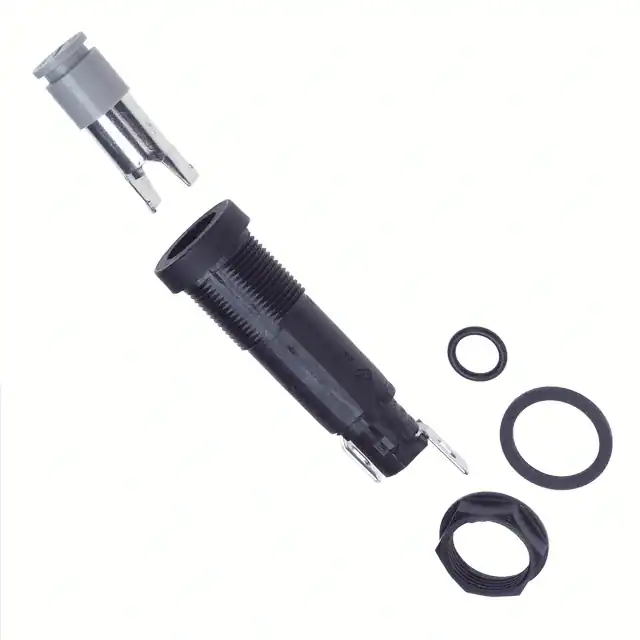

| Part Number | 03453LS2H | 03453LS2HXNP | 03453LS2HXHUA | 03453LS2HXN | 03453LS2HXBE |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Series | 345 | 345 | 345 | 345 | 345 |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| Mounting Type | Panel Mount | Panel Mount | Panel Mount | Panel Mount | Panel Mount |
| Fuse Size | 0.25" Dia x 1.26" L (6.35mm x 32mm) | 0.25" Dia x 1.26" L (6.35mm x 32mm) | 0.25" Dia x 1.26" L (6.35mm x 32mm) | 0.25" Dia x 1.26" L (6.35mm x 32mm) | 0.25" Dia x 1.26" L (6.35mm x 32mm) |
| Current Rating (Amps) | 20 A | 20 A | 20 A | 20 A | 20 A |
| For Use With/Related Products | 3AG, 1/4" x 1-1/4" (SFE-20) | 3AG, 1/4" x 1-1/4" (SFE-20) | 3AB, 3AG | 3AB, 3AG | 3AB, 3AG |
| Fuse Type | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge |
| Fuseholder Type | Holder | Holder | Holder | Holder | Holder |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 |
| Voltage | 250V | 250V | 250V | 250V | 250V |
| Orientation | - | - | Horizontal and Vertical | Horizontal and Vertical | Horizontal and Vertical |
| Termination Style | Quick Connect - 0.187" (4.7mm) | Quick Connect - 0.187" (4.7mm) | Solder Lug | Solder Lug | Solder Lug |
| Contact Material | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy |
| Contact Finish | Tin | Tin | Tin | Tin | Tin |
| Approval Agency | - | - | - | - | - |
