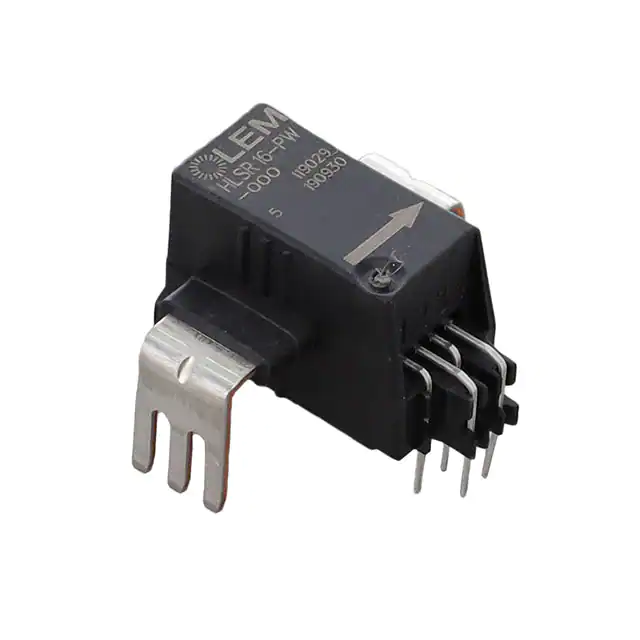

LEM USA Inc. HLSR 16-PW-000
- Part No.:
- HLSR 16-PW-000
- Manufacturer:
- LEM USA Inc.
- Category:
- Current Sensors
- Package:
- Module
- Datasheet:
-
HLSR 16-PW-000.pdf
- Description:
- DIGITAL OUTPUT OPEN LOOP 16A
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
HLSR 16-PW-000 Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- LEM USA Inc.
- Series:
- HLSR-PW
- Package/Case:
- Module
- Packaging:
- Bulk
- Product Status:
- Active
- For Measuring:
- AC/DC
- Sensor Type:
- Hall Effect, Open Loop
- Current - Sensing:
- 16A
- Number of Channels:
- 1
- Output:
- Ratiometric, Voltage
- Sensitivity:
- -
- Frequency:
- -
- Linearity:
- ±0.5%
- Accuracy:
- -
- Voltage - Supply:
- 4.5V ~ 5.5V
- Response Time:
- -
- Current - Supply (Max):
- 31mA
- Operating Temperature:
- -40°C ~ 105°C
- Grade:
- -
- Qualification:
- -
- Polarization:
- Bidirectional
- Mounting Type:
- Through Hole
- Supplier Device Package:
- -
- Datasheet:
-
HLSR 16-PW-000.pdf
| Image |  |
 |
|
|
| Part Number | HLSR 16-PW-000 | HLSR 16-P | HLSR 16-PW-081 | HLSR 16-PW-010 |
| Manufacturer | LEM USA Inc. | LEM USA Inc. | LEM USA Inc. | LEM USA Inc. |
| Series | HLSR-PW | HLSR | - | HLSR |
| Package/Case | Module | Module | - | Module |
| Packaging | Bulk | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active | Active |
| For Measuring | AC/DC | AC/DC | - | AC/DC |
| Sensor Type | Hall Effect, Open Loop | Open Loop | - | Open Loop |
| Current - Sensing | 16A | 16A | - | 16A |
| Number of Channels | 1 | 1 | - | 1 |
| Output | Ratiometric, Voltage | Voltage | - | Voltage |
| Sensitivity | - | 50mV/A | - | - |
| Frequency | - | DC ~ 400kHz | - | - |
| Linearity | ±0.5% | ±0.5% | - | ±0.5% |
| Accuracy | - | - | - | - |
| Voltage - Supply | 4.5V ~ 5.5V | 4.5V ~ 5.5V | - | 4.5V ~ 5.5V |
| Response Time | - | 2.5µs | - | - |
| Current - Supply (Max) | 31mA | 25mA | - | 31mA |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | - | -40°C ~ 105°C |
| Grade | - | - | - | - |
| Qualification | - | - | - | - |
| Polarization | Bidirectional | - | - | Bidirectional |
| Mounting Type | Through Hole | Through Hole | - | Through Hole |
| Supplier Device Package | - | - | - | - |
