KYOCERA AVX M39014/22-0794
- Part No.:
- M39014/22-0794
- Manufacturer:
- KYOCERA AVX
- Category:
- Ceramic Capacitors
- Package:
- Datasheet:
-
M39014/22-0794.pdf
- Description:
- CAP CER 0.1UF 50V X7R 2-DIP
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
M39014/22-0794 Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- KYOCERA AVX
- Series:
- Military, MIL-PRF-39014, CKR22
- Packaging:
- Tube
- Product Status:
- Active
- Capacitance:
- 0.1 µF
- Tolerance:
- ±10%
- Voltage - Rated:
- 50V
- Temperature Coefficient:
- X7R
- Operating Temperature:
- -55°C ~ 125°C
- Features:
- -
- Ratings:
- -
- Applications:
- High Reliability
- Failure Rate:
- R (0.01%)
- Mounting Type:
- Through Hole
- Package / Case:
- 2-DIP
- Size / Dimension:
- 0.260" L x 0.092" W (6.60mm x 2.34mm)
- Height - Seated (Max):
- 0.175" (4.45mm)
- Thickness (Max):
- -
- Lead Spacing:
- 0.325" (8.25mm)
- Lead Style:
- -
- Datasheet:
-
M39014/22-0794.pdf
| Image |  |
|
 |
 |
|

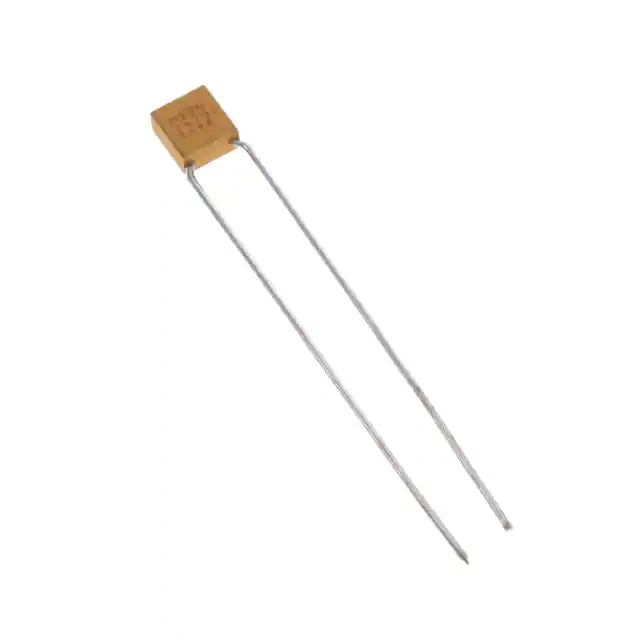

| Part Number | M39014/22-0794 | M39014/22-0856 | M39014/01-1496 | M39014/01-1593 | M39014/02-1350 |
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Series | Military, MIL-PRF-39014, CKR22 | Military, MIL-PRF-39014, CKR22 | Military, MIL-PRF-39014, CKR05 | Military, MIL-PRF-39014, CKR05 | Military, MIL-PRF-39014, CKR06 |
| Packaging | Tube | Tube | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 0.1 µF | 1 µF | 10000 pF | 0.1 µF | 0.1 µF |
| Tolerance | ±10% | ±10% | ±20% | ±10% | ±10% |
| Voltage - Rated | 50V | 50V | 100V | 50V | 100V |
| Temperature Coefficient | X7R | X7R | BX | BX | BX |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Features | - | - | - | - | - |
| Ratings | - | - | - | - | - |
| Applications | High Reliability | High Reliability | High Reliability | High Reliability | High Reliability |
| Failure Rate | R (0.01%) | R (0.01%) | P (0.1%) | S (0.001%) | S (0.001%) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | 2-DIP | 2-DIP | Radial | Radial | Radial |
| Size / Dimension | 0.260" L x 0.092" W (6.60mm x 2.34mm) | 0.260" L x 0.092" W (6.60mm x 2.34mm) | 0.190" L x 0.090" W (4.83mm x 2.29mm) | 0.190" L x 0.090" W (4.83mm x 2.29mm) | 0.290" L x 0.090" W (7.37mm x 2.29mm) |
| Height - Seated (Max) | 0.175" (4.45mm) | 0.175" (4.45mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.300" (7.62mm) |
| Thickness (Max) | - | - | - | - | - |
| Lead Spacing | 0.325" (8.25mm) | 0.325" (8.25mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) |
| Lead Style | - | - | Formed Leads | Formed Leads | Straight |
