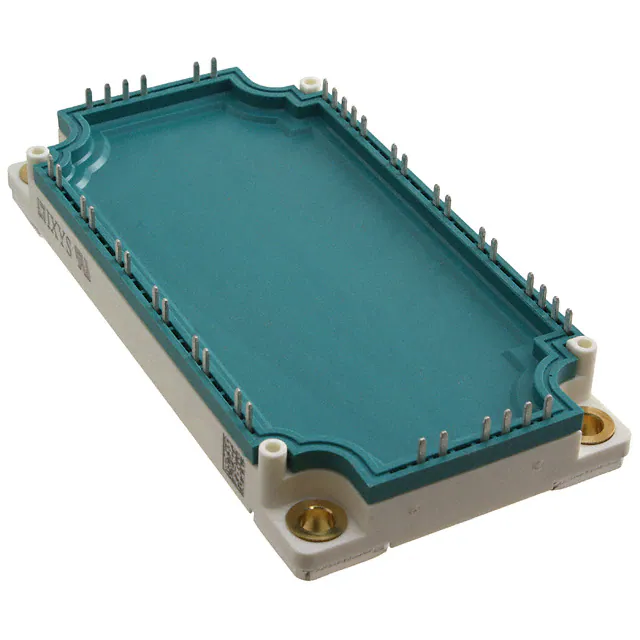

IXYS MIXA60WH1200TEH
- Part No.:
- MIXA60WH1200TEH
- Manufacturer:
- IXYS
- Category:
- IGBT Modules
- Package:
- E3
- Description:
- IGBT MODULE 1200V 85A 290W E3
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
MIXA60WH1200TEH Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- IXYS
- Series:
- -
- Package/Case:
- E3
- Packaging:
- Box
- Product Status:
- Active
- IGBT Type:
- -
- Configuration:
- Three Phase Inverter with Brake
- Voltage - Collector Emitter Breakdown (Max):
- 1200 V
- Current - Collector (Ic) (Max):
- 85 A
- Power - Max:
- 290 W
- Vce(on) (Max) @ Vge, Ic:
- 2.1V @ 15V, 55A
- Current - Collector Cutoff (Max):
- 500 µA
- Input Capacitance (Cies) @ Vce:
- -
- Input:
- Three Phase Bridge Rectifier
- NTC Thermistor:
- Yes
- Operating Temperature:
- -
- Mounting Type:
- Chassis Mount
- Supplier Device Package:
- E3
| Image |  |
| Part Number | MIXA60WH1200TEH |
| Manufacturer | IXYS |
| Series | - |
| Package/Case | E3 |
| Packaging | Box |
| Product Status | Active |
| IGBT Type | - |
| Configuration | Three Phase Inverter with Brake |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 85 A |
| Power - Max | 290 W |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 55A |
| Current - Collector Cutoff (Max) | 500 µA |
| Input Capacitance (Cies) @ Vce | - |
| Input | Three Phase Bridge Rectifier |
| NTC Thermistor | Yes |
| Operating Temperature | - |
| Mounting Type | Chassis Mount |
| Supplier Device Package | E3 |
