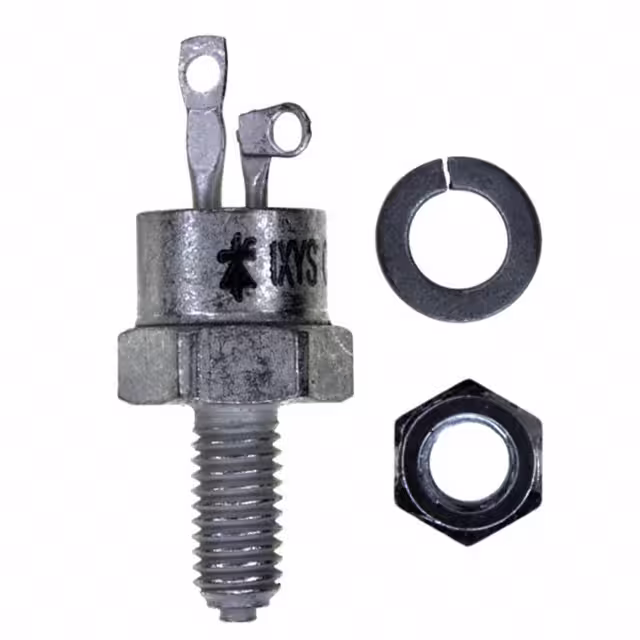

IXYS CS8-08IO2
- Part No.:
- CS8-08IO2
- Manufacturer:
- IXYS
- Category:
- SCRs
- Package:
- TO-208AB, TO-64-3, Stud
- Datasheet:
-
CS8-08IO2.pdf
- Description:
- SCR 800V 25A TO64
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
CS8-08IO2 Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- IXYS
- Series:
- -
- Package/Case:
- TO-208AB, TO-64-3, Stud
- Packaging:
- Bulk
- Product Status:
- Obsolete
- Voltage - Off State:
- 800 V
- Voltage - Gate Trigger (Vgt) (Max):
- 2.5 V
- Current - Gate Trigger (Igt) (Max):
- 30 mA
- Voltage - On State (Vtm) (Max):
- 1.6 V
- Current - On State (It (AV)) (Max):
- 16 A
- Current - On State (It (RMS)) (Max):
- 25 A
- Current - Hold (Ih) (Max):
- 80 mA
- Current - Off State (Max):
- 3 mA
- Current - Non Rep. Surge 50, 60Hz (Itsm):
- 250A, 270A
- SCR Type:
- Standard Recovery
- Operating Temperature:
- -40°C ~ 125°C
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Chassis, Stud Mount
- Supplier Device Package:
- TO-64
- Datasheet:
-
CS8-08IO2.pdf
| Image |  |
 |

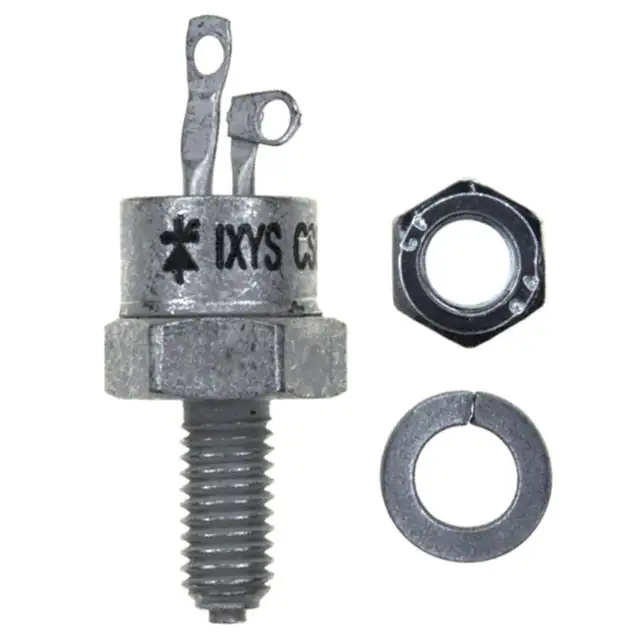

| Part Number | CS8-08IO2 | CS8-12IO2 |
| Manufacturer | IXYS | IXYS |
| Series | - | - |
| Package/Case | TO-208AB, TO-64-3, Stud | TO-208AB, TO-64-3, Stud |
| Packaging | Bulk | Bulk |
| Product Status | Obsolete | Obsolete |
| Voltage - Off State | 800 V | 1.2 kV |
| Voltage - Gate Trigger (Vgt) (Max) | 2.5 V | 2.5 V |
| Current - Gate Trigger (Igt) (Max) | 30 mA | 30 mA |
| Voltage - On State (Vtm) (Max) | 1.6 V | 1.6 V |
| Current - On State (It (AV)) (Max) | 16 A | 16 A |
| Current - On State (It (RMS)) (Max) | 25 A | 25 A |
| Current - Hold (Ih) (Max) | 80 mA | 80 mA |
| Current - Off State (Max) | 3 mA | 3 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 250A, 270A | 250A, 270A |
| SCR Type | Standard Recovery | Standard Recovery |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Grade | - | - |
| Qualification | - | - |
| Mounting Type | Chassis, Stud Mount | Chassis, Stud Mount |
| Supplier Device Package | TO-64 | TO-64 |
